Fuel Pump Relay: Service and Repair

Fuel Pump Relay

REMOVAL

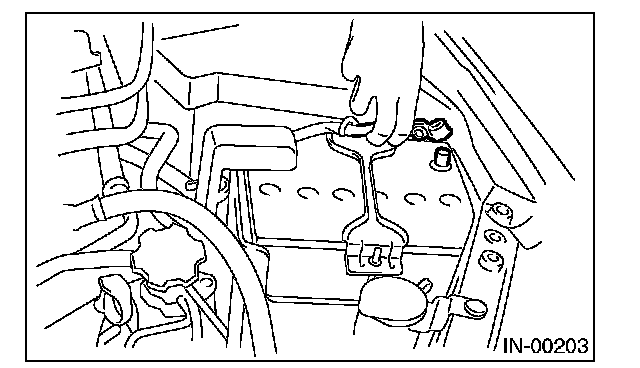

1. Disconnect the ground cable from battery.
2. Remove the glove box.

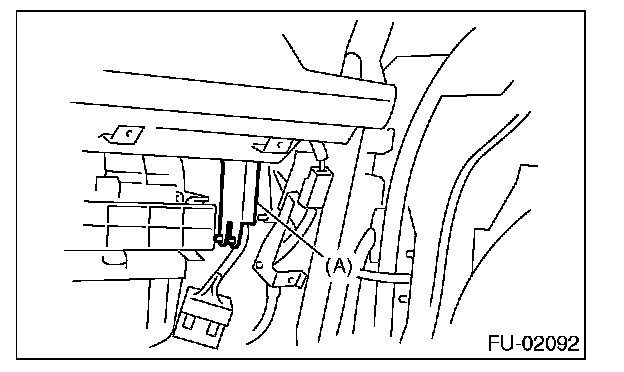

3. Remove the harness cover (A).

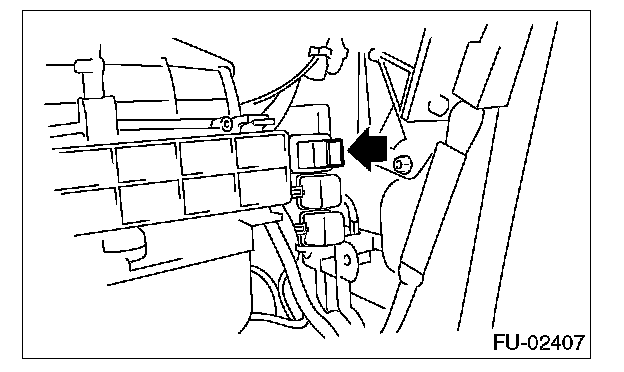

4. Disconnect the connector from fuel pump relay.

INSTALLATION
Install in the reverse order of removal.
