Disassembly and Assembly

Fuel Filler Pipe

DISASSEMBLY

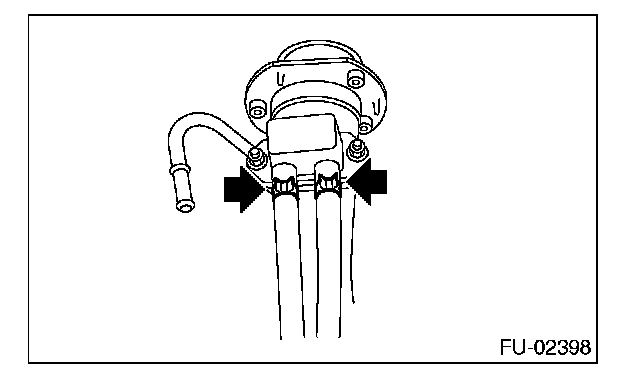

1. Move the clamp, and disconnect the evaporation hose from shut valve.

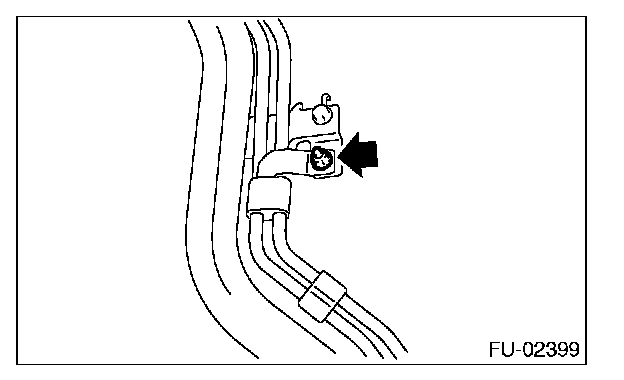

2. Remove the nut which holds the evaporation pipe assembly to fuel filler pipe.

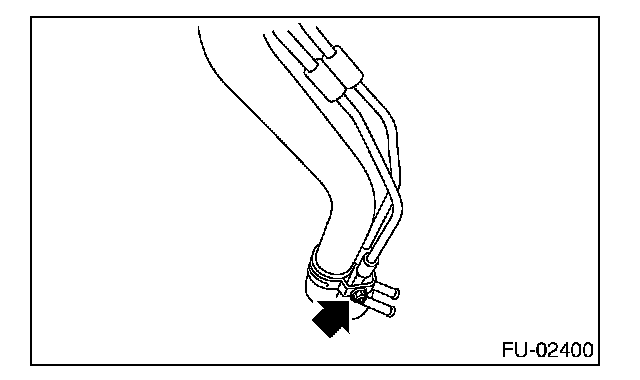

3. Remove the shut valve from fuel filler pipe.

ASSEMBLY

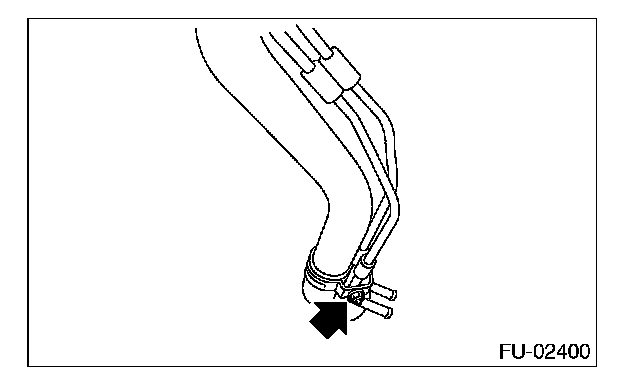

1. Install the shut valve to fuel filler pipe.

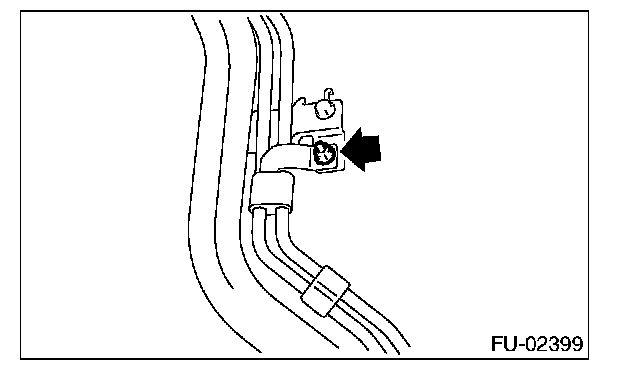

2. Tighten the nut which holds the evaporation pipe assembly to fuel filler pipe.

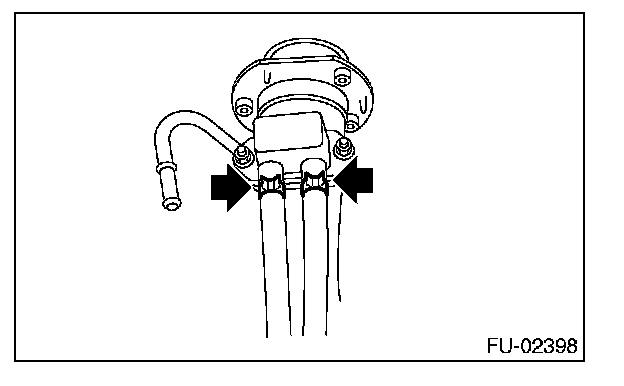

3. Connect the evaporation hose to shut valve.
