Evaporative Shut Valve: Service and Repair
Shut Valve
REMOVAL
1.
Remove the fuel filler pipe.
2.

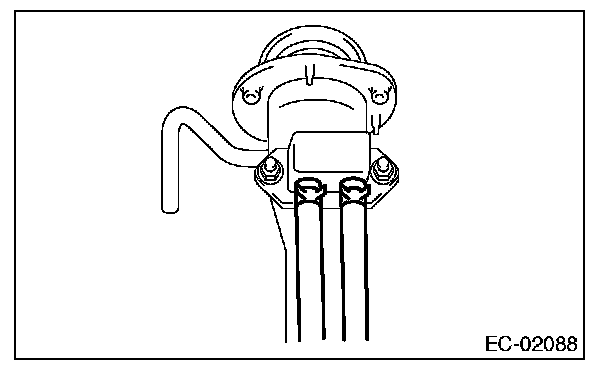

Disconnect the evaporation hoses from shut valve.
3.

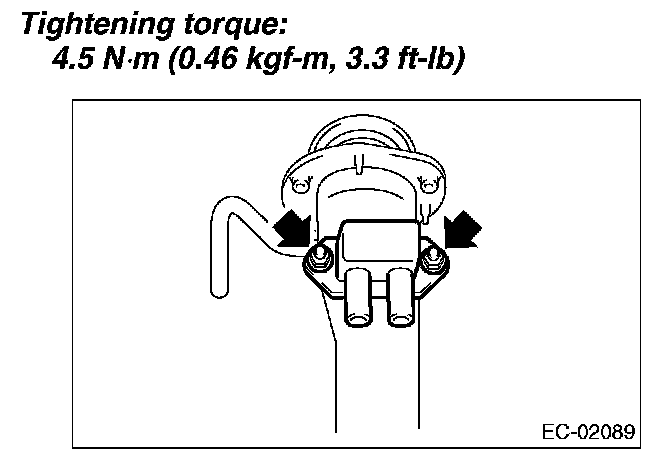

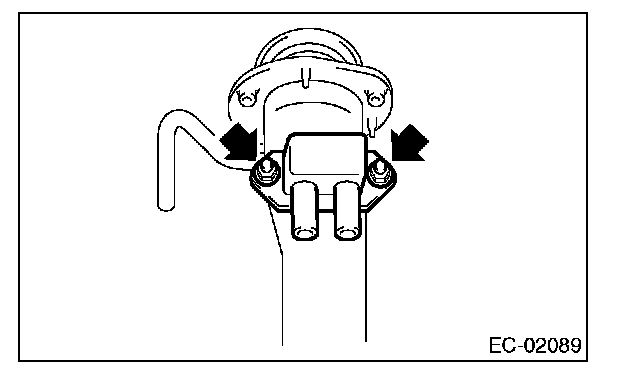

Remove the shut valve from fuel filler pipe.
INSTALLATION
Install in the reverse order of removal.
