Fuel Injector: Service and Repair

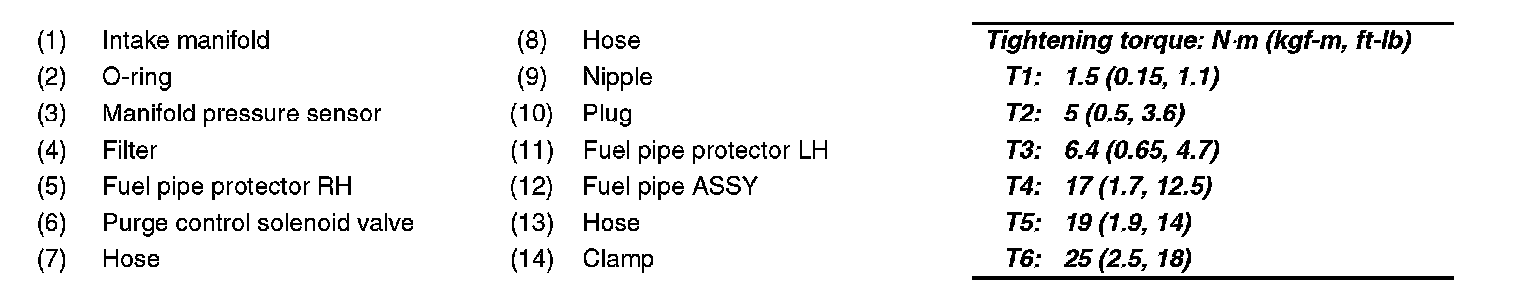

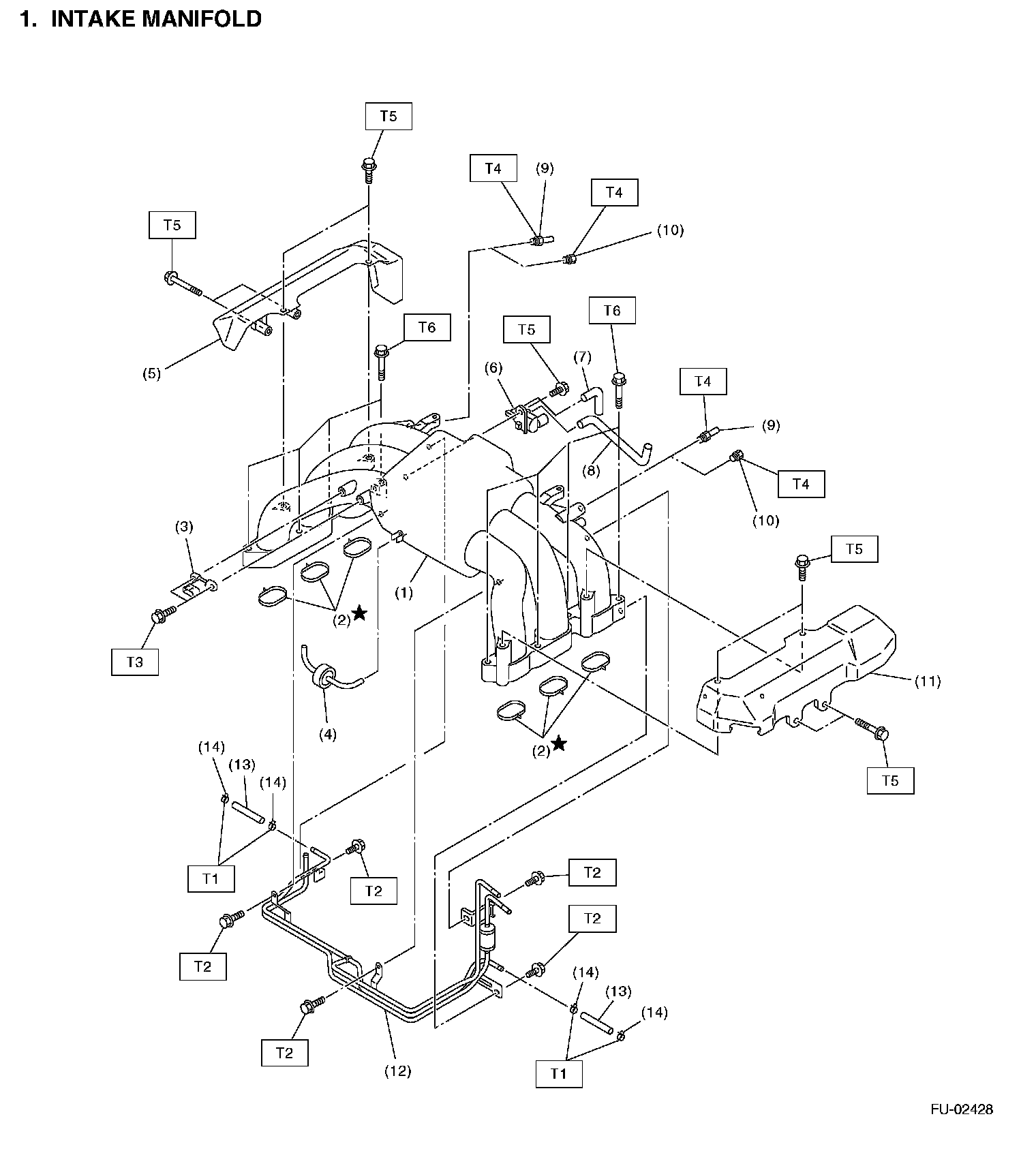

Intake Manifold (Part 1):

Intake Manifold (Part 2):

Fuel Injector Part 1:

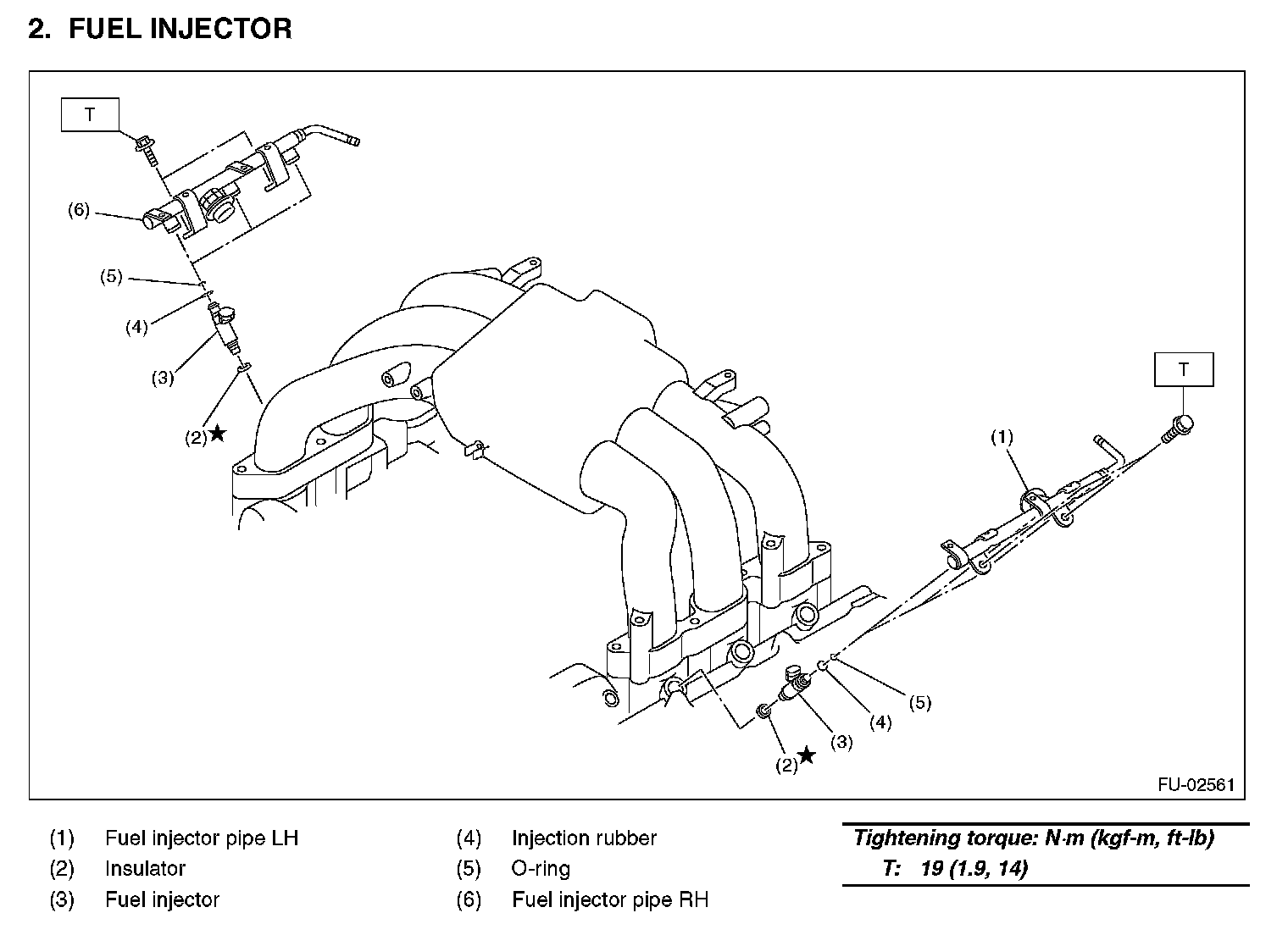

Fuel Injector

REMOVAL

RH SIDE
1. Remove the collector cover.
2. Release the fuel pressure.
3. Open the fuel filler flap lid, and remove the fuel filler cap.

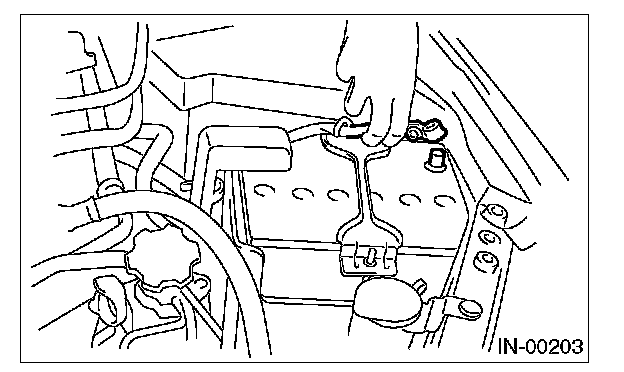

4. Disconnect the ground cable from battery.
5. Remove the air cleaner case.

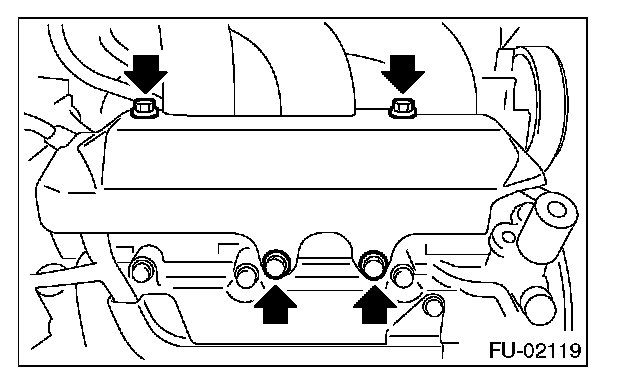

6. Remove the fuel pipe protector RH.

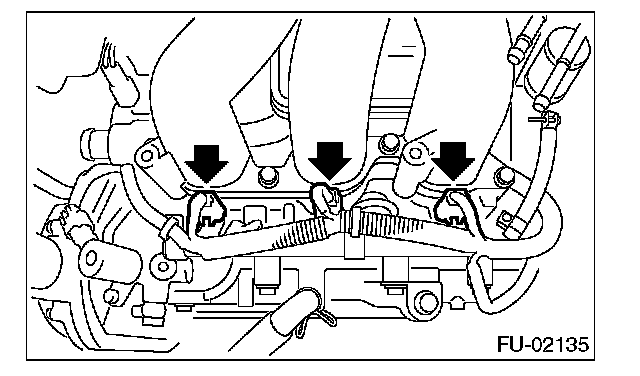

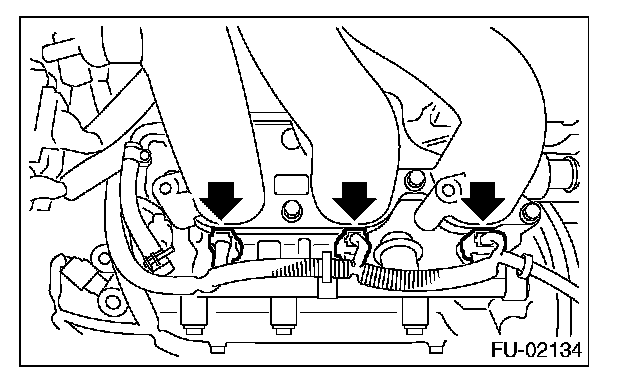

7. Disconnect the connectors from fuel injector.
8. Remove the engine harness from fuel injector pipe RH.

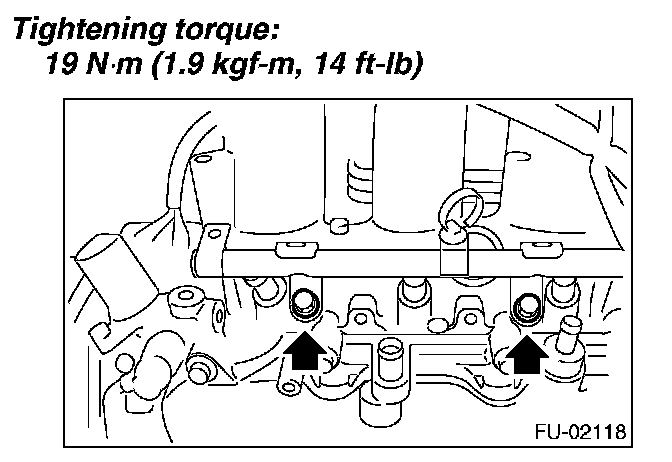

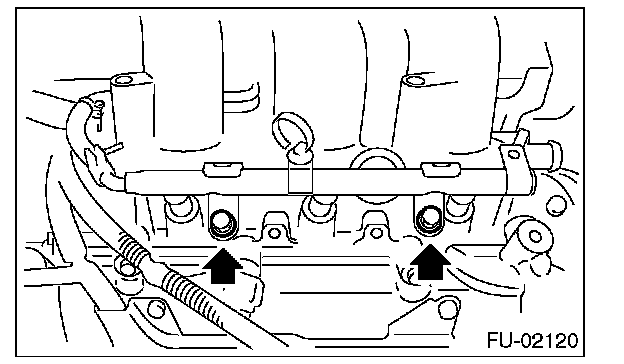

9. Remove the bolts which hold fuel injector pipe onto intake manifold.
10. Remove the fuel injector while lifting up the fuel injector pipe.

LH SIDE
1. Remove the collector cover.
2. Release the fuel pressure.
3. Open the fuel filler flap lid, and remove the fuel filler cap.
4. Remove the battery.
5. Remove the generator harness from fuel pipe protector LH.

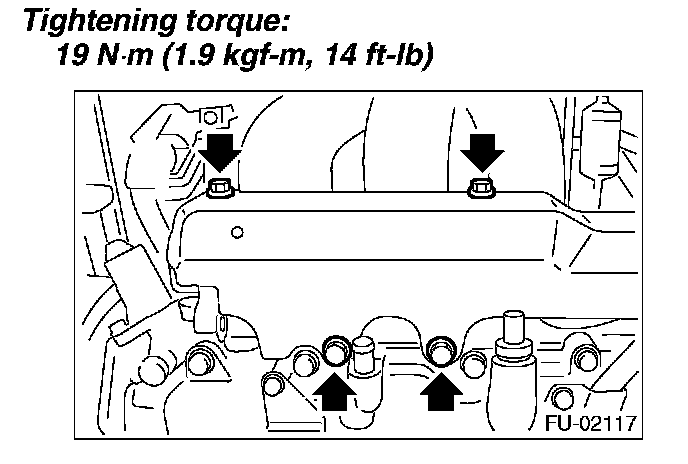

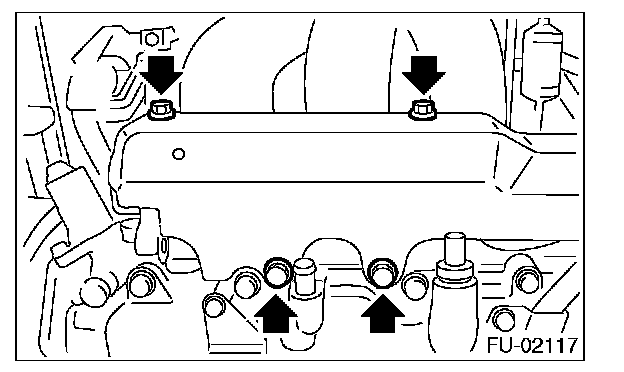

6. Remove the fuel pipe protector LH.




7. Disconnect the connectors from fuel injector.
8. Remove the engine harness from fuel injector pipe LH.

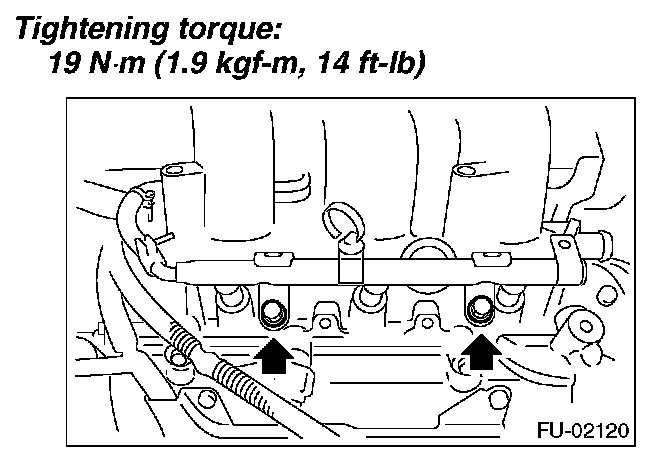

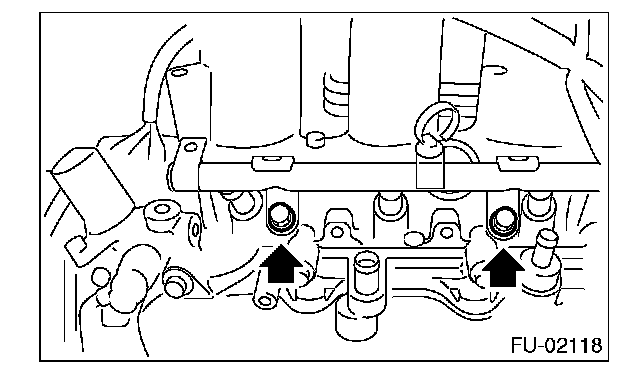

9. Remove the bolts which hold fuel injector pipe onto intake manifold.
10. Remove the fuel injector while lifting up the fuel injector pipe.

INSTALLATION

RH SIDE

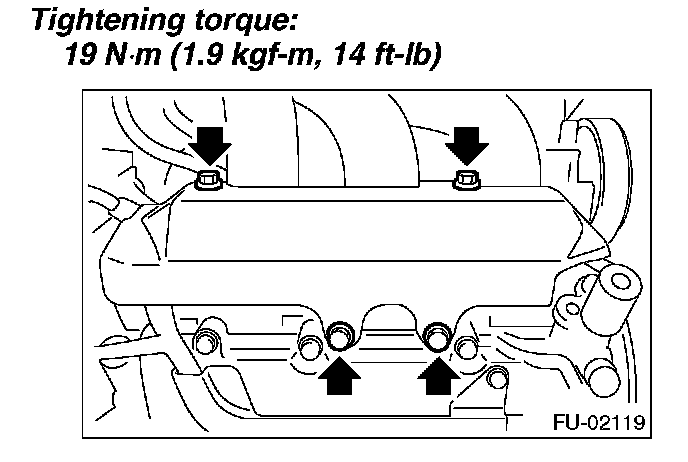

Install in the reverse order of removal.

NOTE: Use new O-rings.

LH SIDE







Install in the reverse order of removal.

NOTE: Use new O-rings.
