Engine Coolant Temperature Sensor

ENGINE COOLANT TEMPERATURE SENSOR

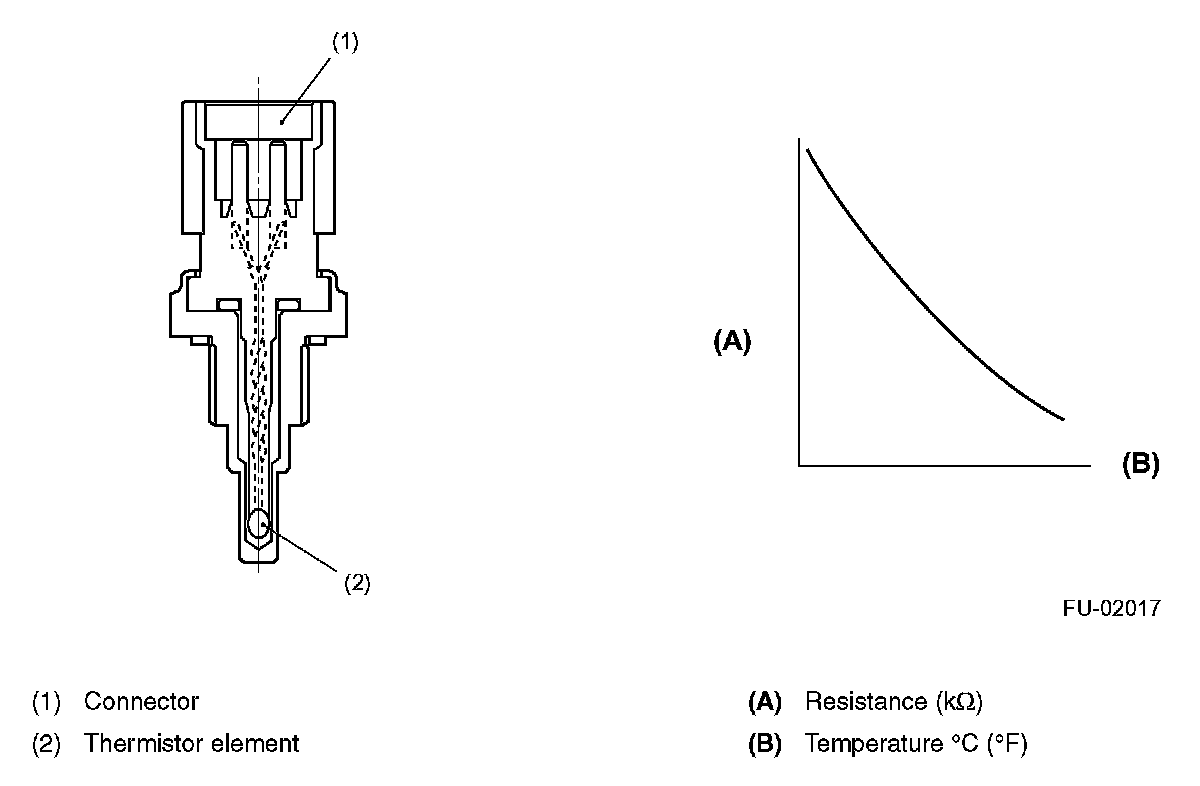

The engine coolant temperature sensor is located in the engine coolant passage. The sensor uses a thermistor whose resistance changes inversely with temperature. Resistance signals as engine coolant temperature information are transmitted to the ECM to make fuel injection, ignition timing, purge control solenoid valve and other controls.
