Positive Crankcase Ventilation Valve: Service and Repair

PCV Valve

REMOVAL

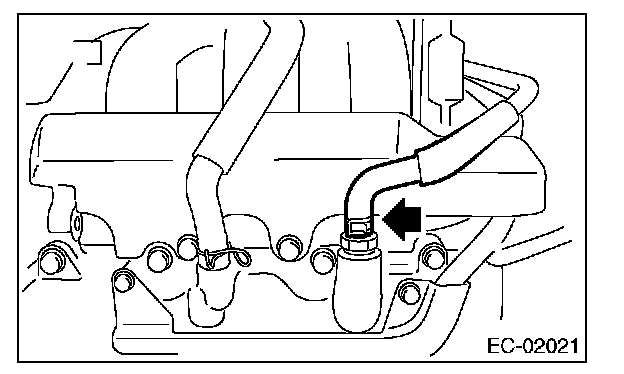

1. Disconnect the PCV hose.

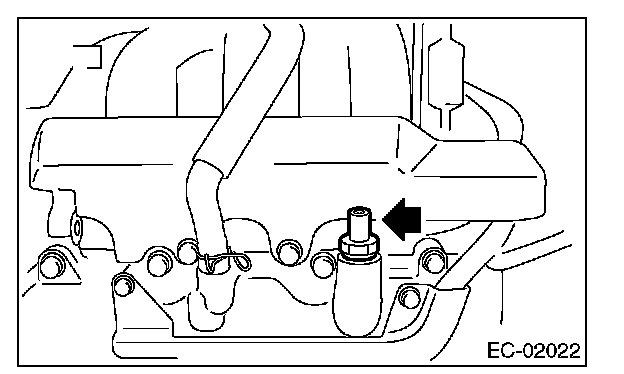

2. Remove the PCV valve from rocker cover.

INSTALLATION
Install in the reverse order of removal.

NOTE: Apply liquid gasket to the bolt threads of PCV valve.

Liquid gasket: THREE BOND 1105 (Part No. 004403010)

Tightening torque: 25 N.m (2.5 kgf-m, 18 ft-lb)
