Pressure Control Solenoid Valve
Pressure Control Solenoid ValveREMOVAL
1. Set the vehicle on the lift.
2. Disconnect the battery ground cable.
3. Lift-up the vehicle.

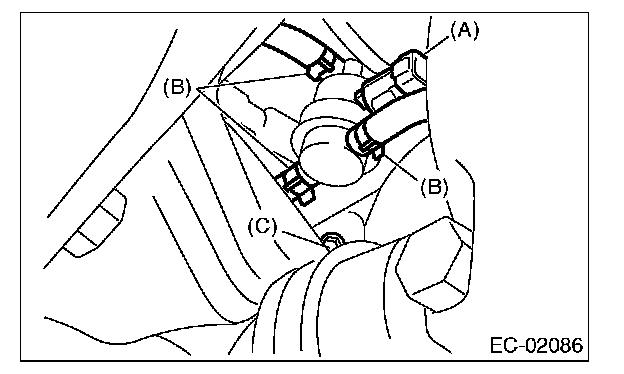

4. Disconnect the connector from pressure control solenoid valve.
5. Disconnect the evaporation hose (B) from pressure control solenoid valve.
6. Remove the bolt (C) which holds the bracket to fuel tank.
7. Remove the pressure control solenoid valve from bracket.
INSTALLATION
Install in the reverse order of removal.
Tightening torque: 17.6 N.m (1.8 kgf-m, 13.0 ft-lb)
