Diagnosis By Symptom

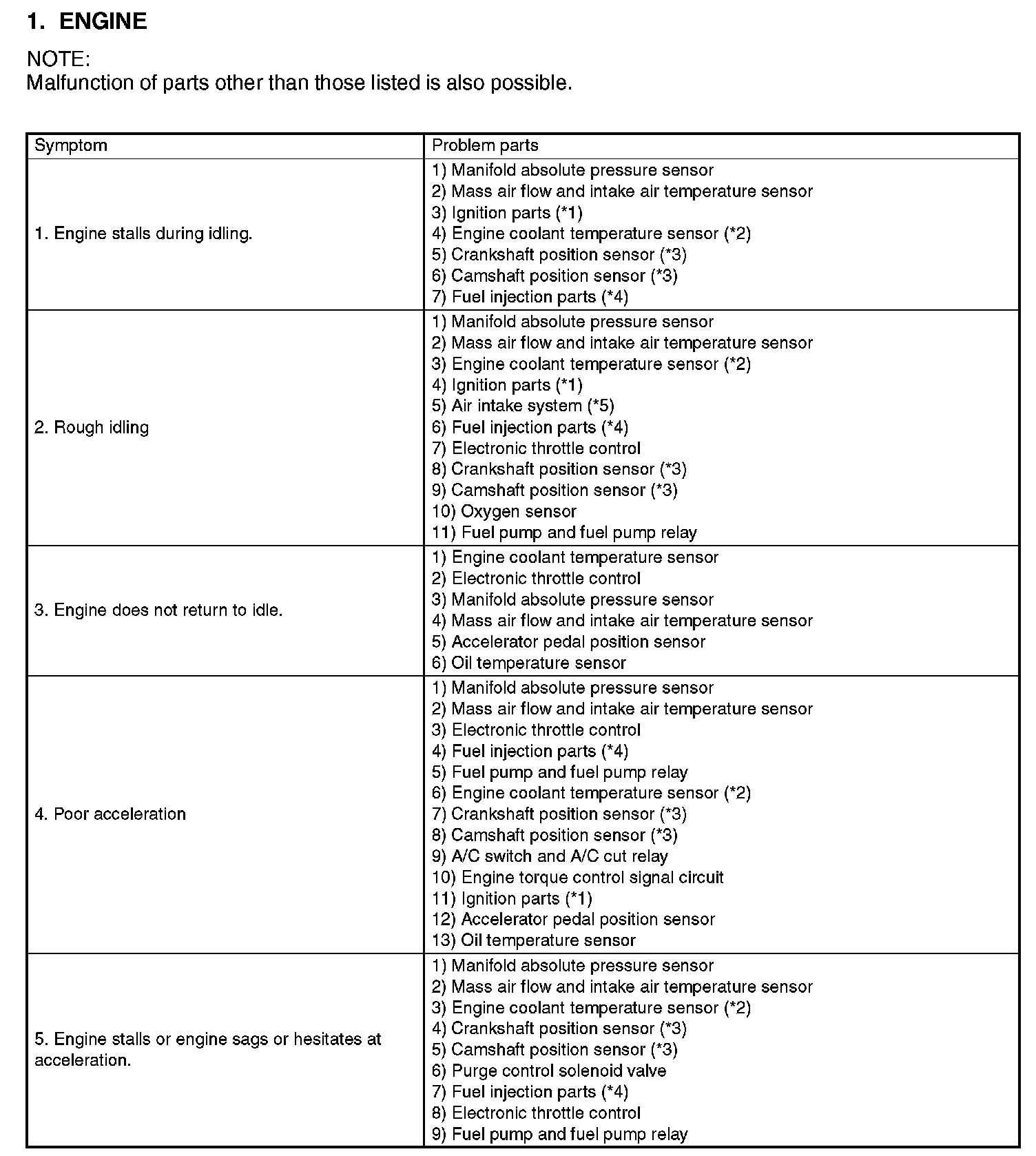

General Diagnostic Table - Engine (Part 1):

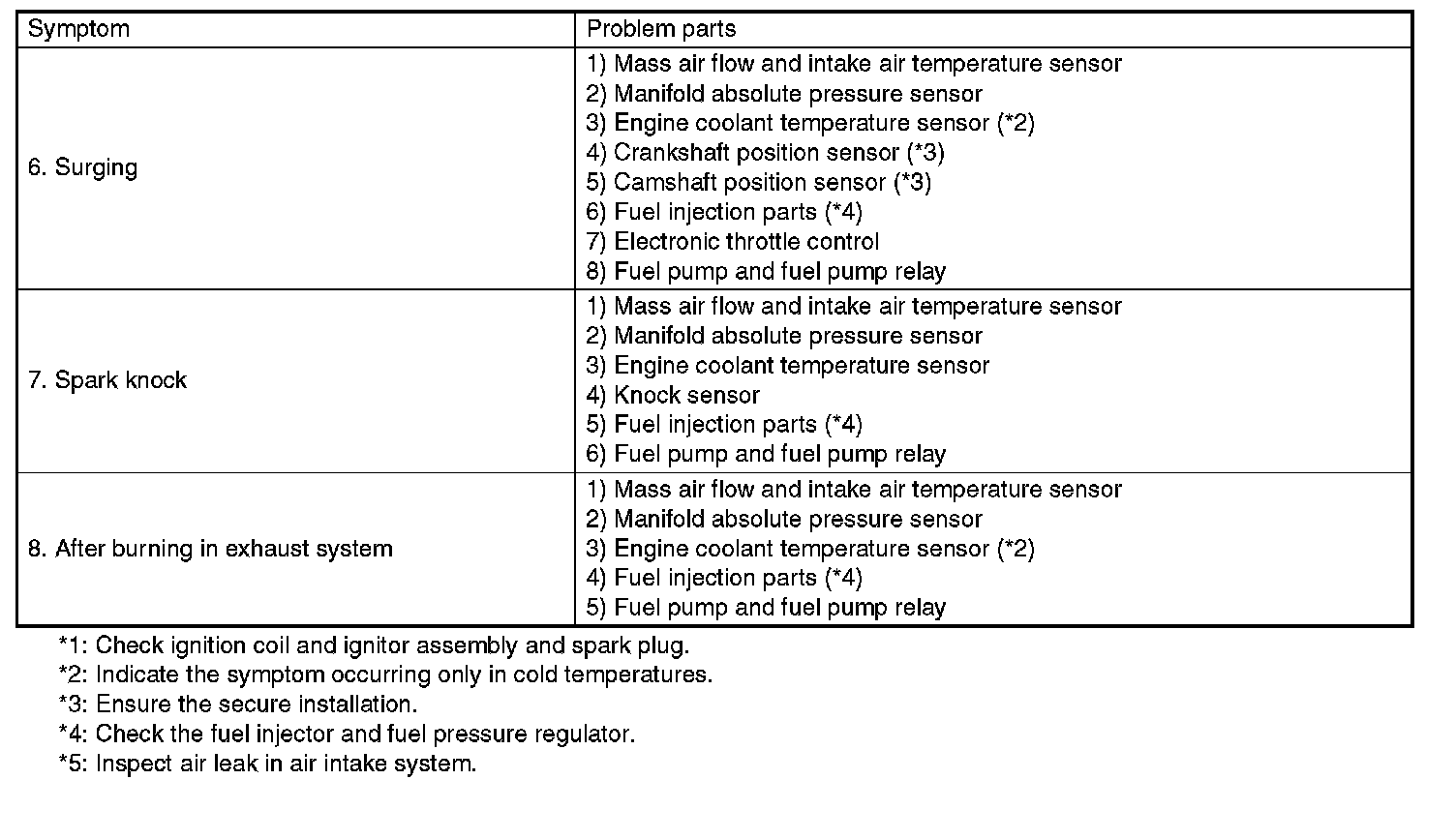

General Diagnostic Table - Engine (Part 2):
