Home >> Subaru >> 2005 >> Legacy F6-3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Locations

Computers and Control Systems: Locations

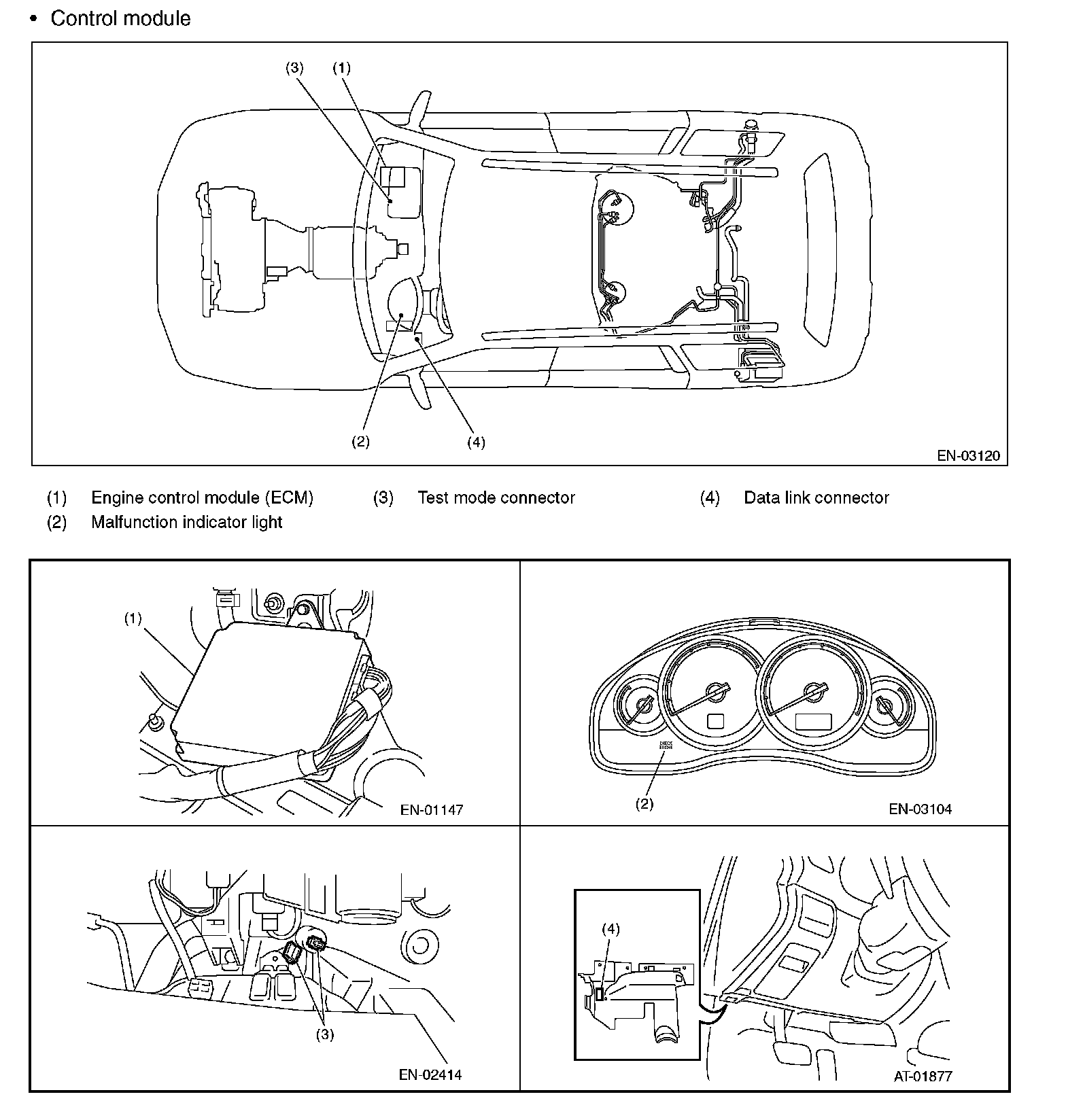

CONTROL MODULE

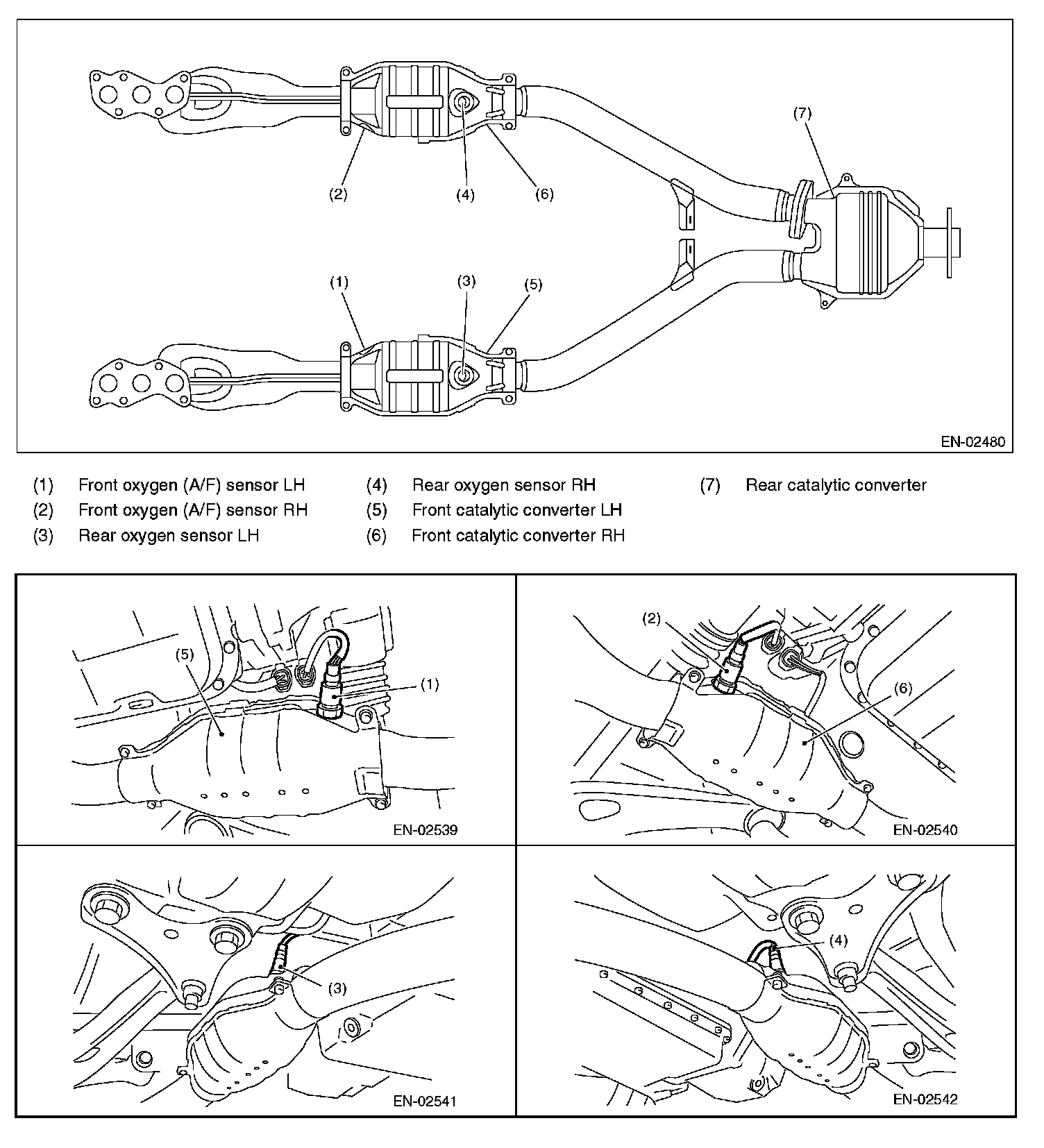

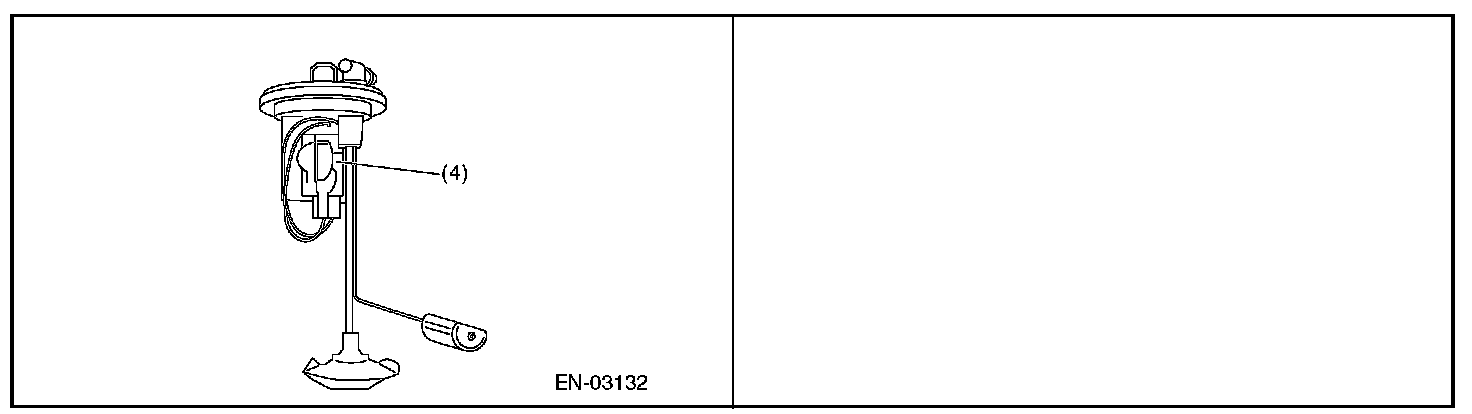

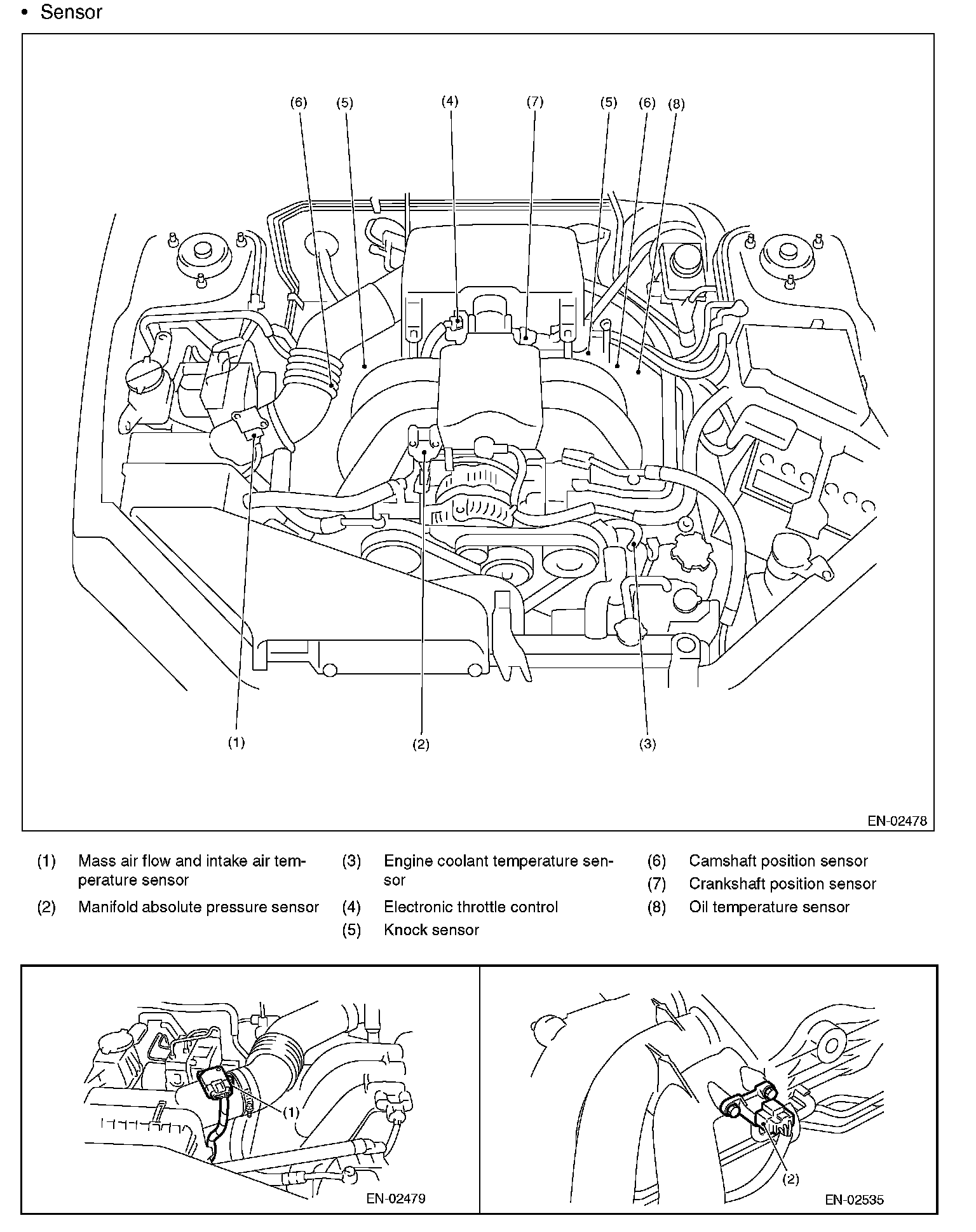

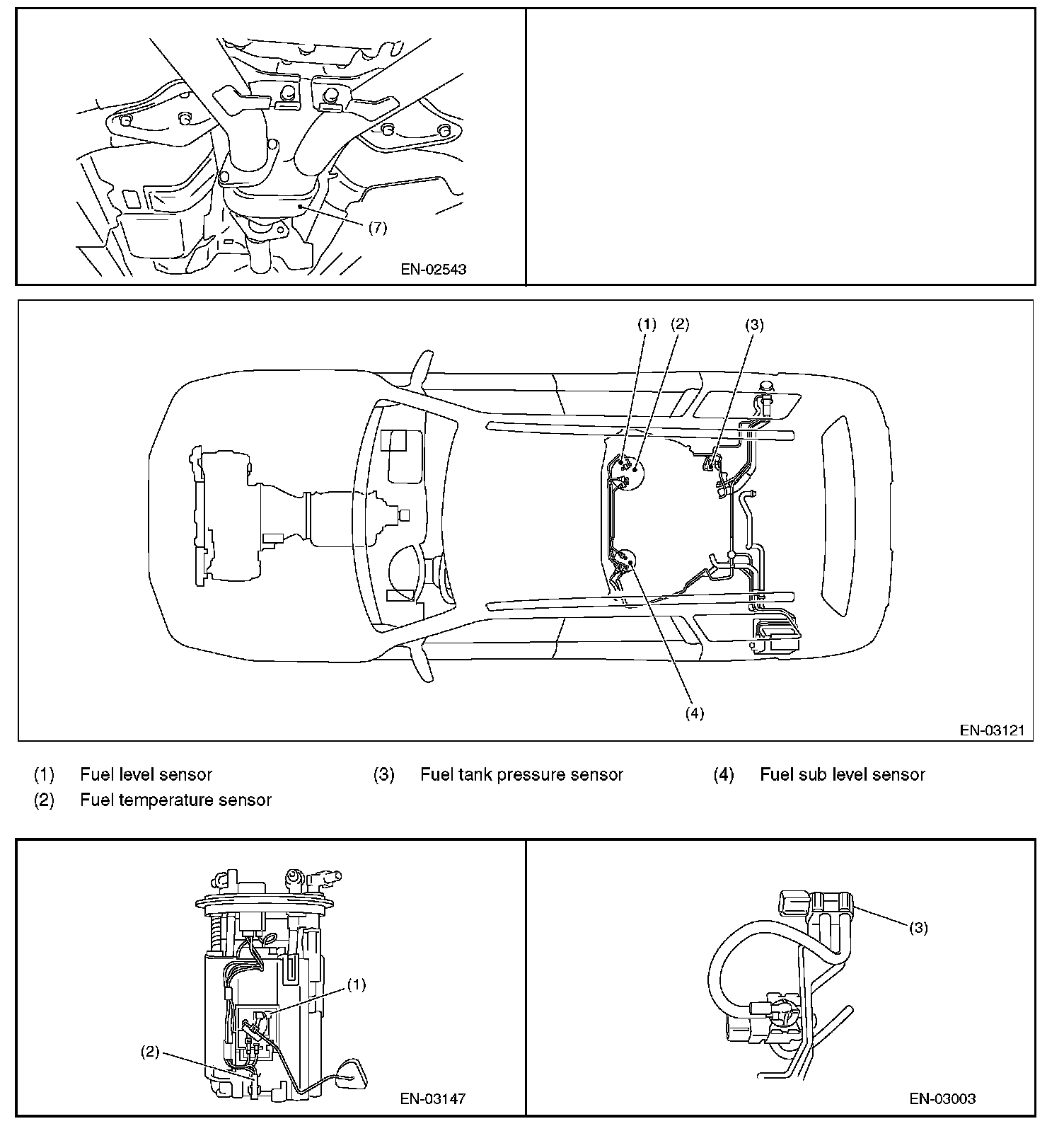

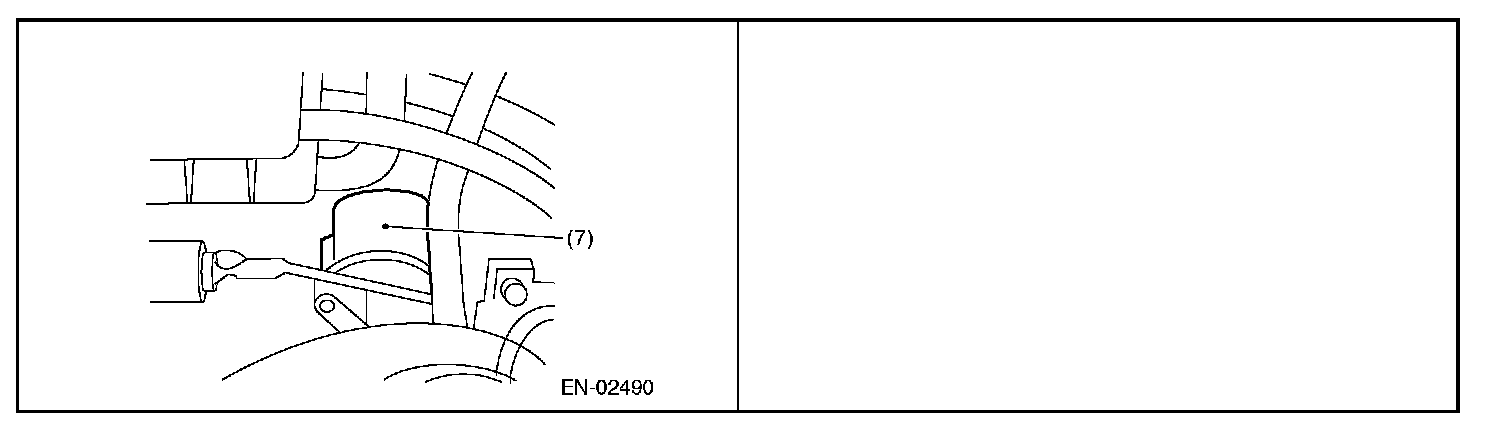

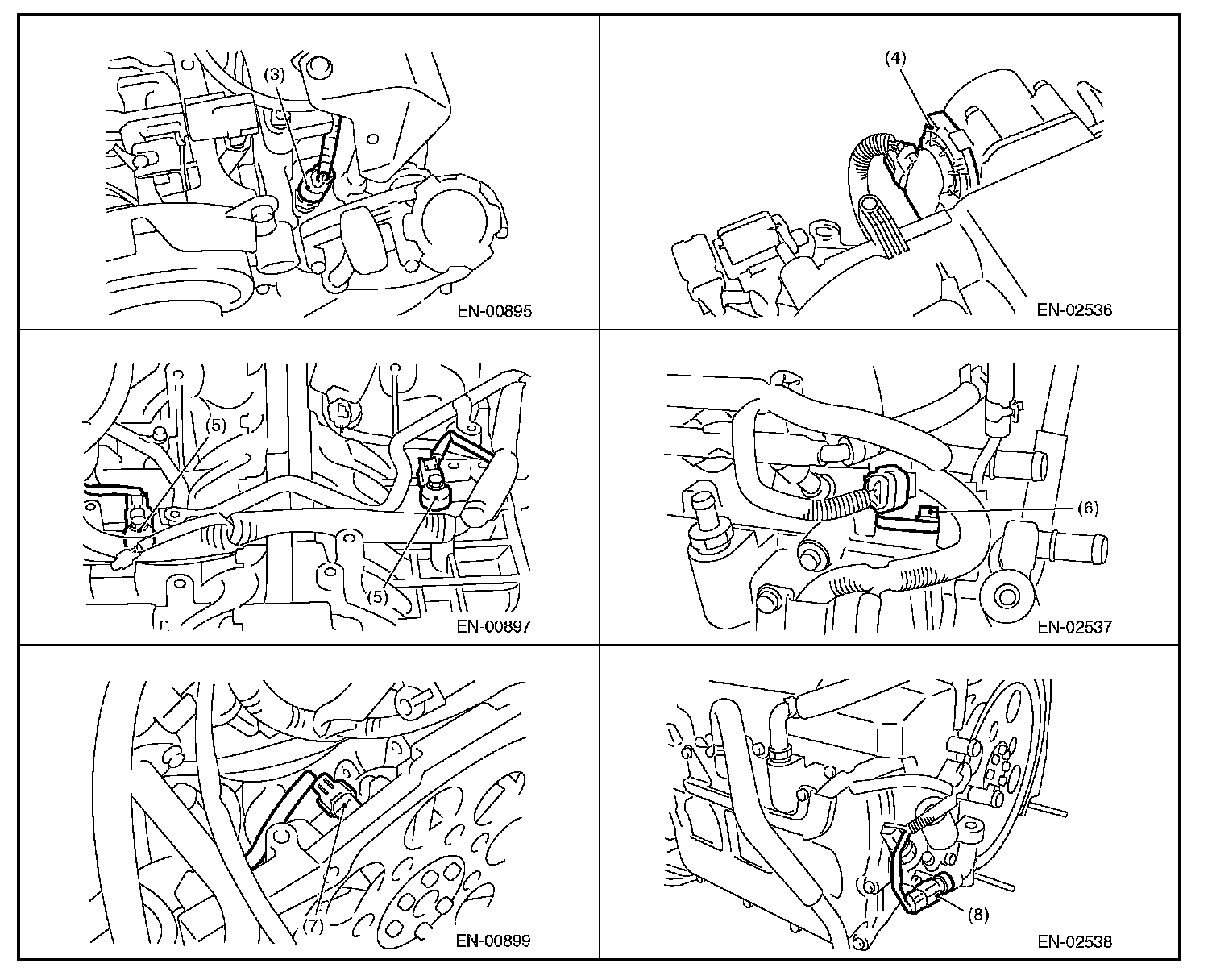

SENSOR

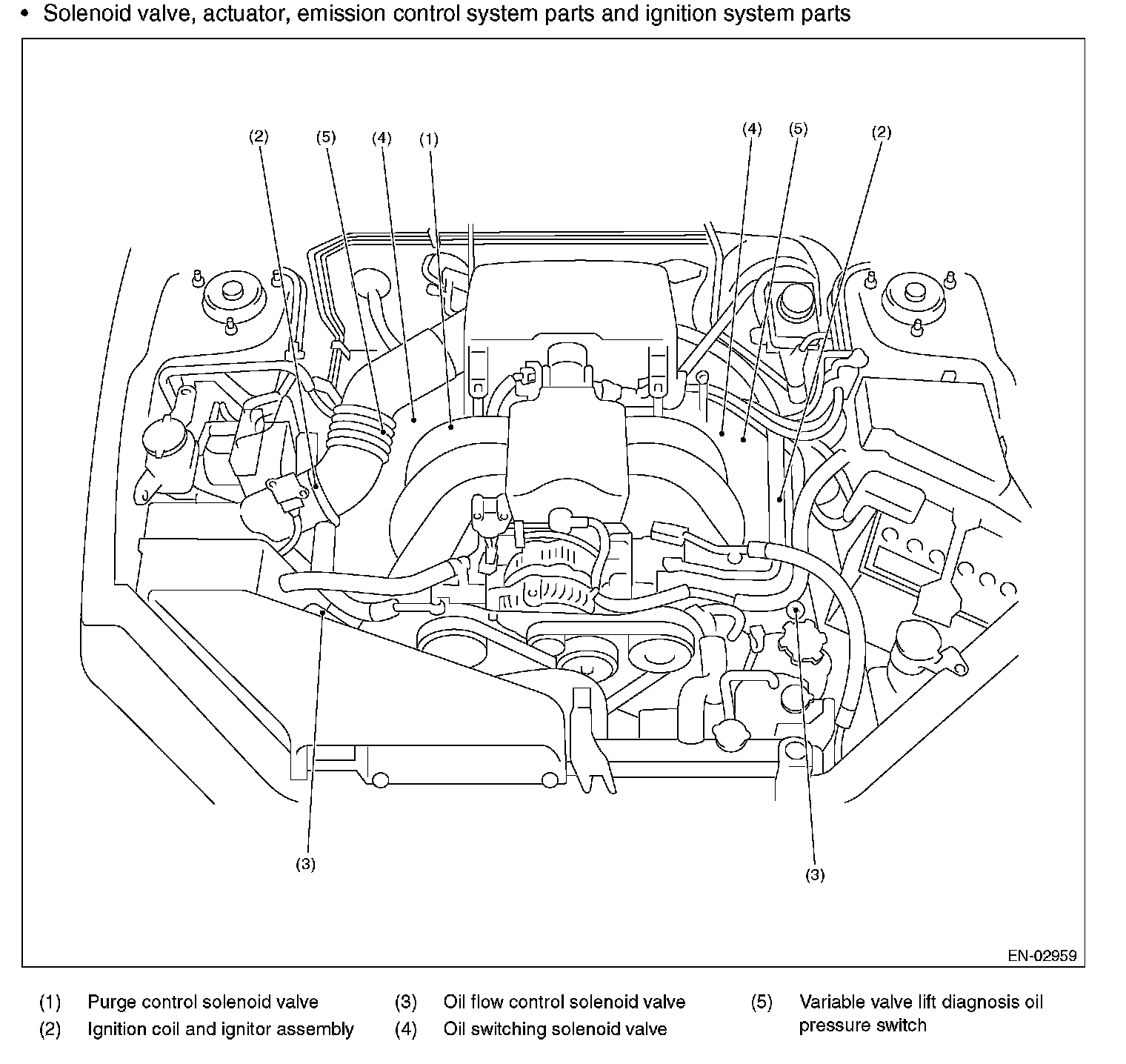

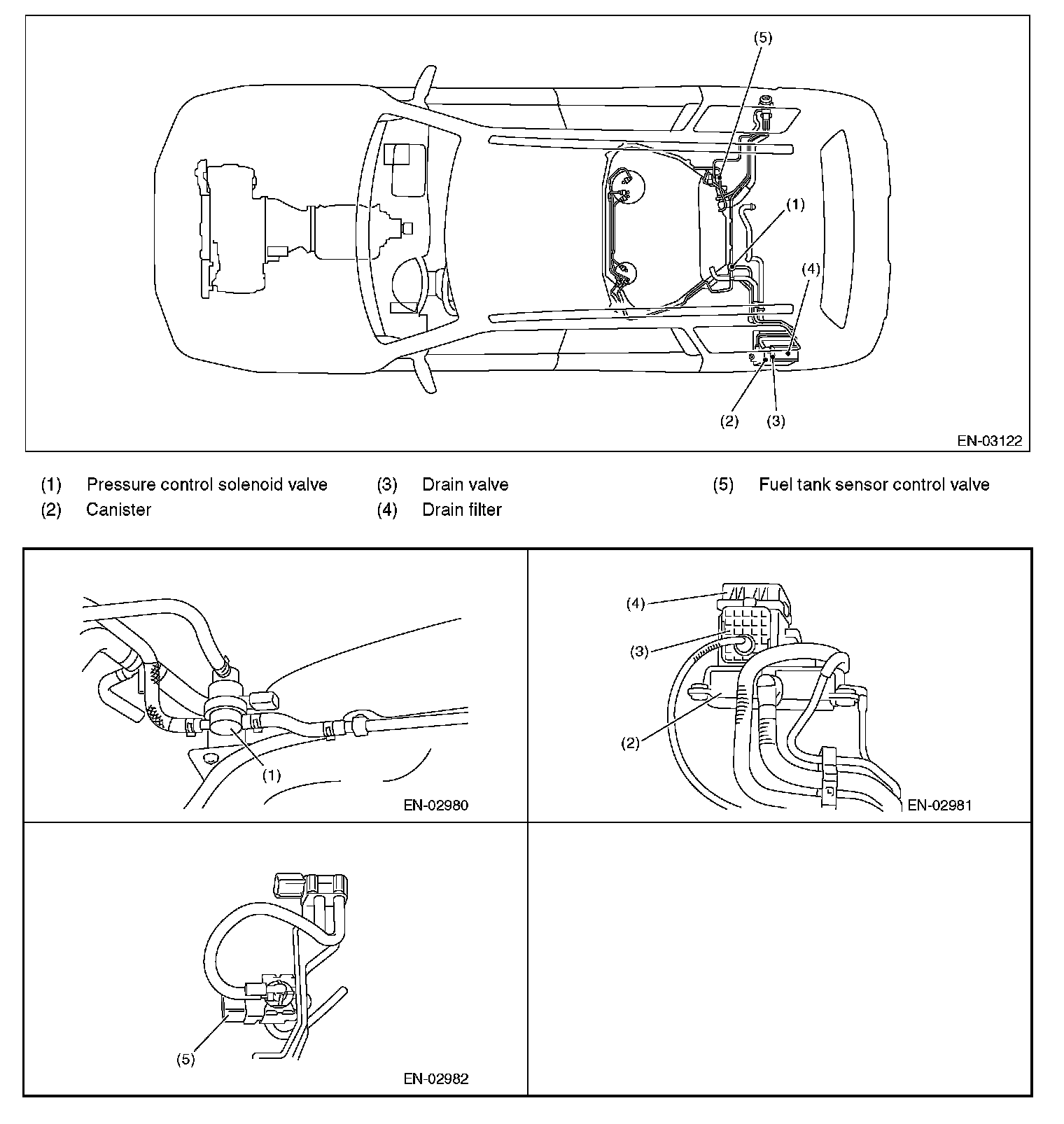

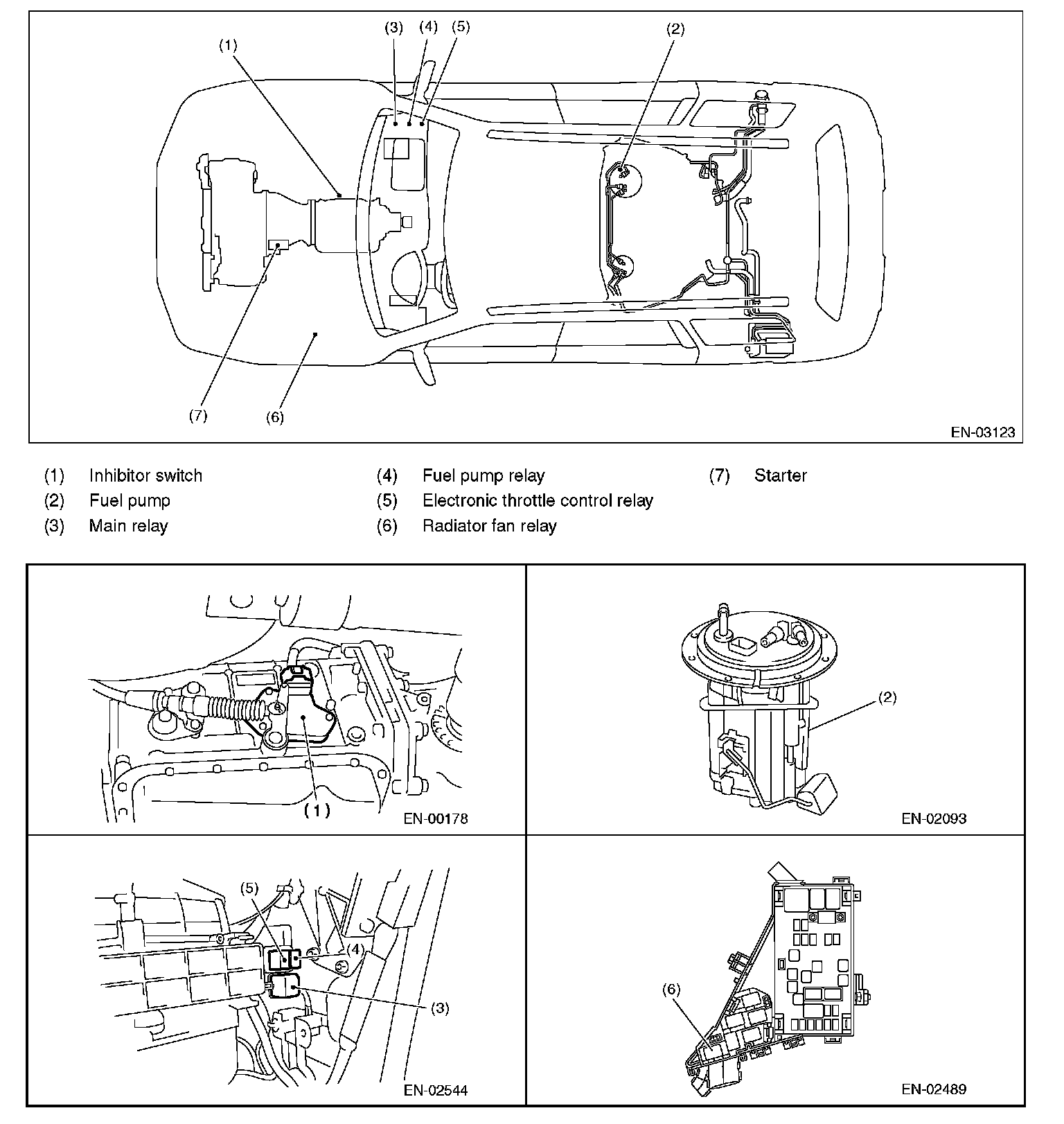

SOLENOID VALVE, ACTUATOR, EMISSION CONTROL SYSTEM PARTS AND IGNITION SYSTEM PARTS
