Pinout Values and Diagnostic Parameters

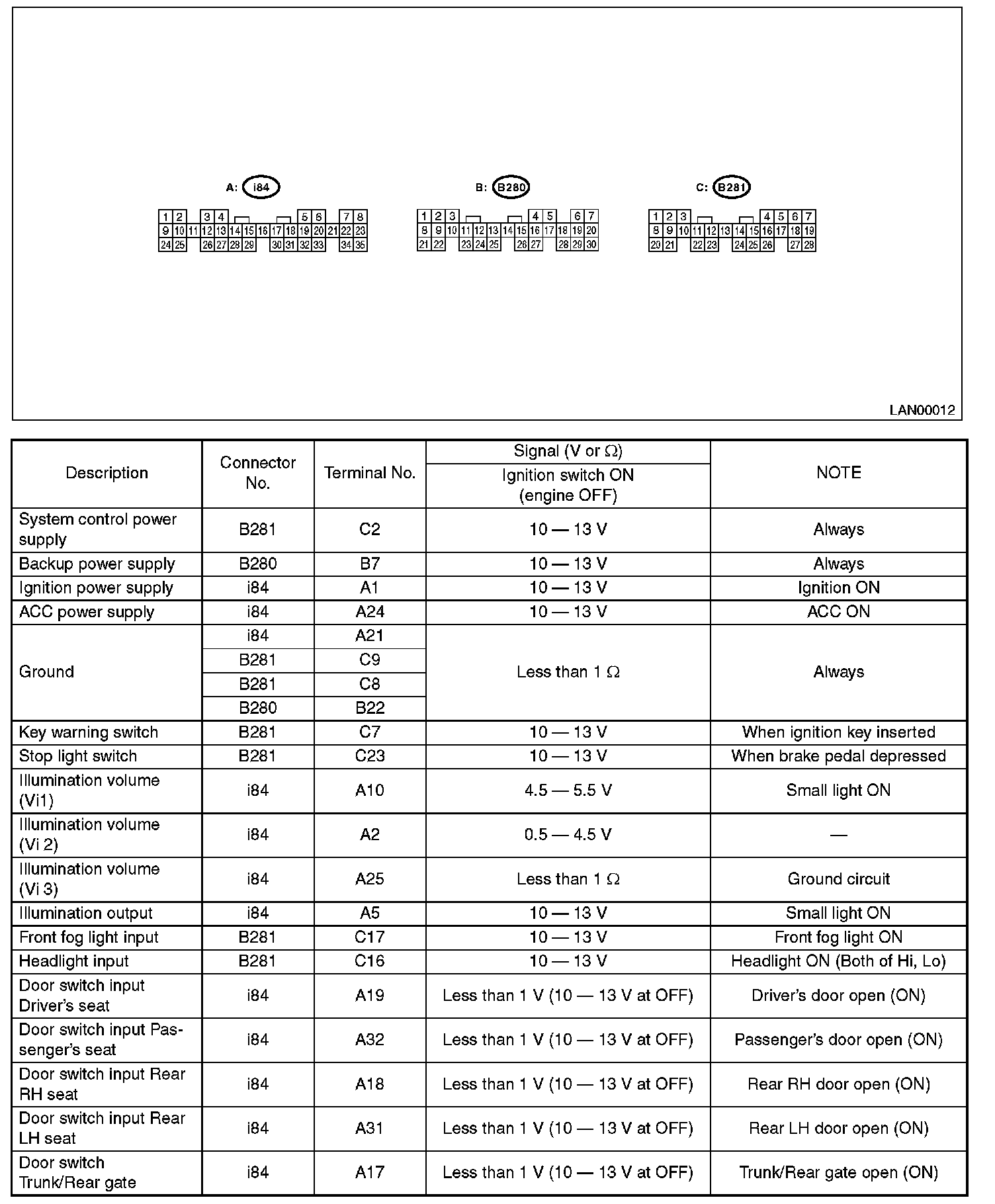

Electrical Specification Part 1:

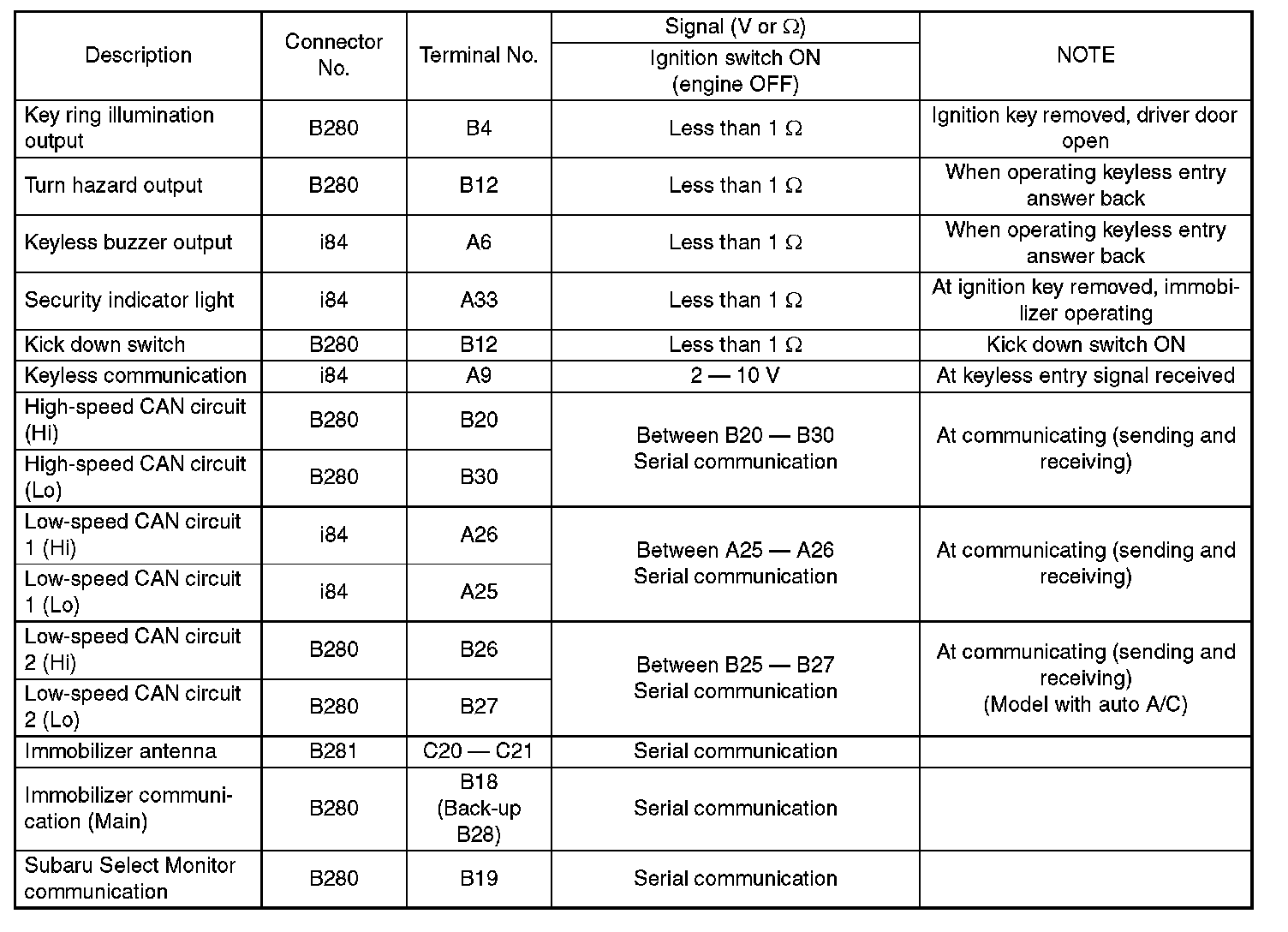

Electrical Specification Part 2:

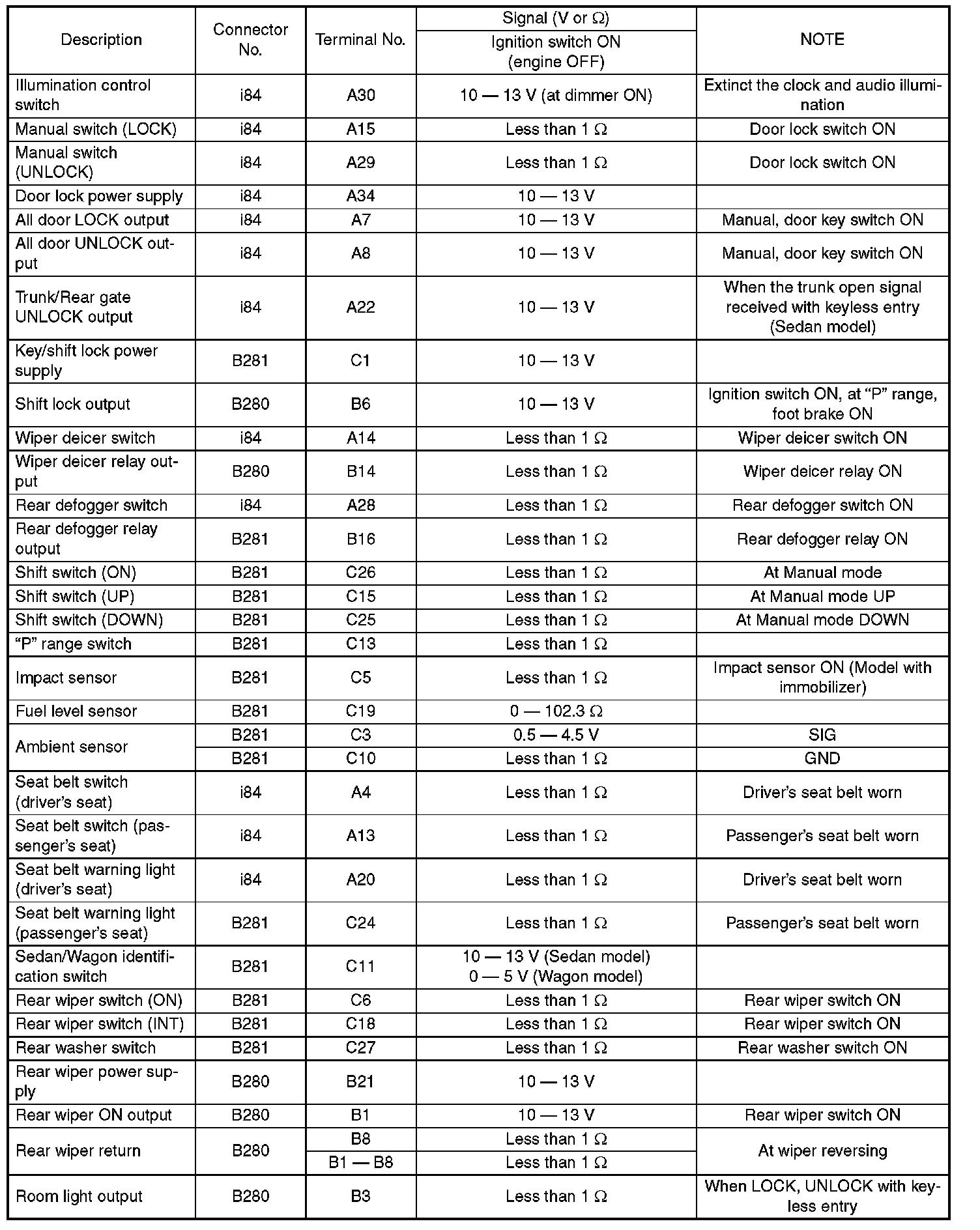

Electrical Specification Part 3:




Control Module I/O Signal

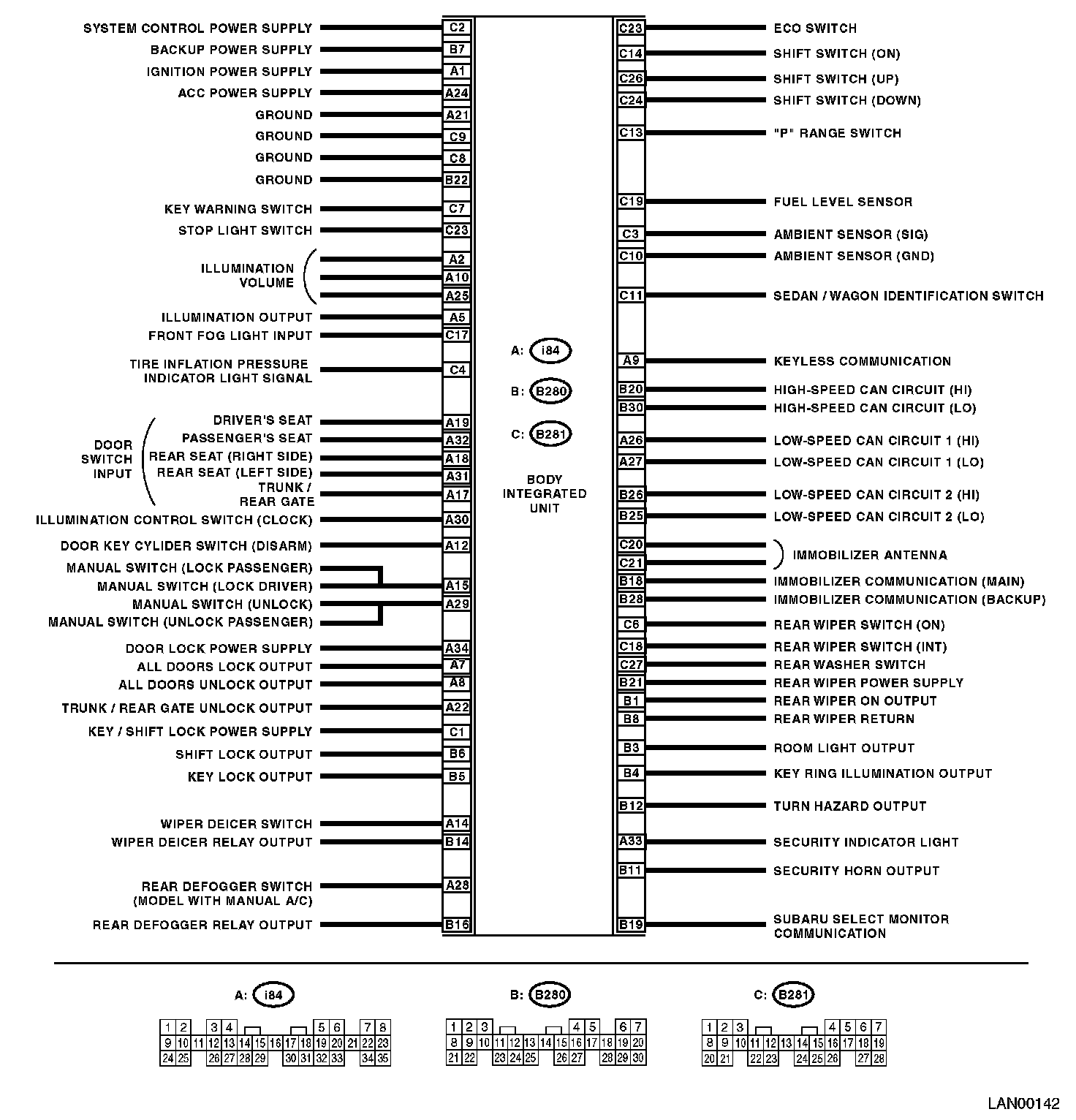

Wiring Diagram:




Wiring Diagram

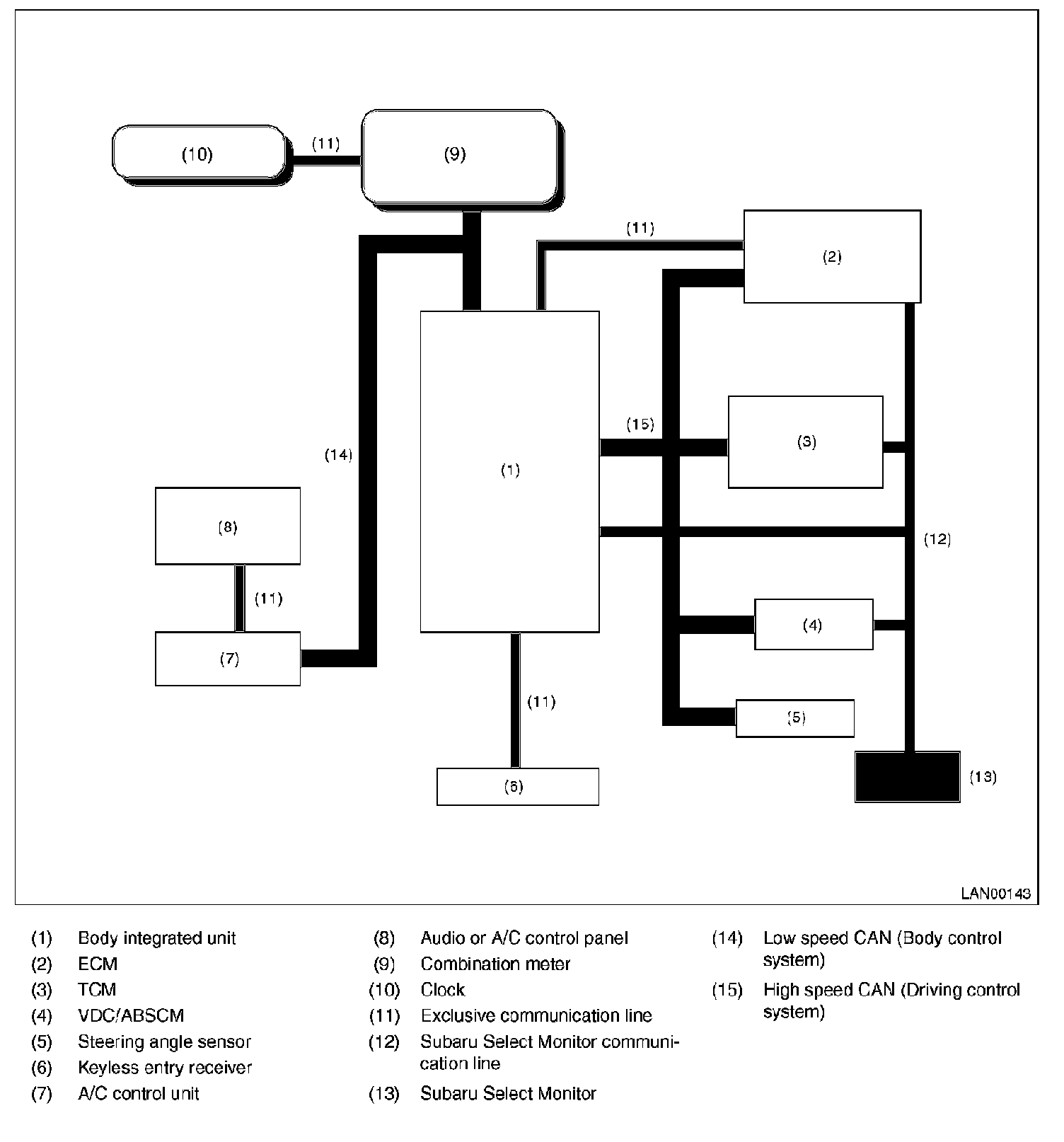

LAN System:




LAN System
