Legacy F6-3.0L
>>
Repair and Diagnosis
>>
Maintenance
>>
Wheels and Tires
>>
Tire Monitoring System
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
Pinout Values and Diagnostic Parameters
Control Module I/O Signal
Electrical Specification:
ELECTRICAL SPECIFICATION

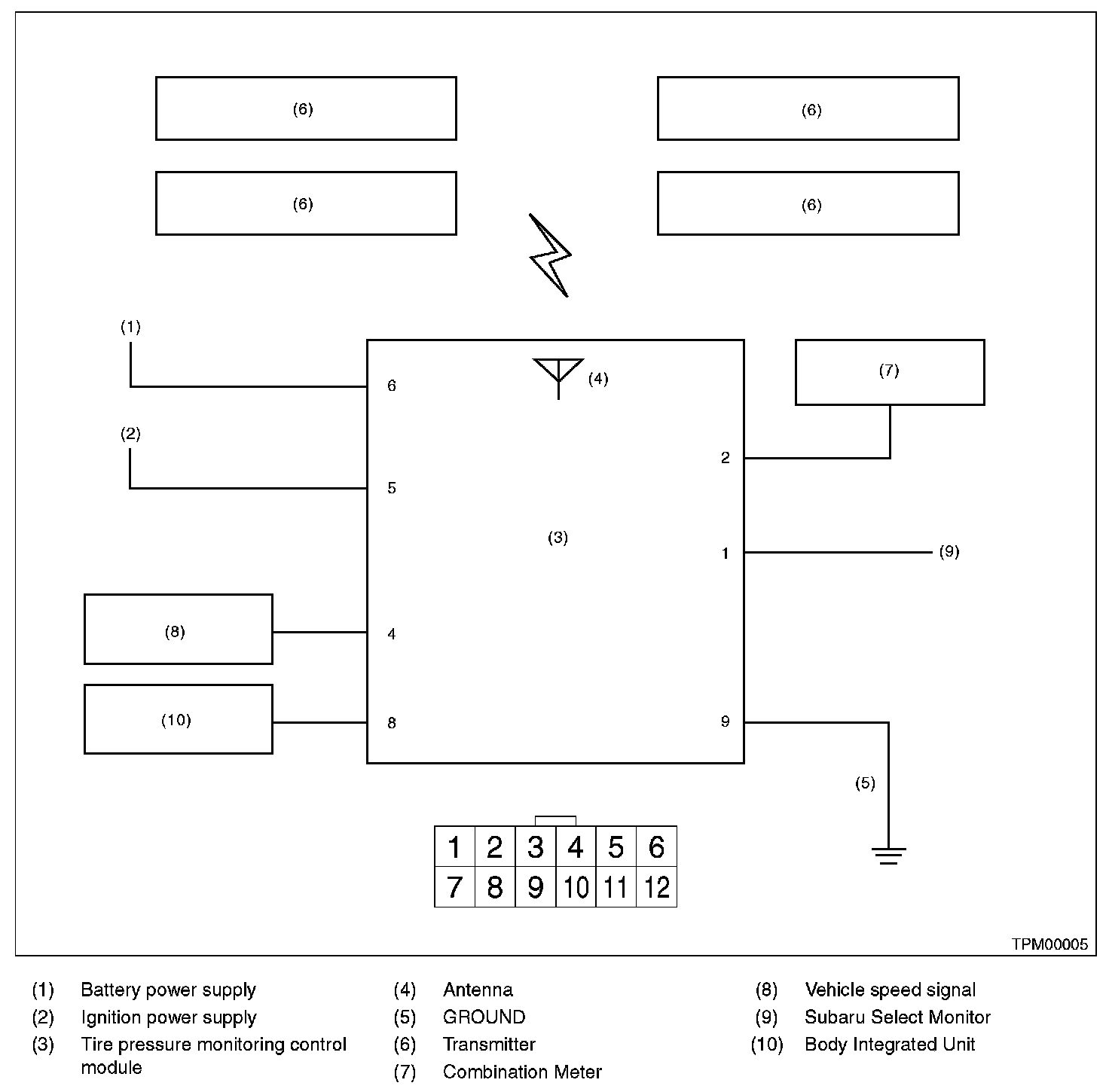

Wiring Diagram:
WIRING DIAGRAM
