Front Turn Signal Light Bulb

Front Turn Signal Light Bulb

REMOVAL

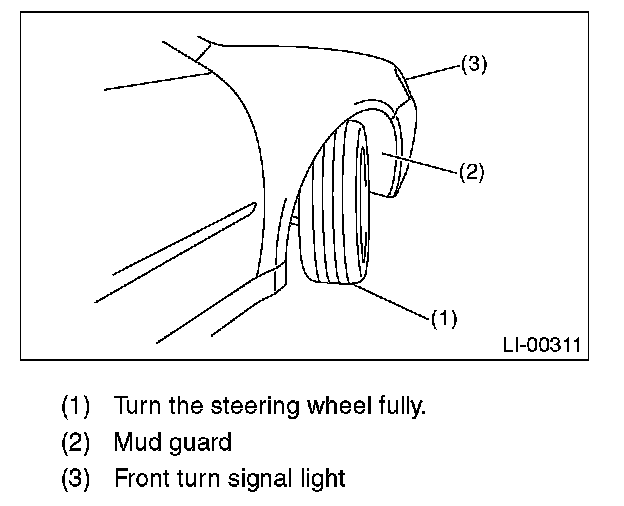

1. When removing the turn signal light bulb, fully turn the steering wheels to opposite direction from desired turn signal light bulb.
2. Turn the mud guard inward.

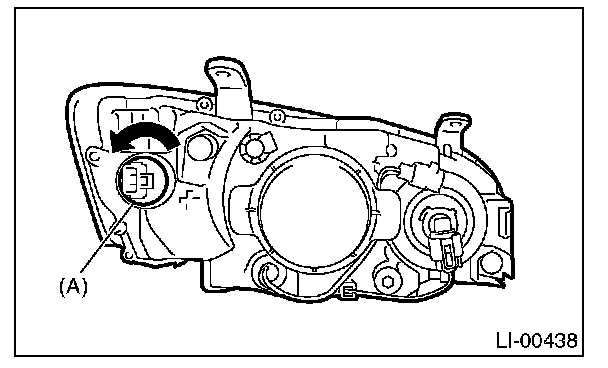

3. Turn the socket (A) from wheel arch part, and then remove the front turn signal light bulb.

CAUTION: For 5AT model, remove the turn signal light bulb LH from engine compartment with removing battery, because it can not be removed from wheel arch part.

INSTALLATION
Install in the reverse order of removal.
