Key Cylinder Lamp: Service and Repair

Ignition Switch Illumination

REMOVAL
1. Disconnect the ground cable from battery.




2. Remove the screws and detach the upper column cover and lower column cover.

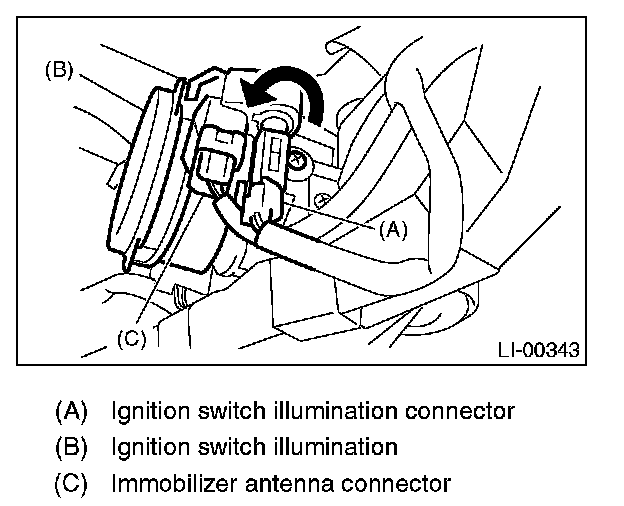

3. Disconnect the ignition switch illumination connector (A).




4. Turn the ignition switch illumination connector to left and disconnect it.

INSTALLATION
Install in the reverse order of removal.
