Fog/Driving Lamp Bulb: Service and Repair

Front Fog Light Bulb

REMOVAL
1. Disconnect the ground cable from battery.

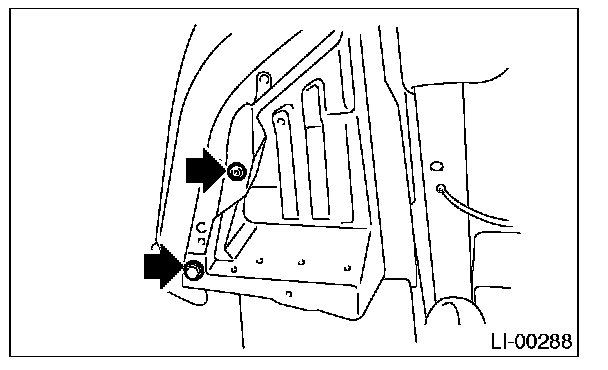

2. Disengage the two clips, and then turn over the lower mud guard.
3. Disconnect the harness connector.




4. Remove the back cover.

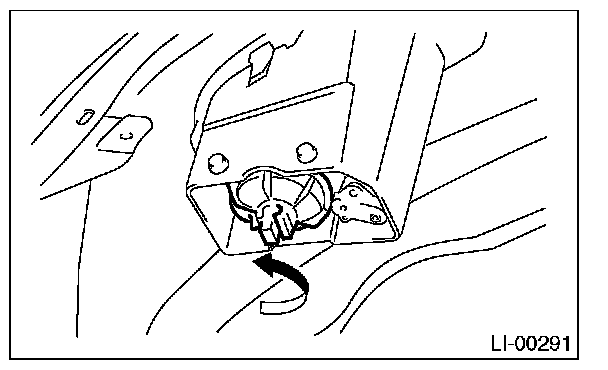

5. Remove the spring retainer then detach the fog light bulb.

INSTALLATION
Install in the reverse order of removal.
