Door Lamp: Service and Repair

Door Step Light

REMOVAL
1. Disconnect the ground cable from battery.

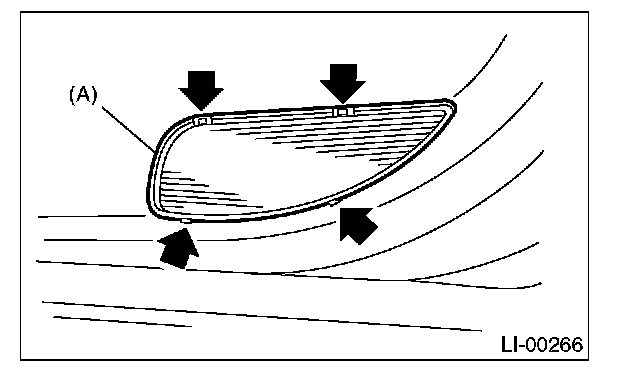

2. Remove the lens (A), and then remove the door step light bulb.
3. Remove the front door trim.
4. Disconnect the harness connector.

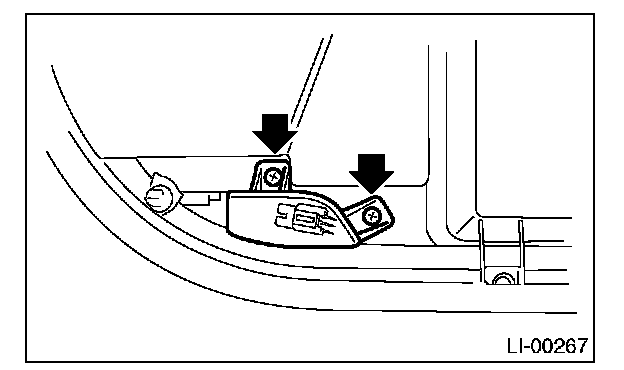

5. Remove the mounting screw from rear side of trim and remove the door step light.

INSTALLATION
Install in the reverse order of removal.
