Initial Inspection and Diagnostic Overview

INSPECTION

1. SELF-DIAGNOSIS
The self-diagnosis (checking of each meter, warning light, indicator, illumination, LCD, buzzer sound) of combination meter can be performed in the following procedure.

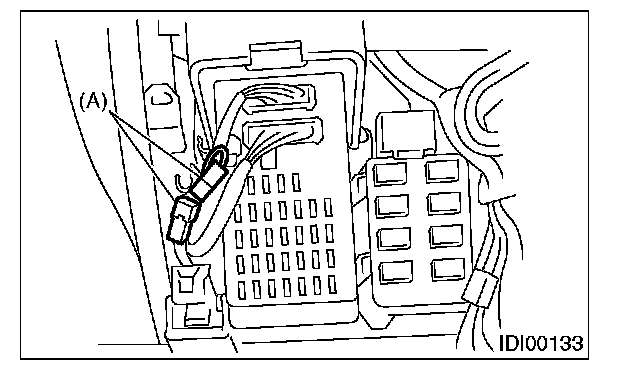

1. Connect the diagnostic connector (A) near the fuse & relay box.
2. Turn the ignition switch to ON.
3. While meter indicator needle deflecting, press the odo/trip meter knob twice.

NOTE: When odo/trip meter knob is pressed only once, display mode is shifted to DTC display mode. Scan Tool Testing and Procedures

When the self-diagnosis function is operated, the checking of warning light, indicator, and LCD display is performed, hereafter, every pressing the odo/trip meter knob, the operation check is performed in the order of meter, illumination and buzzer. To cancel the self-diagnosis mode, set the ignition switch to OFF or disconnect the diagnosis connector.

NOTE: When the engine starts during diagnosis, the self-diagnosis mode is not cancelled, however, once the vehicle starts driving, the self-diagnosis mode is cancelled automatically for safety.

Part 1:

Part 2:

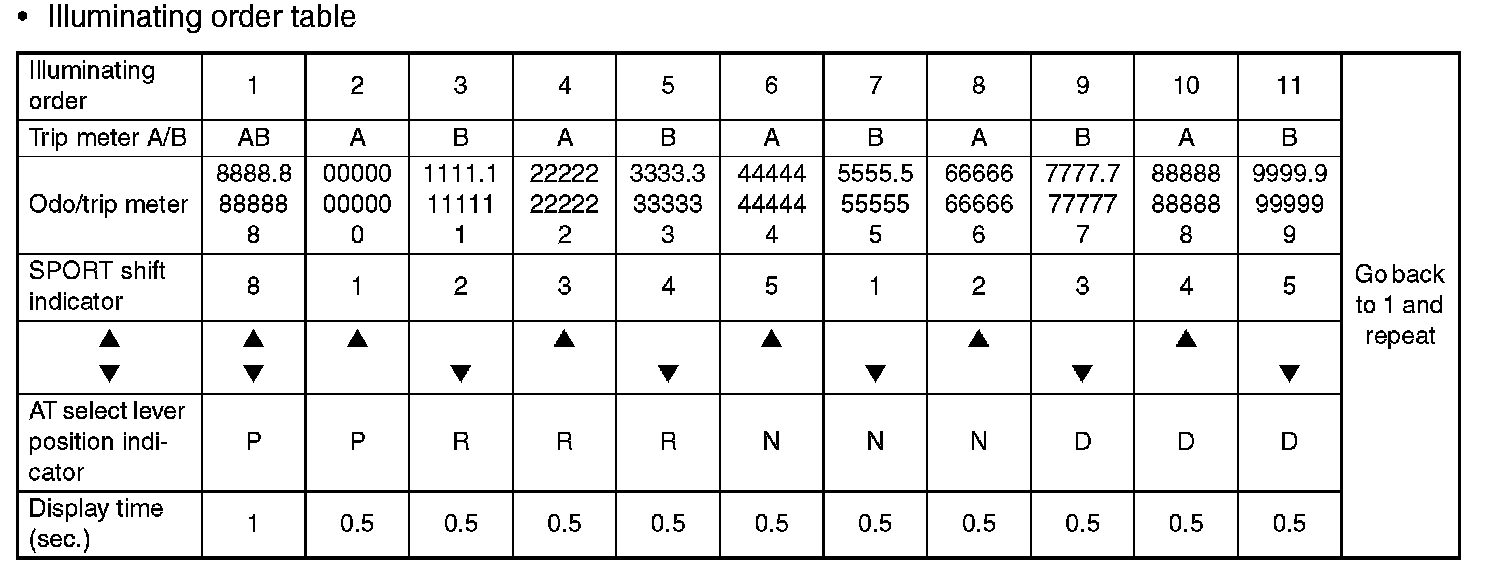

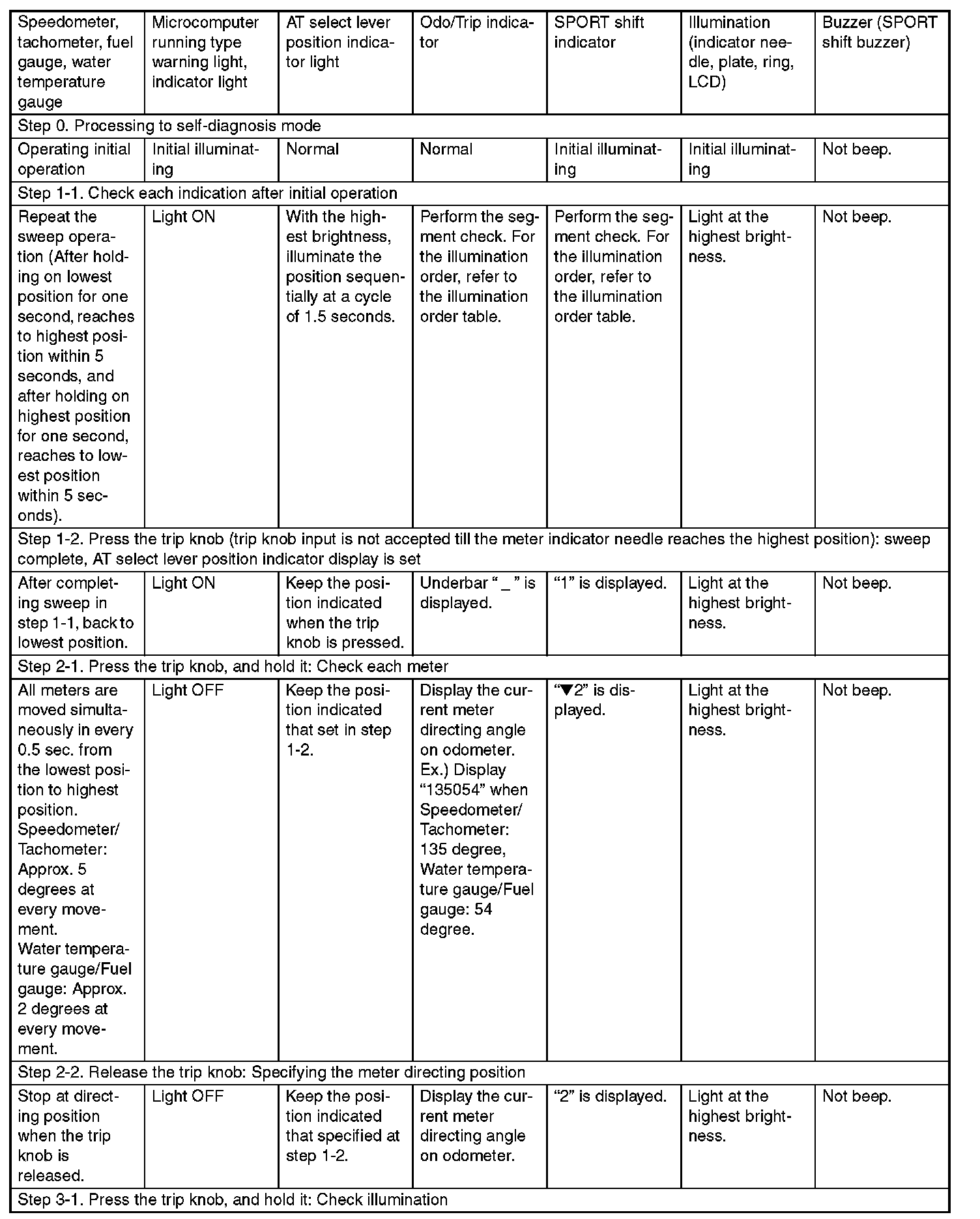

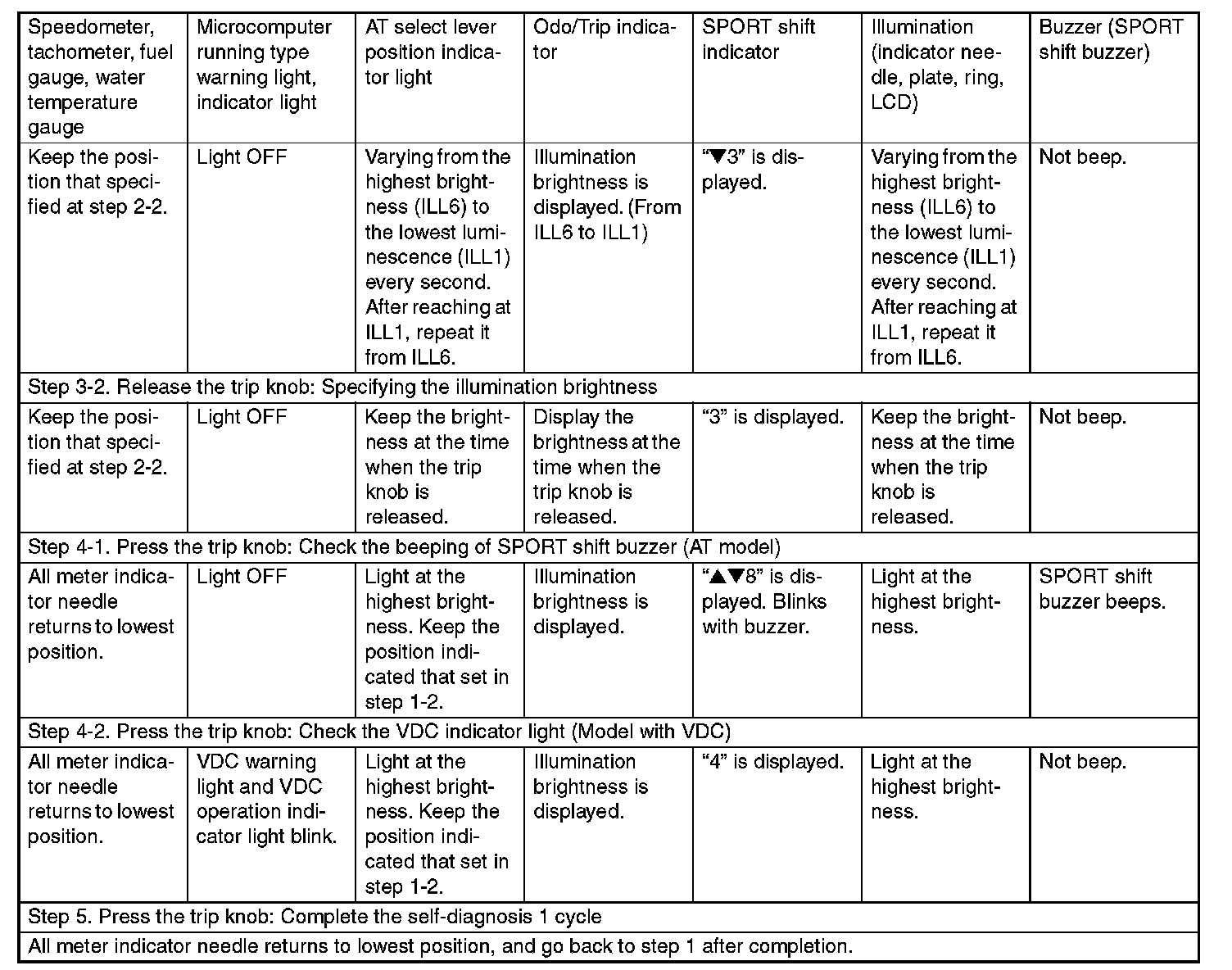

2. LIST OF SELF-DIAGNOSIS MODE OPERATION
