With ABS

INSPECTION

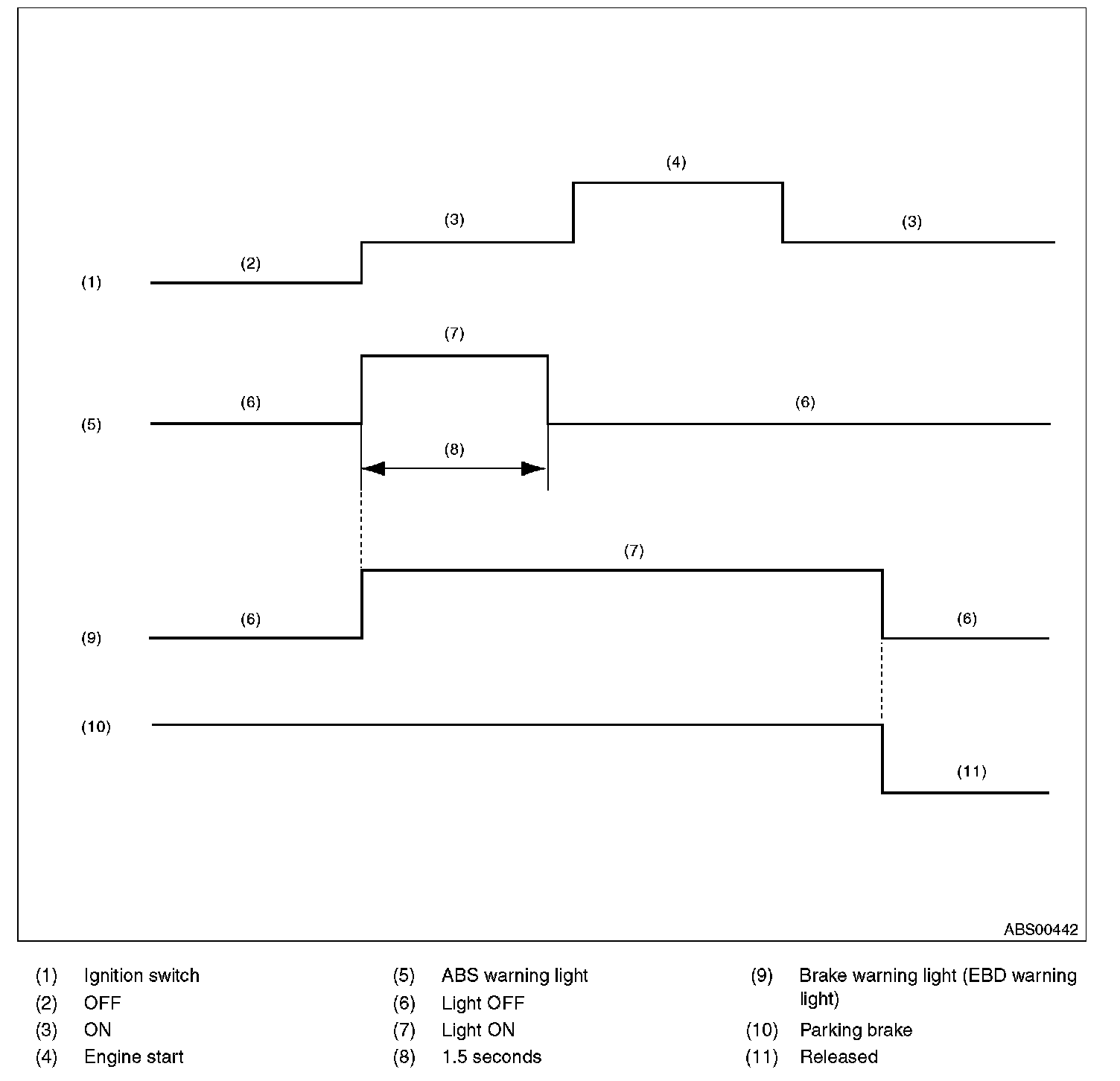

1. When the ABS warning light and brake warning light do not illuminate in accordance with this illumination pattern, there must be an electrical malfunction.
2. When ABS warning light remains constantly OFF, check the combination meter circuit.
3. When ABS warning light does not go off, check the combination meter circuit.
4. When brake warning light does not go off, check the brake warning light circuit, combination meter circuit.

NOTE: Even though the ABS warning light does not go off after 1.5 seconds from ABS warning light illumination, the ABS function operates normally when the warning light goes off while driving at approximately 12 km/h (7 MPH). However, the ABS function does not operate while the ABS warning light is illuminated.
