Self-Diagnosis Systems Do Not Operate

A/C OR SELF-DIAGNOSIS SYSTEMS DO NOT OPERATE

TROUBLE SYMPTOM:
- "Set" temperature is not indicated on the display, switch LEDs are faulty and switches do not operate.
- Self-diagnosis system does not operate.

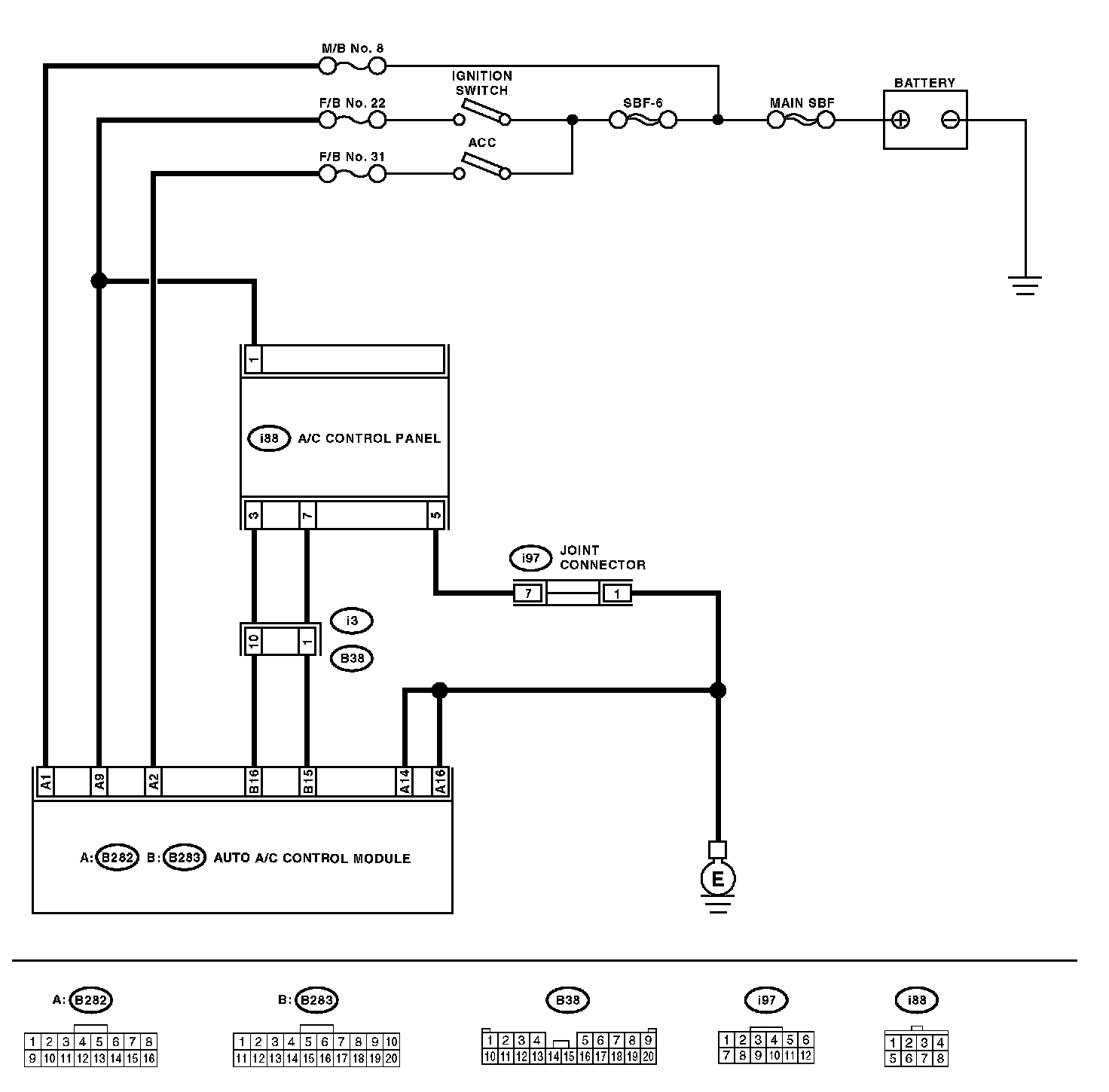

Wiring Diagram:

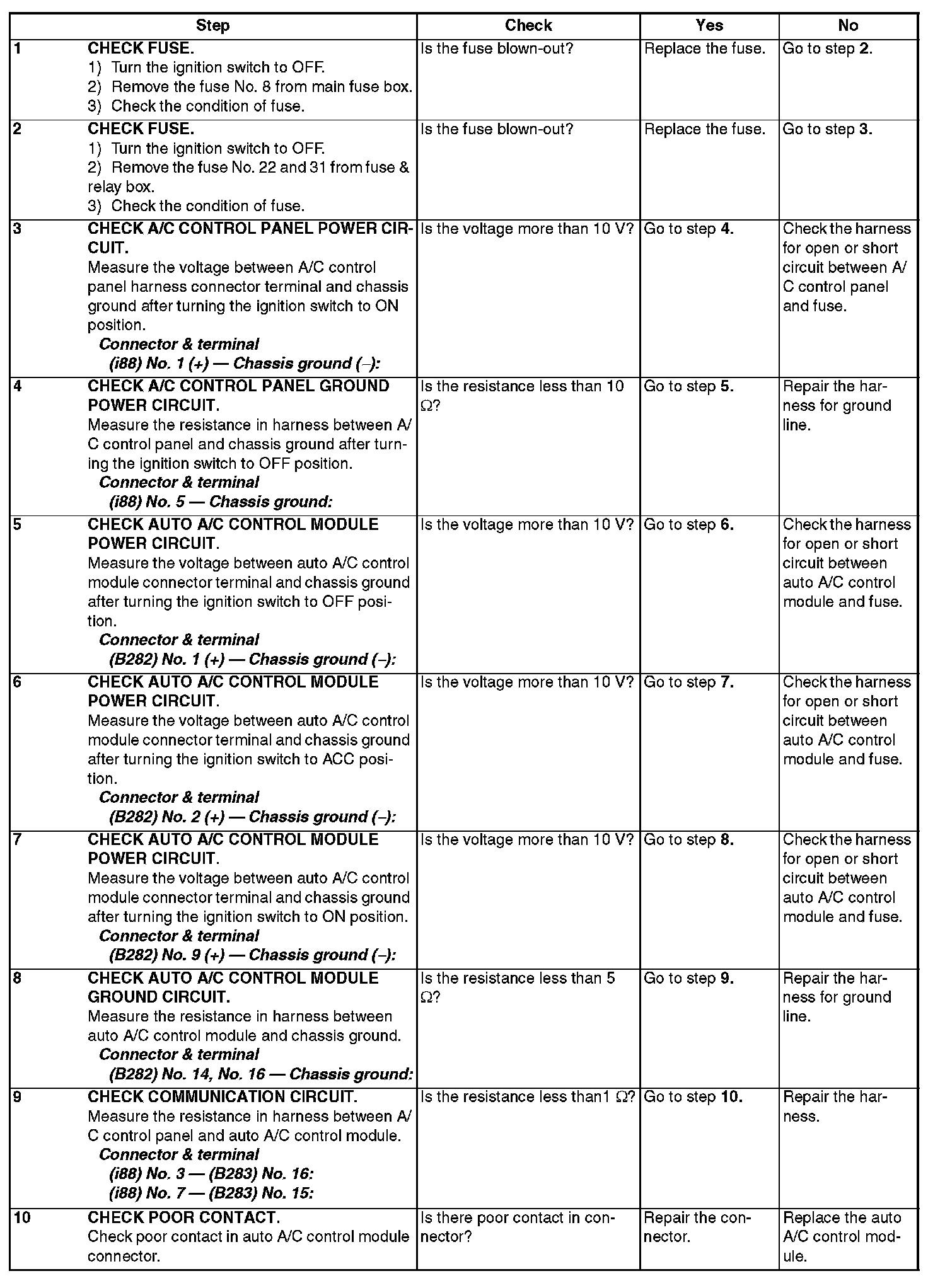

Step 1 - 10:
