Compartment Temp Does Not Change
COMPARTMENT TEMPERATURE DOES NOT CHANGE, OR A/C SYSTEM DOES NOT RESPOND PROMPTLY

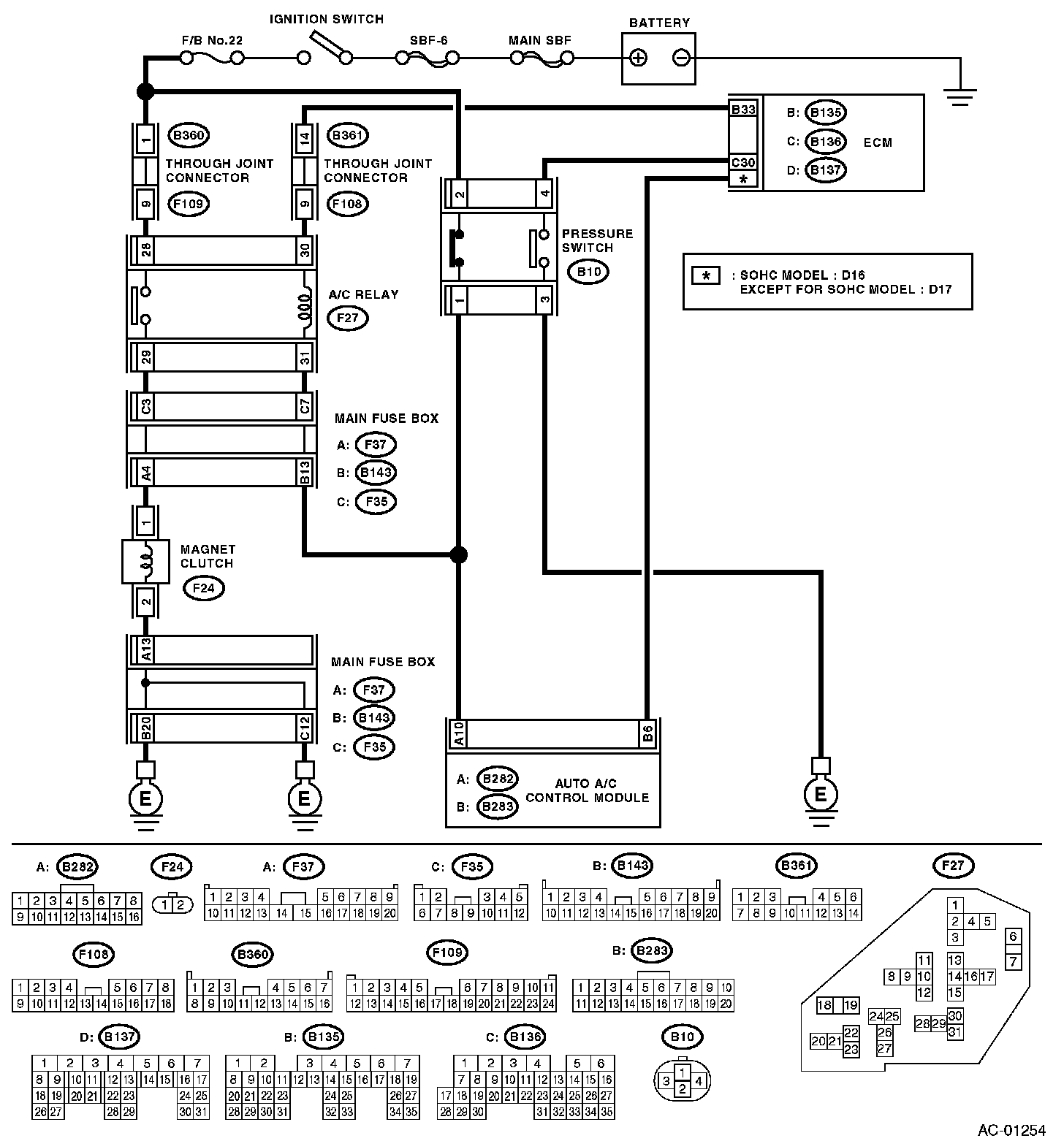

Wiring Diagram:

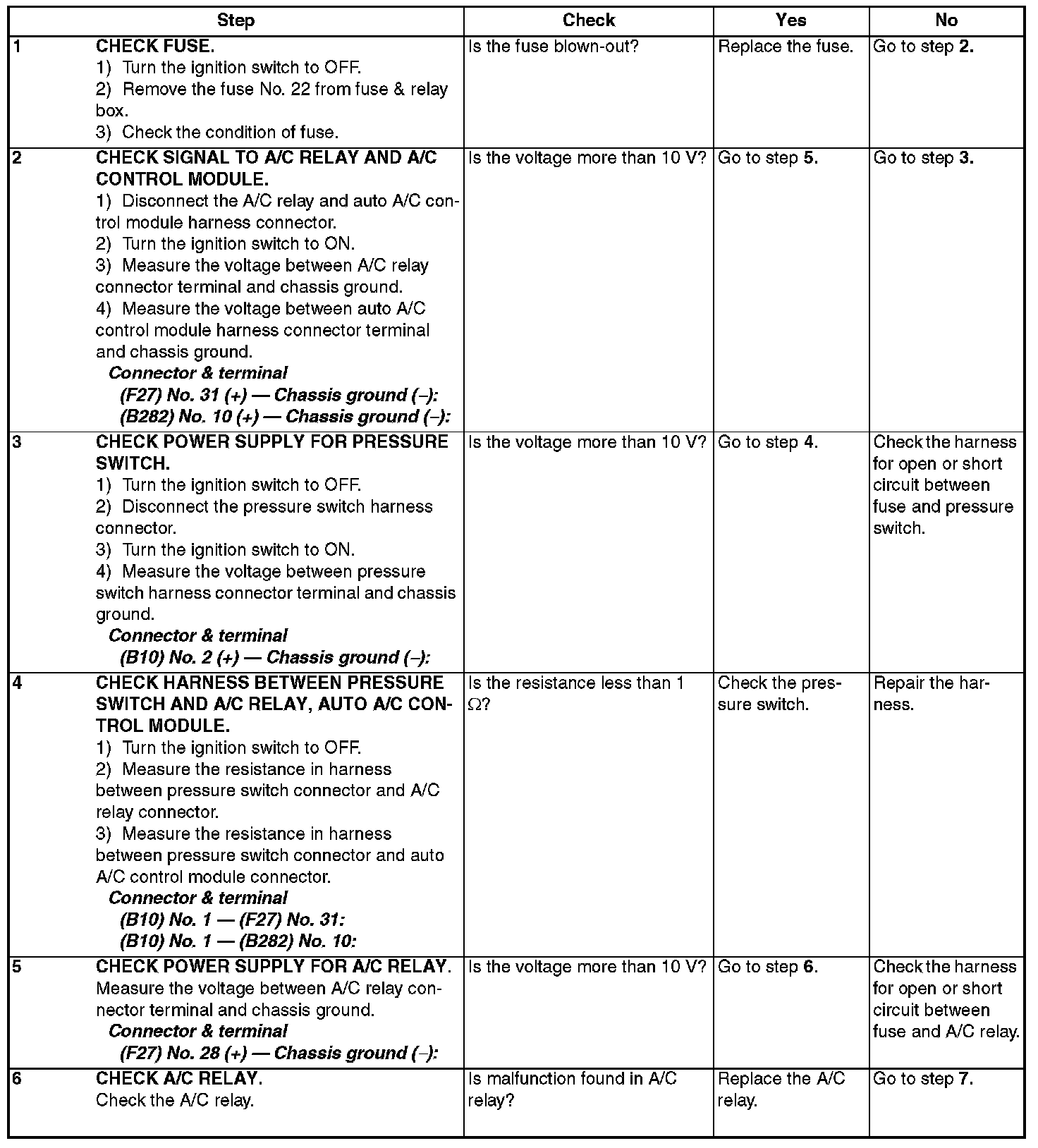

Step 1 - 6:

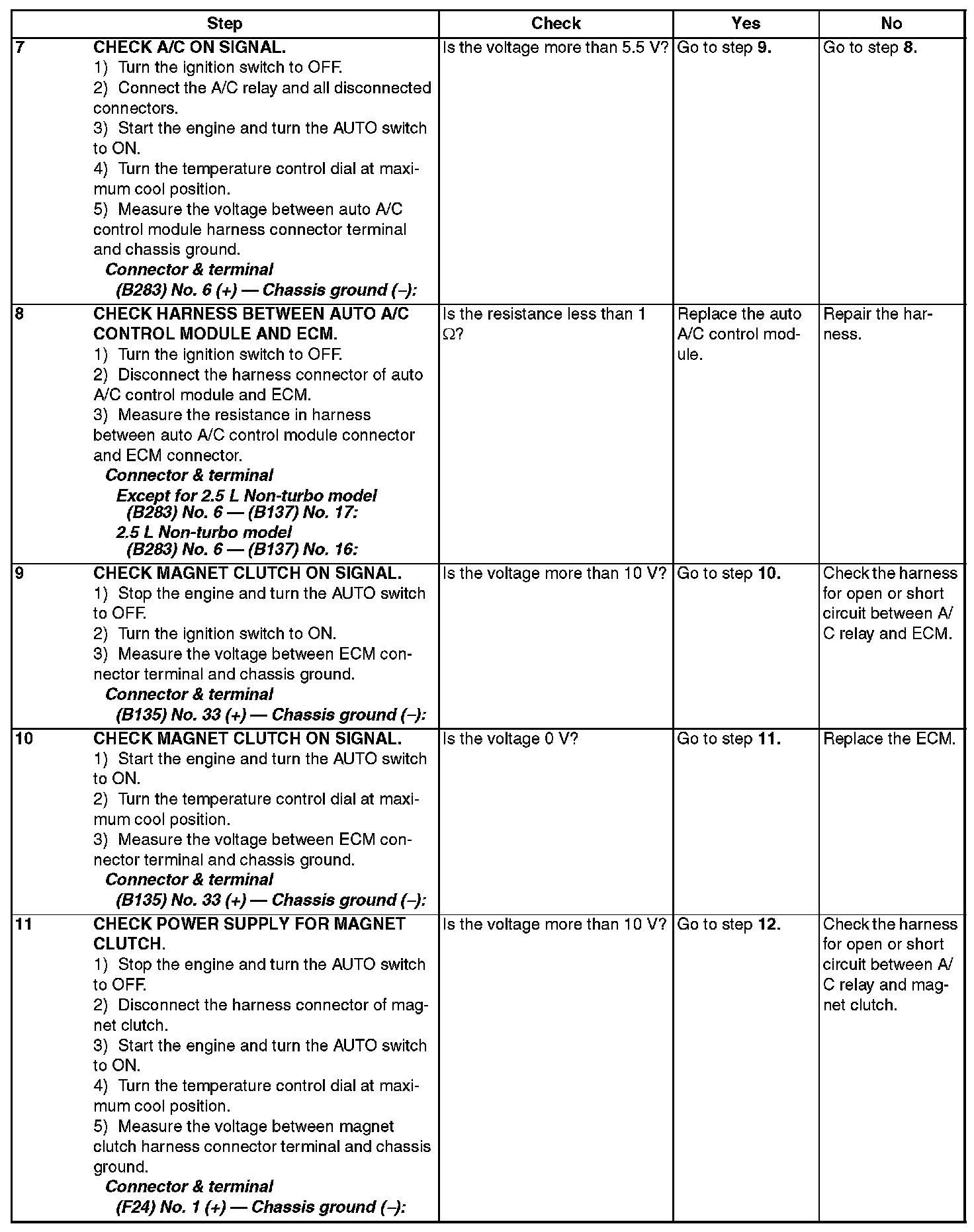

Step 7 - 11:

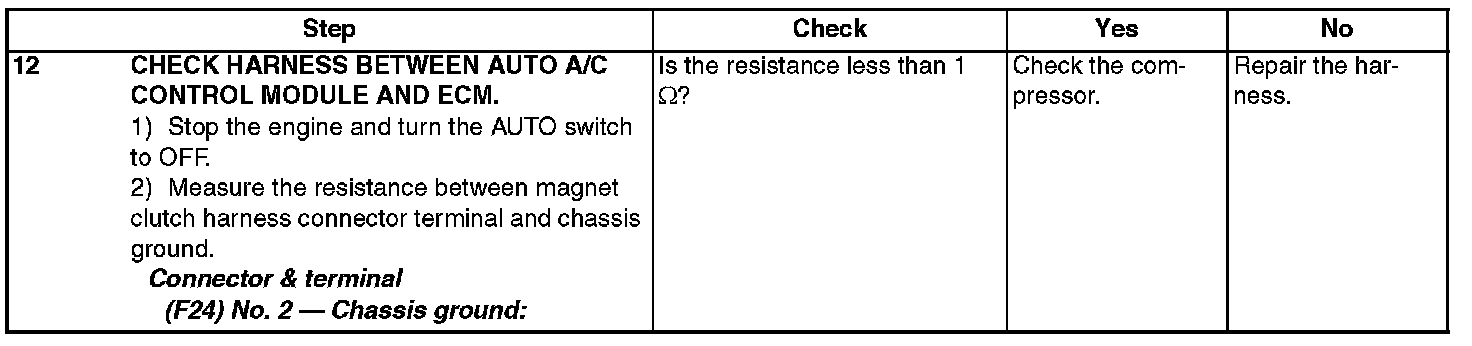

Step 12:
