Home >> Subaru >> 2005 >> Legacy F6-3.0L >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> HVAC System (Auto A/C) (Diagnostics) >> Diagnosis By Symptom

Diagnosis By Symptom

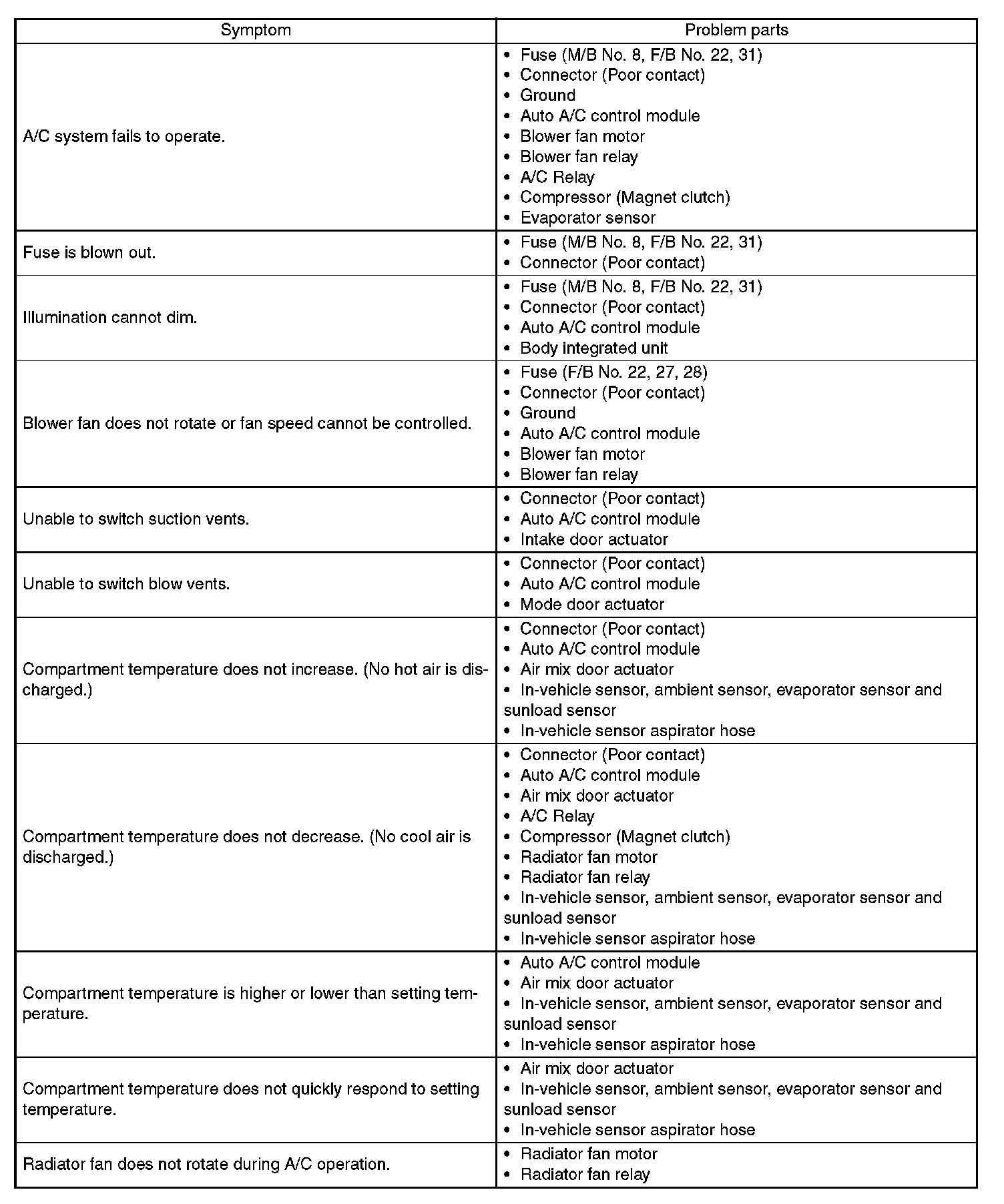

Symptom Chart:
