In-Vehicle Sensor

IN-VEHICLE SENSOR

TROUBLE SYMPTOM:
Blower fan speed, outlet port and inlet port do not change after turning the AUTO switch to ON.

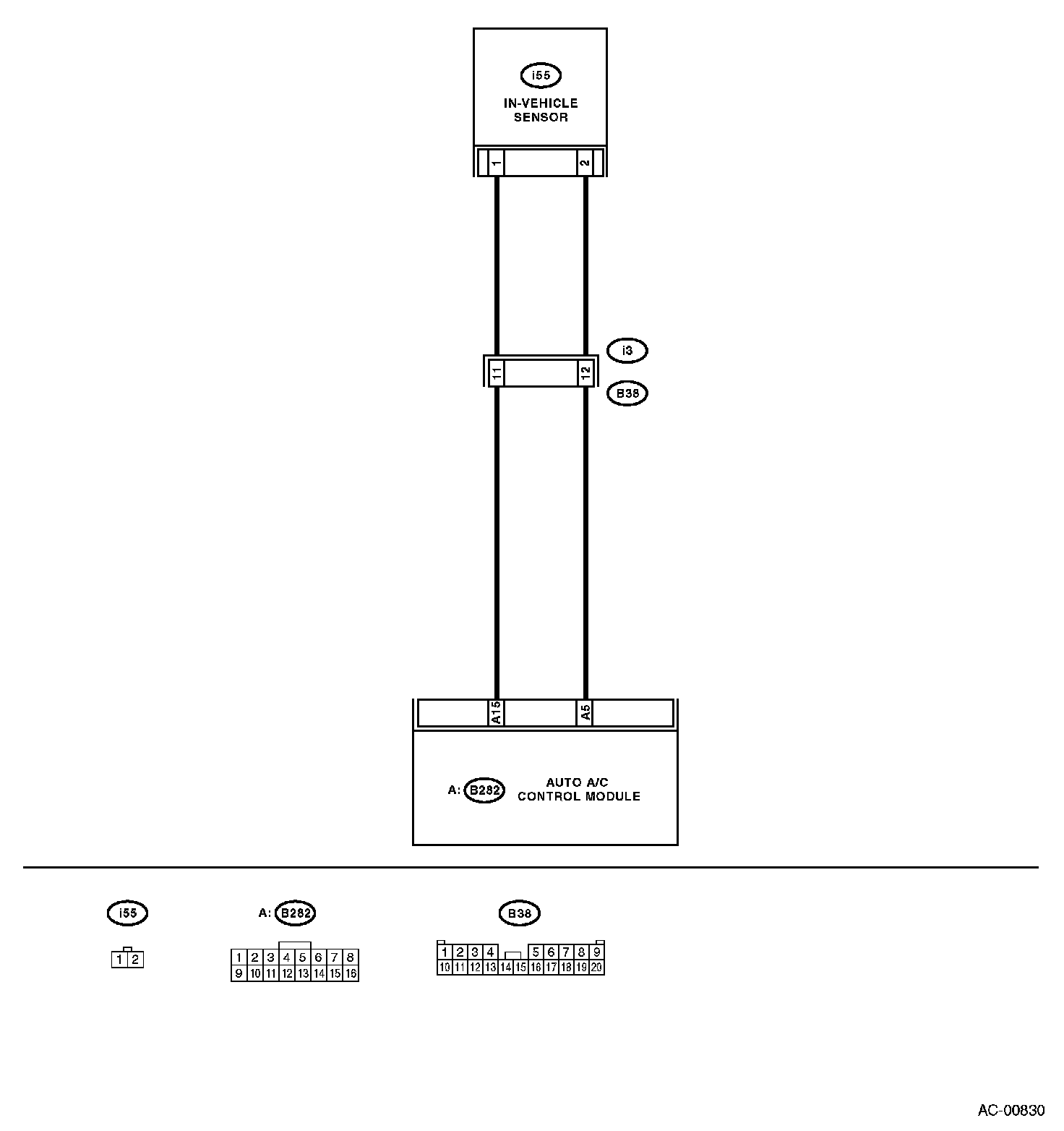

Wiring Diagram:

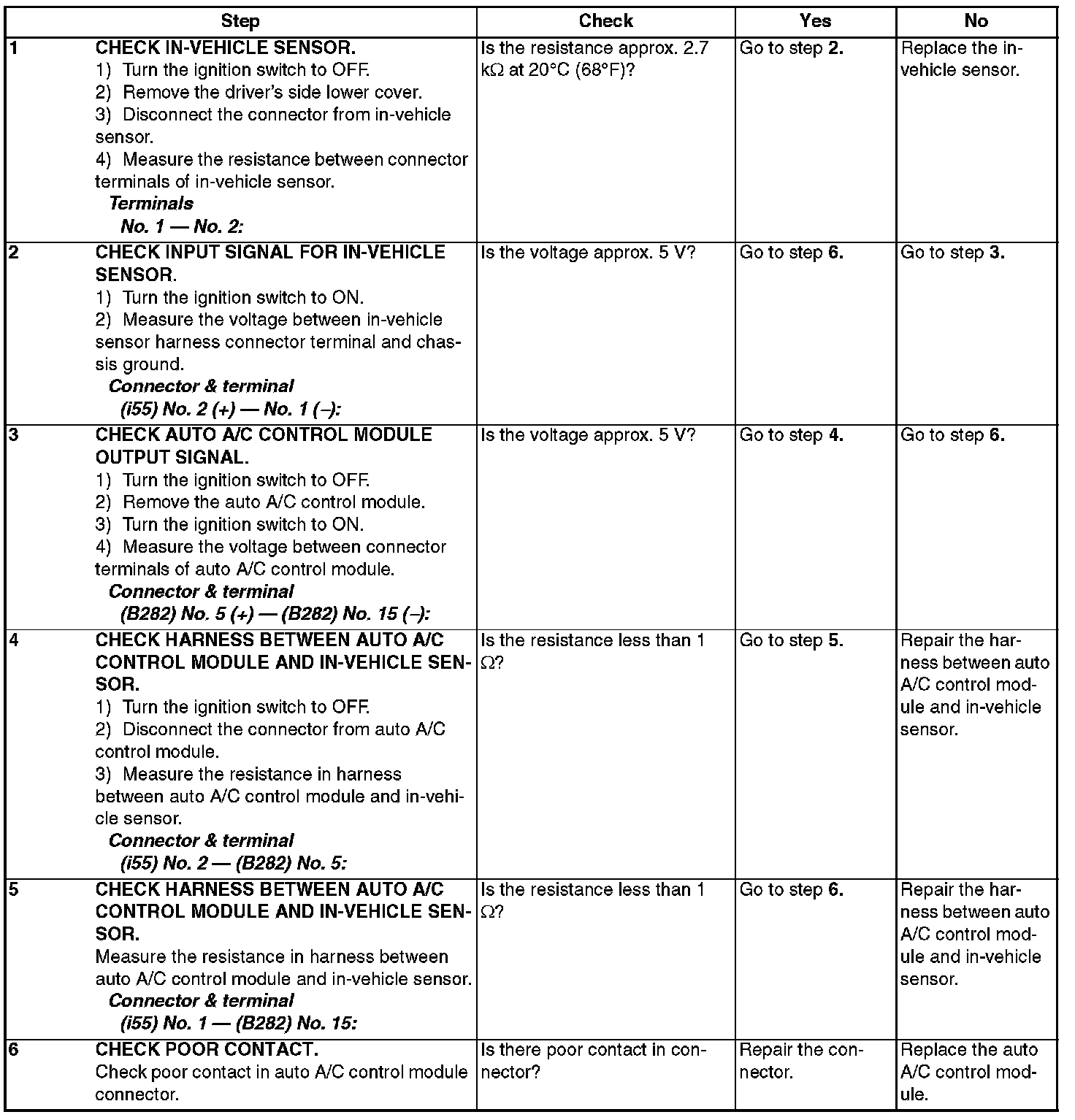

Step 1 - 6:
