Legacy F6-3.0L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Diagnostic Procedure For Sensors
>>
Evaporator Sensor
Evaporator Sensor
EVAPORATOR SENSOR

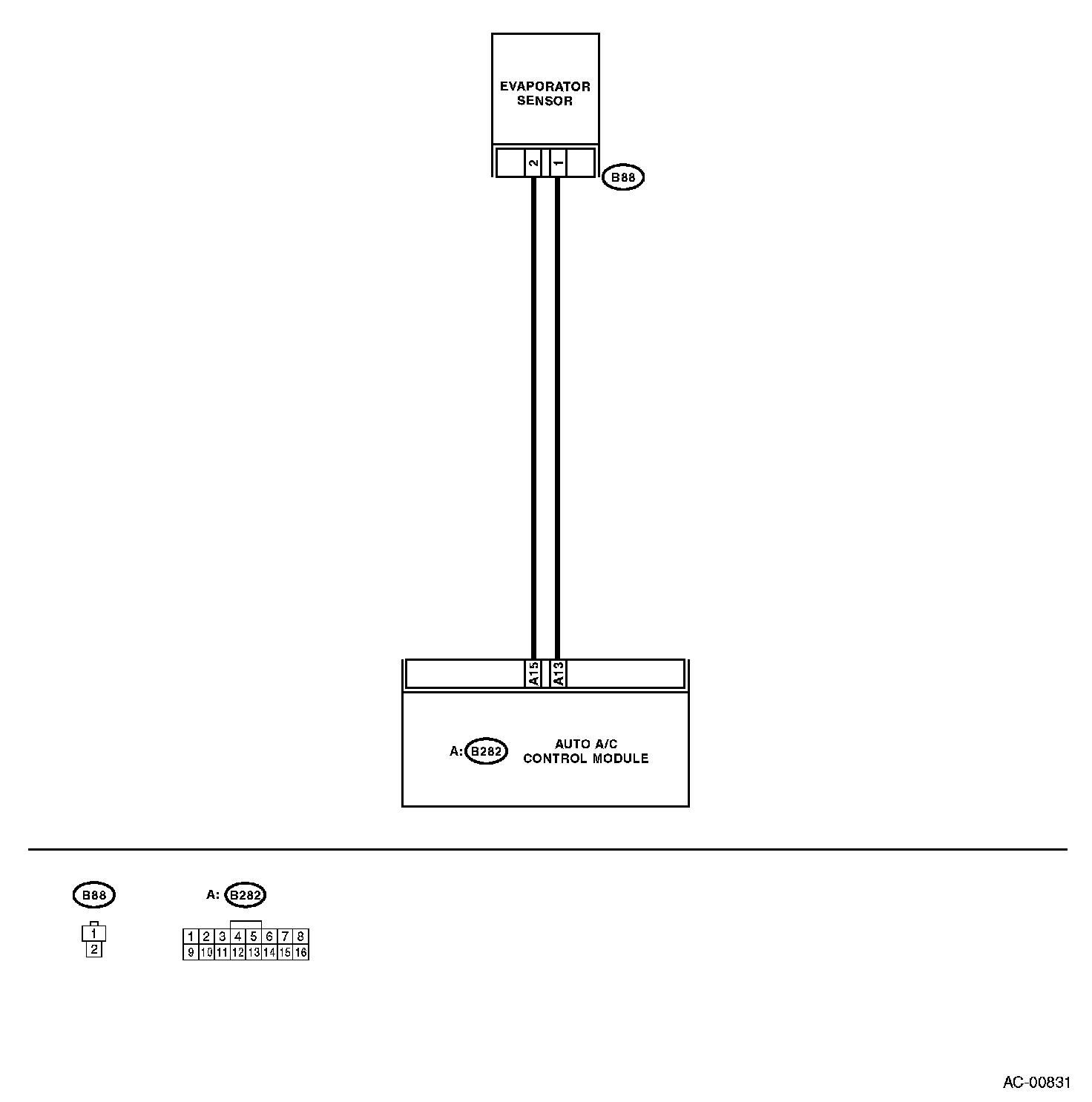

Wiring Diagram:

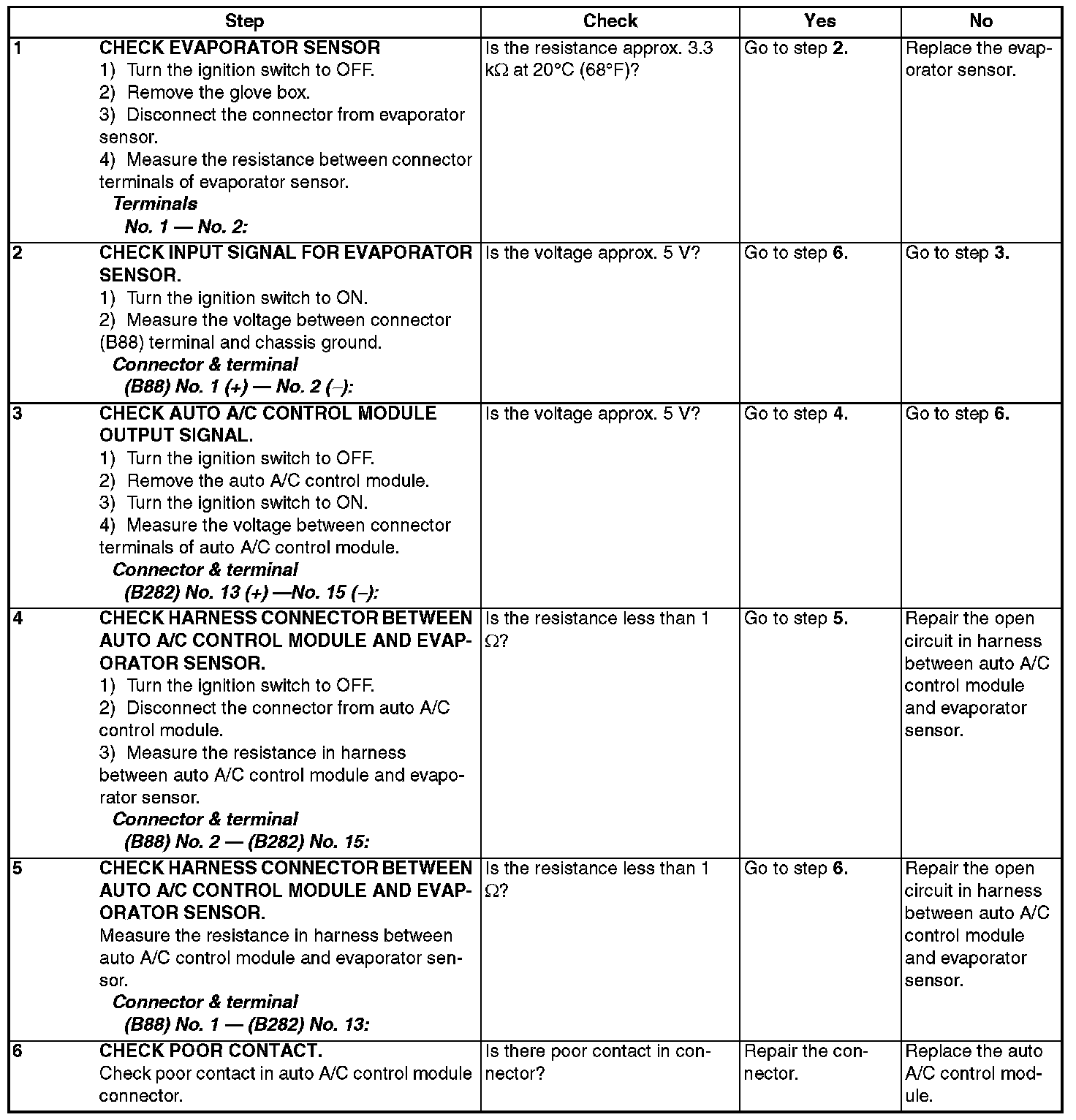

Step 1 - 6:
