Ambient Sensor

AMBIENT SENSOR

TROUBLE SYMPTOM:
Fan speed is not switched when the fan speed control dial is in AUTO position.

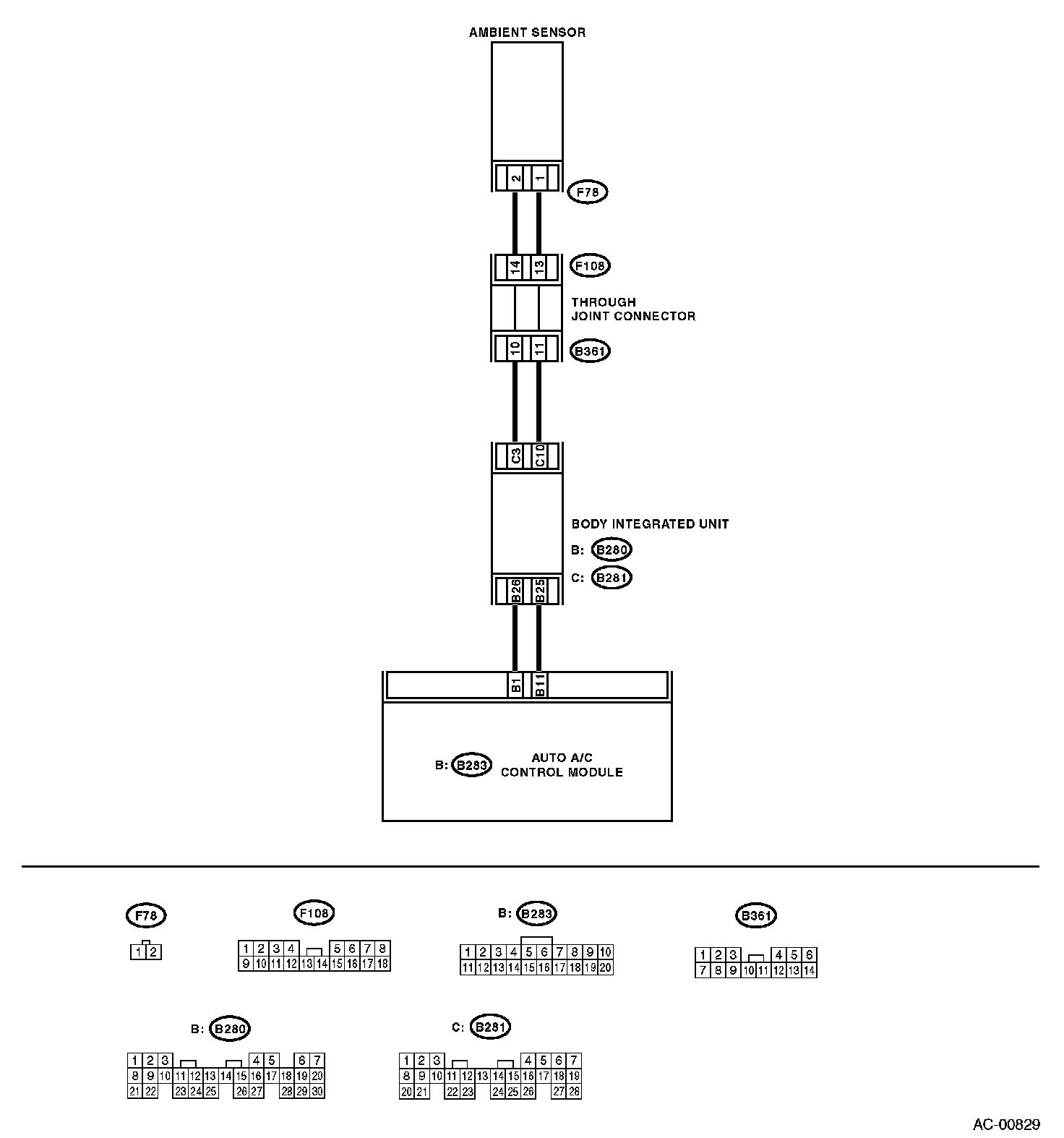

Wiring Diagram:

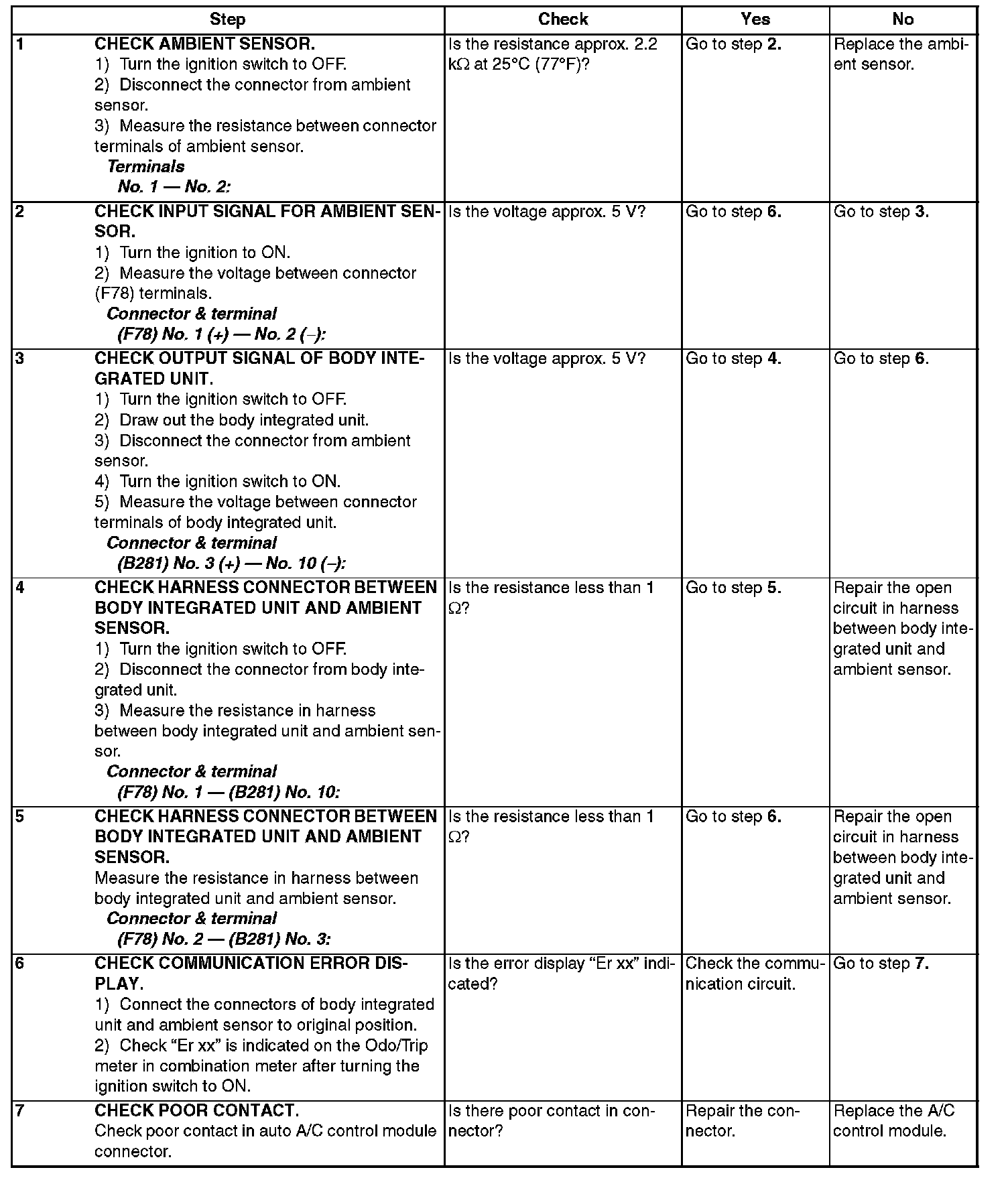

Step 1 - 7:
