Diagnostic Procedure For Actuators
>>
Air Mix Door Actuator
Air Mix Door Actuator
AIR MIX DOOR ACTUATOR
TROUBLE SYMPTOM:
Outlet air temperature does not change.

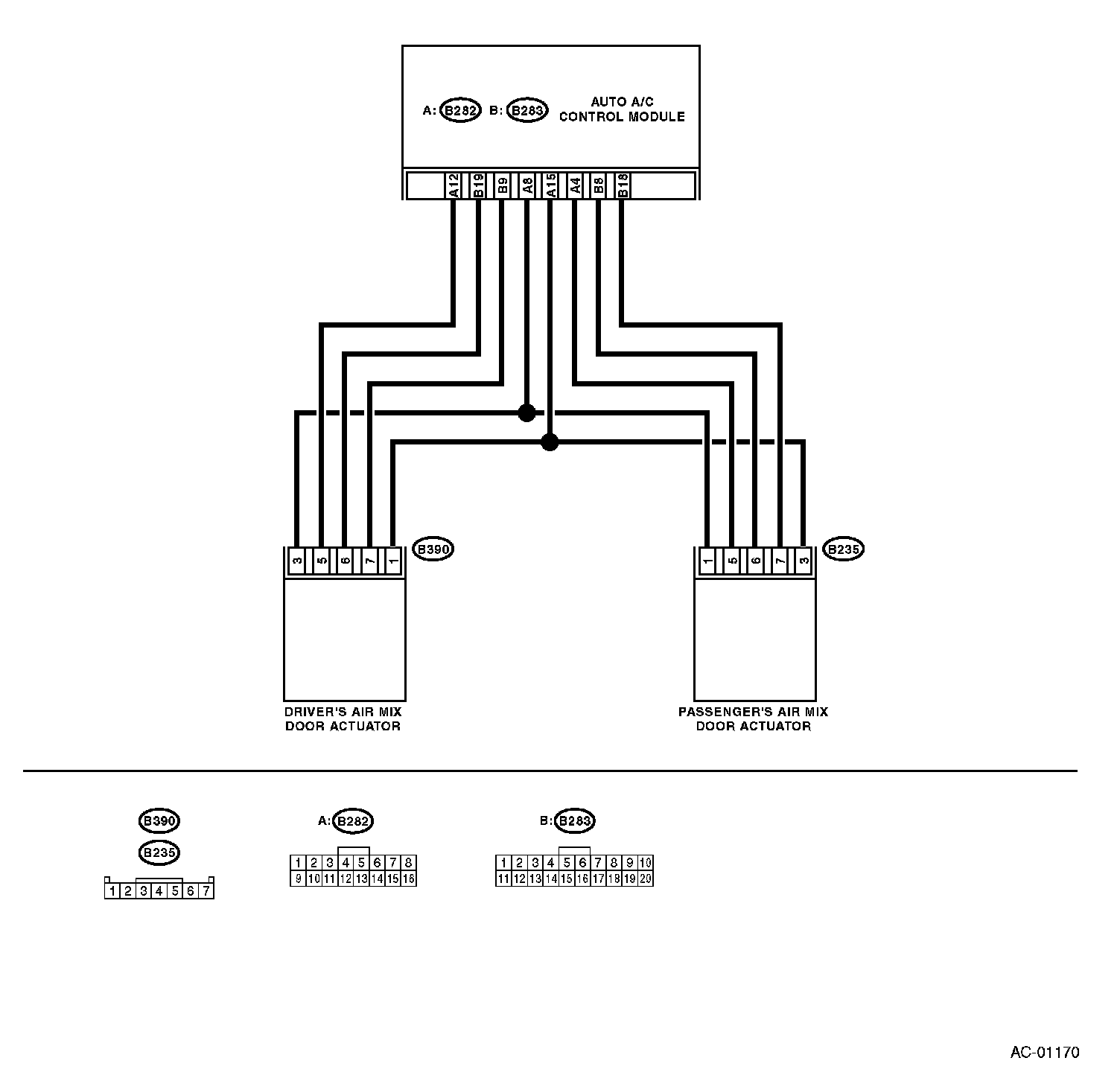

Wiring Diagram:

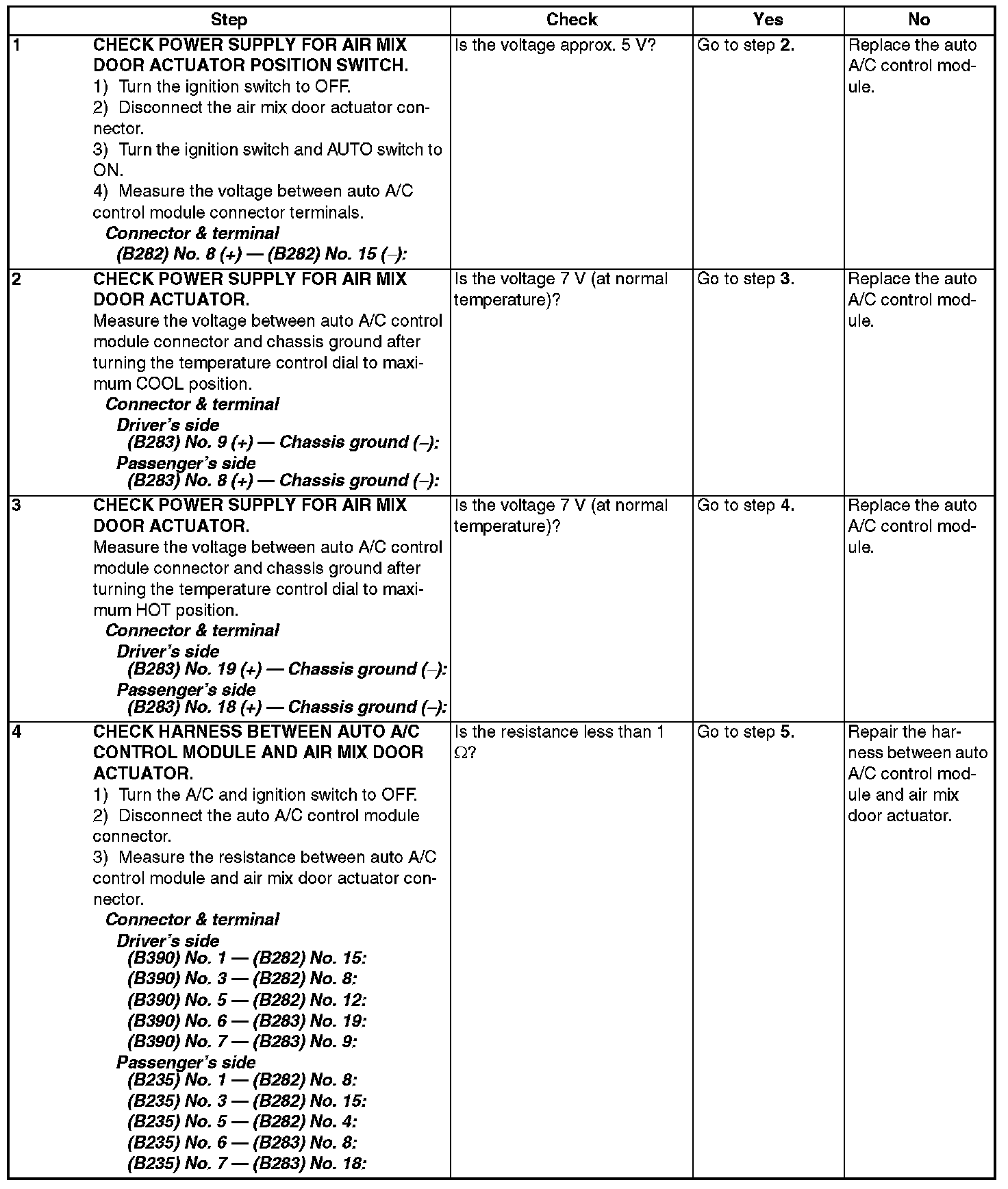

Step 1 - 4:

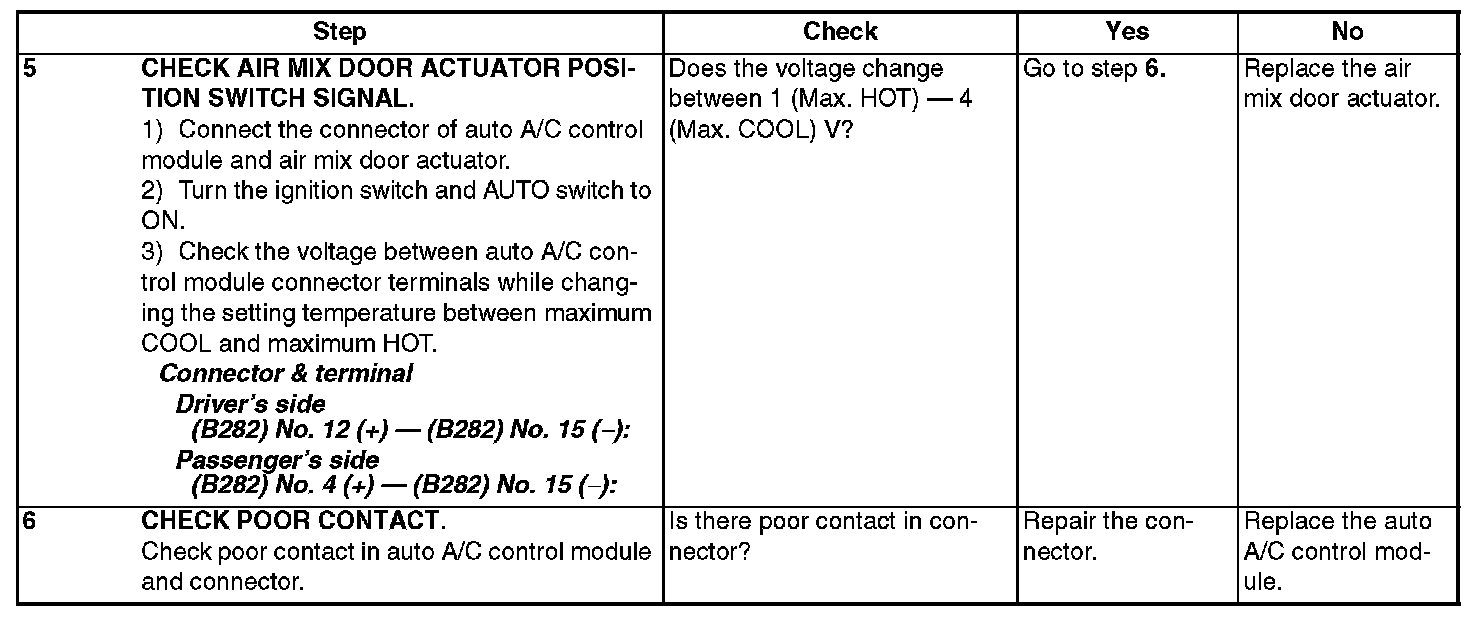

Step 5 - 6:
