Home >> Subaru >> 2005 >> Legacy F6-3.0L >> Repair and Diagnosis >> Heating and Air Conditioning >> Description and Operation >> Automatic Air Conditioning >> General

General

GENERAL

When the AUTO mode is selected, the automatic air conditioner controls the air temperature and air flow rate automatically.

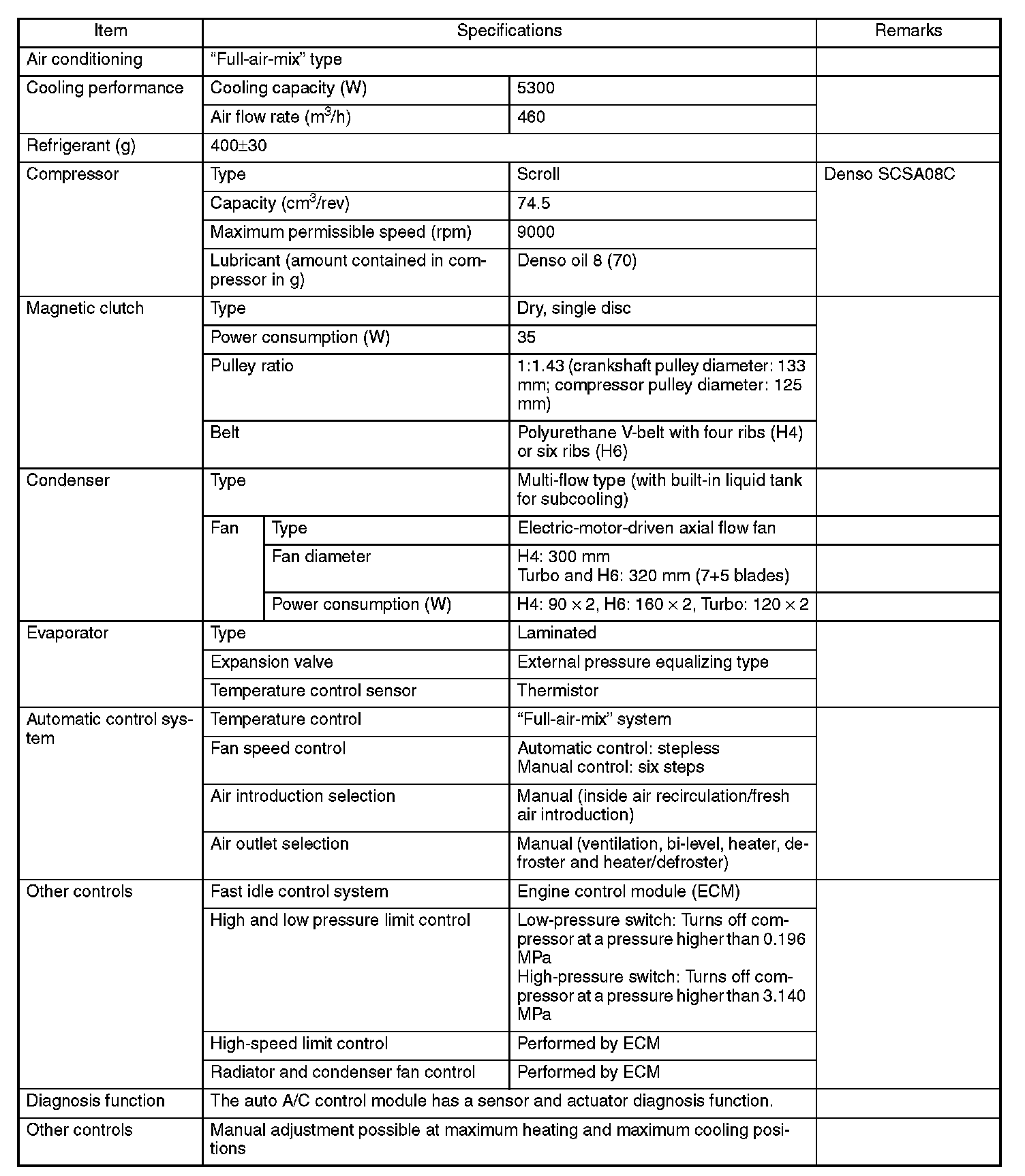

SPECIFICATIONS
