Blower Fan Does Not Rotate

BLOWER FAN DOES NOT ROTATE.

TROUBLE SYMPTOM:
- Blower motor does not rotate.
- Blower motor does not rotate in "HI".

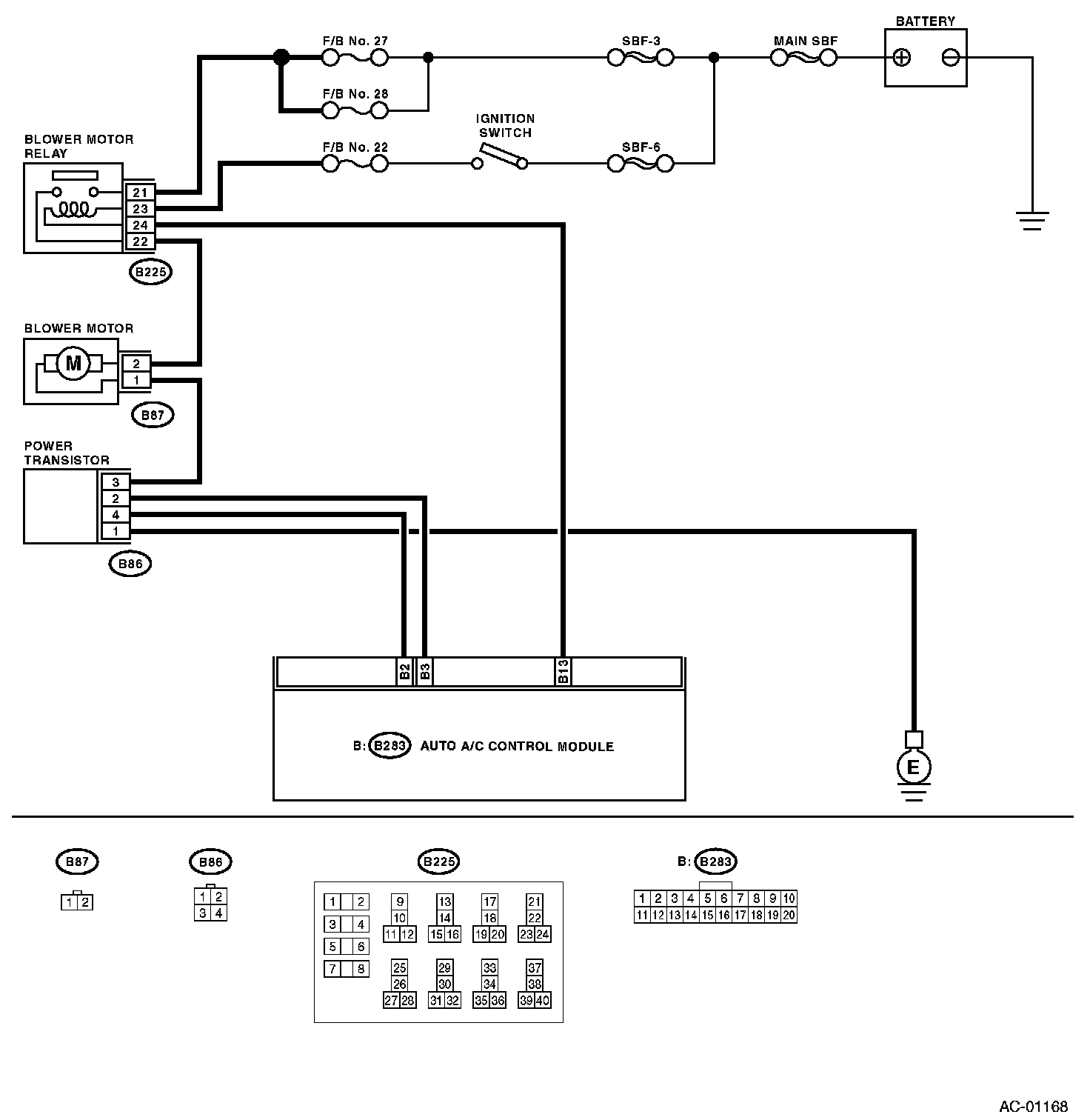

Wiring Diagram:

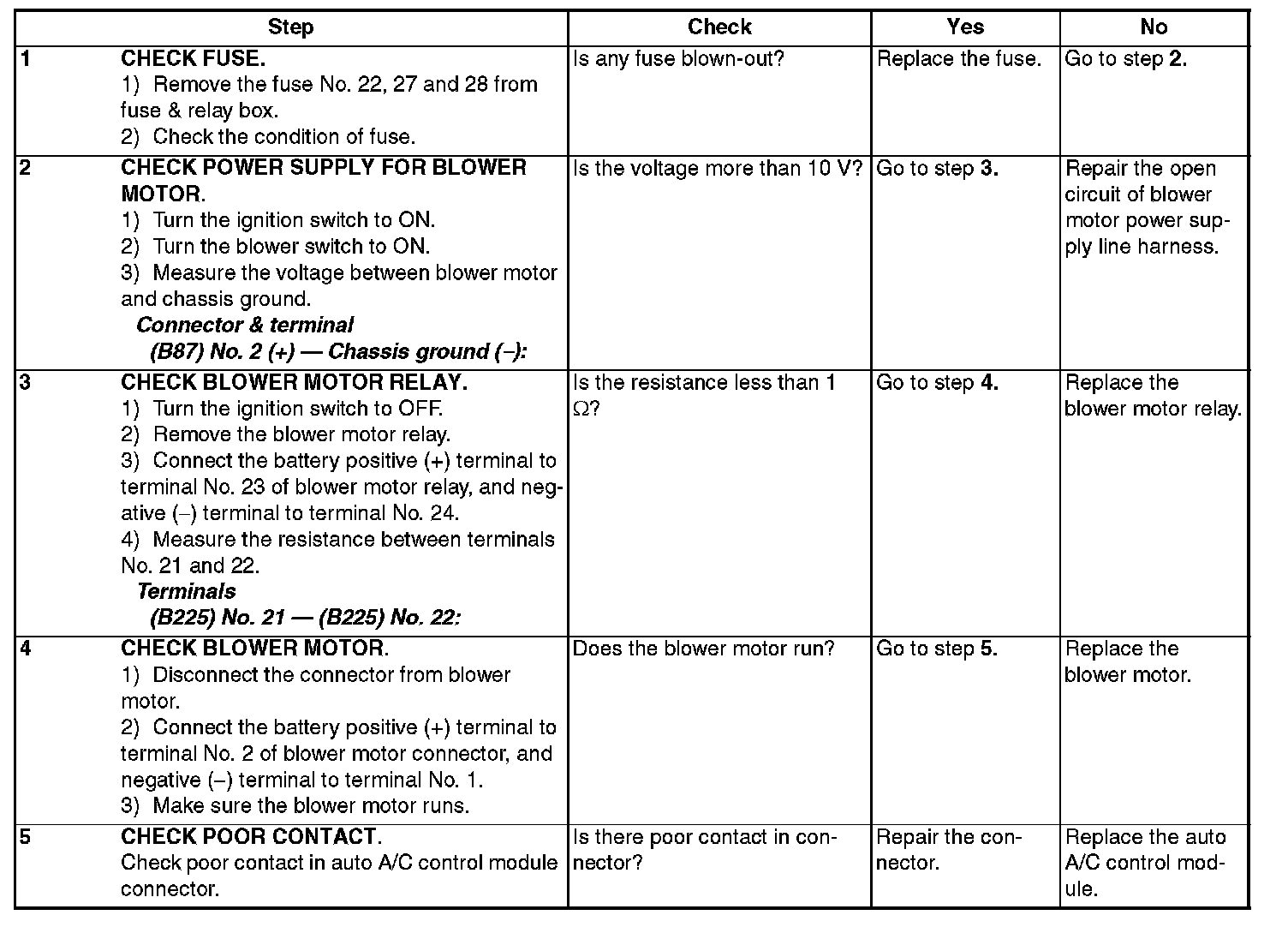

Step 1 - 5:
