Blower Motor Unit Assembly
Blower Motor Unit AssemblyREMOVAL
1. Disconnect the ground cable from battery.
2. Remove the glove box.
3. Disconnect the connectors of A/C control module, intake door actuator, blower motor, power transistor and blower resistor.

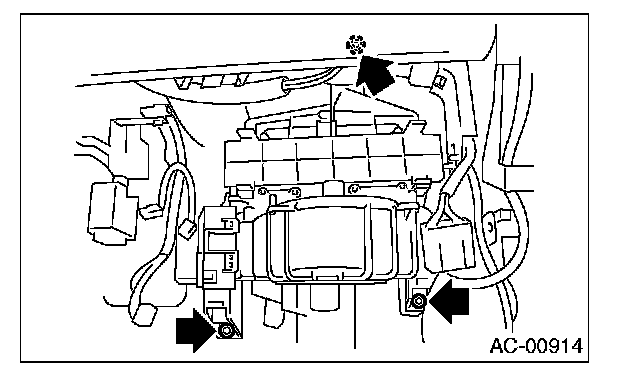

4. Loosen the bolts and nut to remove blower motor unit assembly.
INSTALLATION
Install in the reverse order of removal.
Tightening torque:
T: 7.5 N.m (0.76 kgf-m, 5.5 ft-lb)
