Air Door Actuator / Motor: Service and Repair

Actuator

REMOVAL

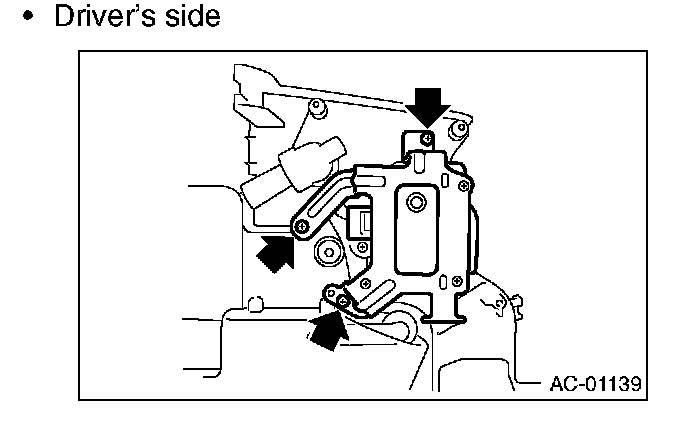

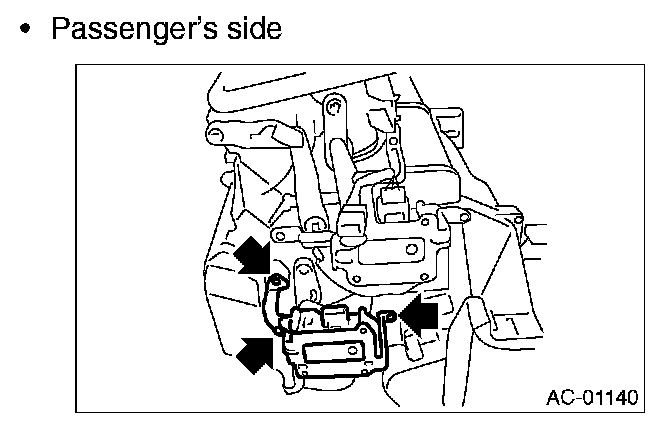

1. MODE DOOR ACTUATOR
Disconnect the connector, remove the screw, and then remove the mode door actuator from heater and cooling unit.

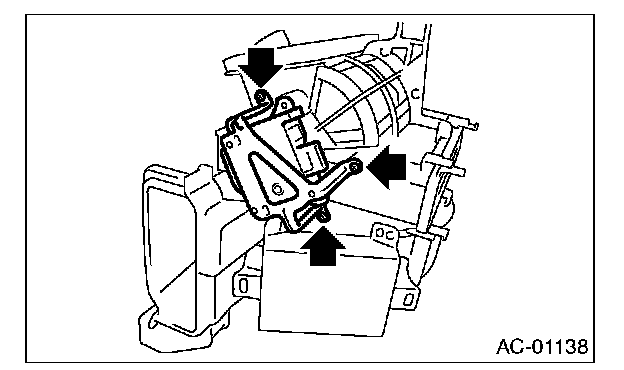

2. INTAKE DOOR ACTUATOR
Disconnect the connector, remove the screw, and then remove the intake door actuator from blower motor unit.

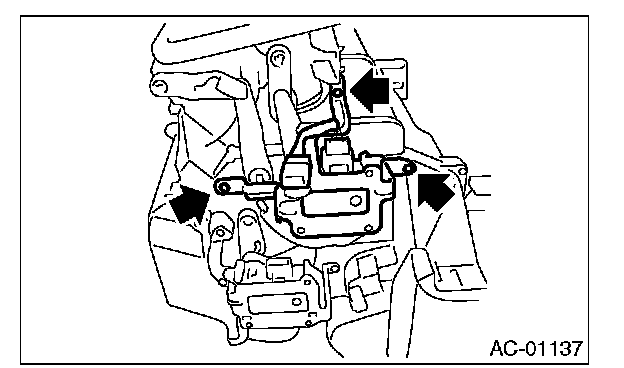

3. AIR MIX DOOR ACTUATOR (AUTO A/C MODEL)
Disconnect the connector, remove the screw, and then remove the air mix door actuator from heater and cooling unit.

INSTALLATION
Install in the reverse order of removal.
