Heat Shield: Service and Repair

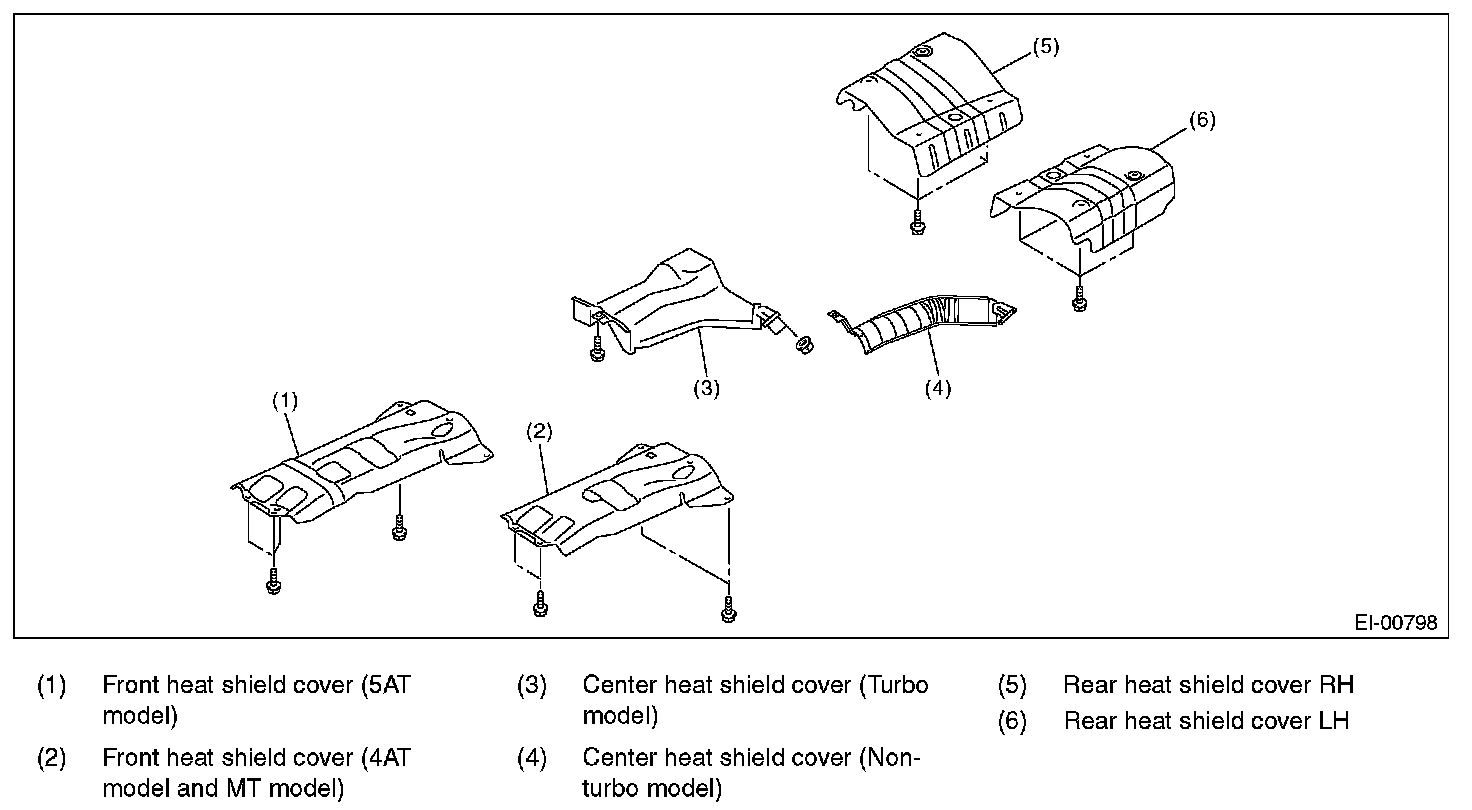

HEAT SHIELD COVER

Heat Shield Cover:

REMOVAL

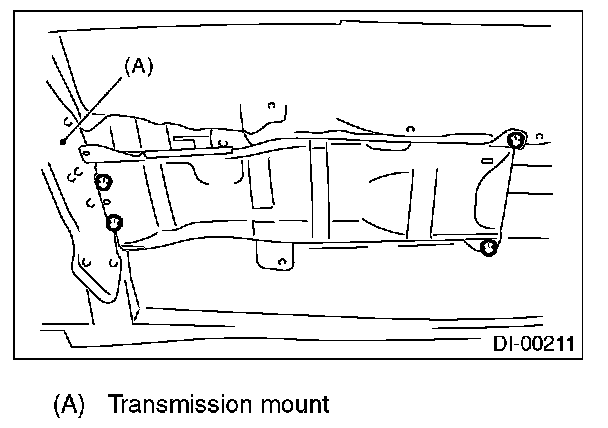

1. FRONT HEAT SHIELD COVER

Remove the four bolts to remove front heat shield cover.

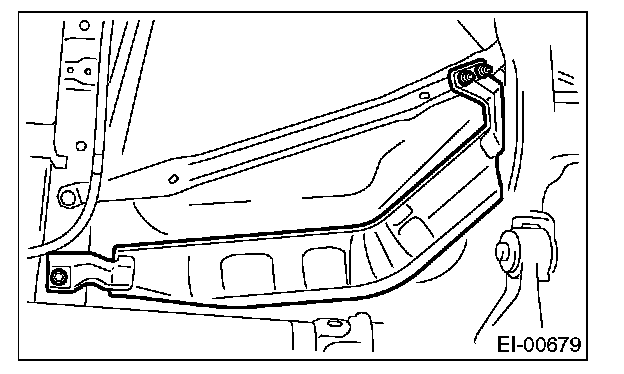

2. CENTER HEAT SHIELD COVER

Remove the nut and bolt to remove center heat shield cover.

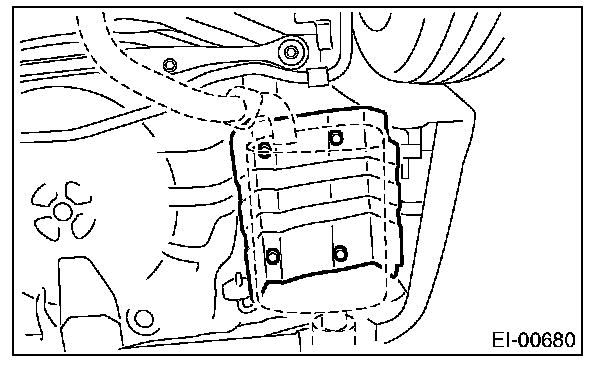

3. REAR HEAT SHIELD COVER

1. Remove the muffler.
2. Remove the four bolts to remove rear heat shield cover.






INSTALLATION

Install in the reverse order of removal.
