Rear Exhaust Pipe

COMPONENT

REMOVAL

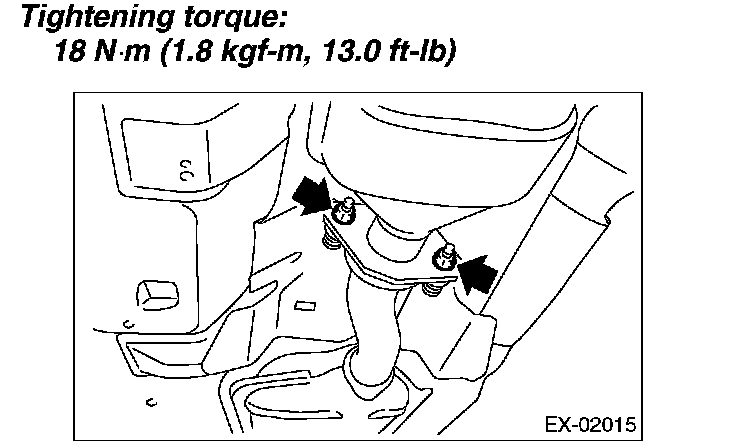

1. Separate the rear exhaust pipe from front exhaust pipe.

CAUTION: Be careful, exhaust pipe is hot.

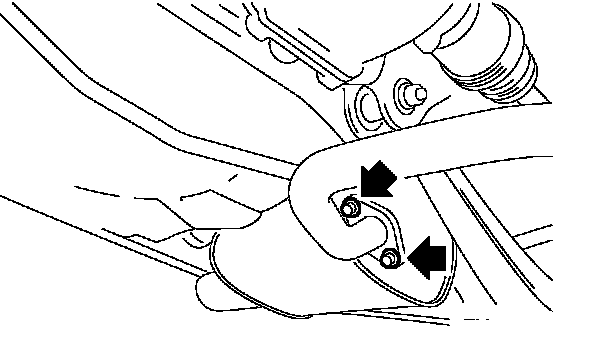

2. Separate the rear exhaust pipe from muffler.

CAUTION: Be careful not to pull down the rear exhaust pipe.

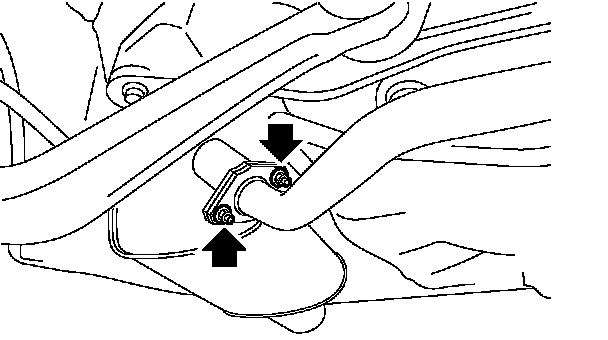

^ LH side





^ RH side
3. Apply a coat of spray type lubricant to the mating area of cushion rubber.

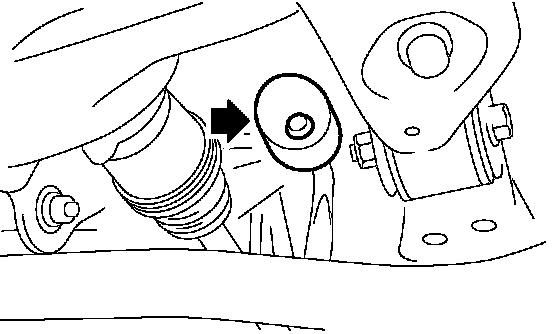

4. Remove the rear exhaust pipe bracket from cushion rubber.

INSTALLATION
1. Apply a coat of spray type lubricant to the mating area of cushion rubber.





2. Install the rear exhaust pipe bracket to cushion rubber.

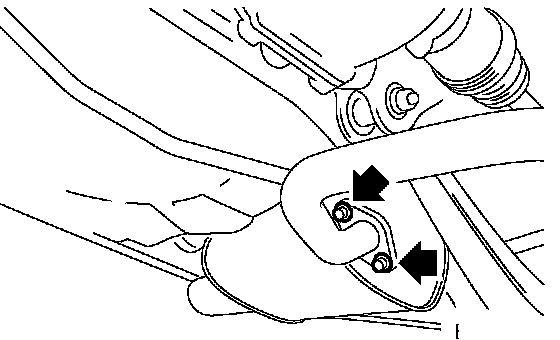

3. Install the rear exhaust pipe to muffler.

NOTE: Use a new gasket and self-locking nut.

Tightening torque: 48 Nm (4.9 kgf-m, 35.4 ft. lbs.)

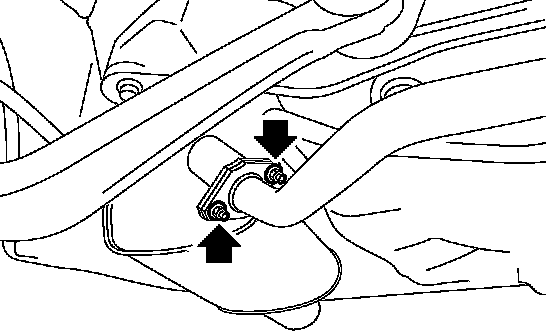

^ LH side





^ RH side

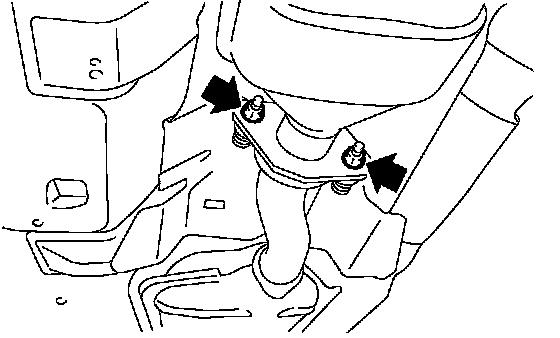

4. Install the rear exhaust pipe to center exhaust pipe.

INSPECTION
1. Make sure there are no exhaust leaks from connections and welds.
2. Make sure there are no holes or rusting.
3. Make sure the cushion rubber is not worn or cracked.
