Rear Chain Cover
REMOVAL1. Remove the crank pulley.
2. Remove the front chain cover.
3. Remove the timing chain.
4. Remove the cam sprocket.
5. Remove the crank sprocket.
6. Remove the oil pump.
7. Remove the water pump.
8. Remove the rear chain cover.

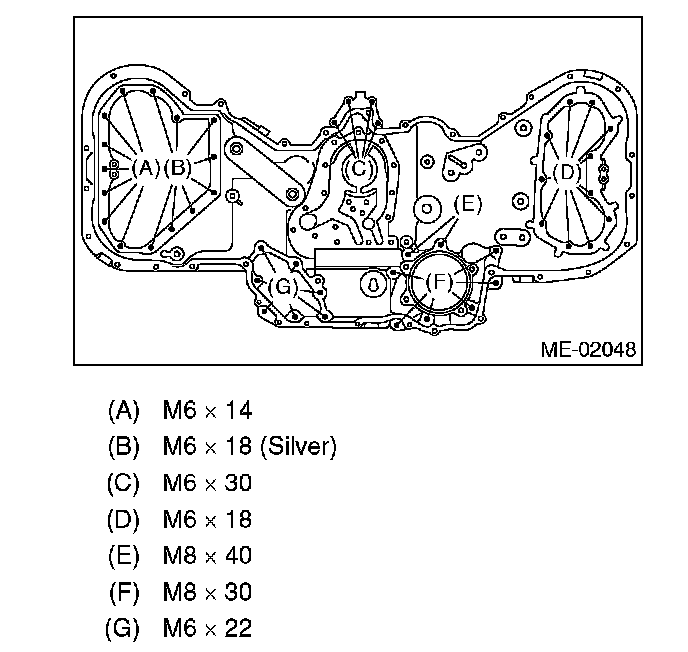

NOTE: Installation bolt has seven different sizes. To prevent the confusion in installation, keep these bolts on container individually.
INSTALLATION
1. Remove the used liquid gasket from mating surface, and degrease it.
2. Apply liquid gasket to the matching surface of rear chain cover.
Liquid gasket: THREE BOND 1280B (Part No. K0877A018)

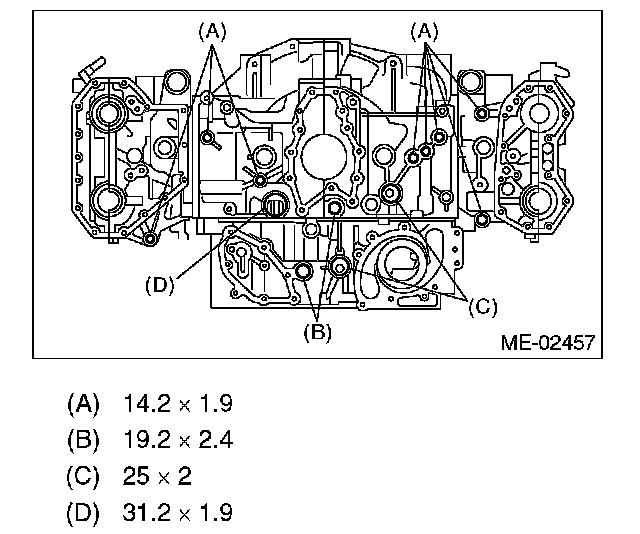

3. Install the O-ring.
NOTE:
^ Do not reuse the O-ring.
^ Do not install the O-ring in wrong place.
4. Temporarily tighten the rear chain cover.

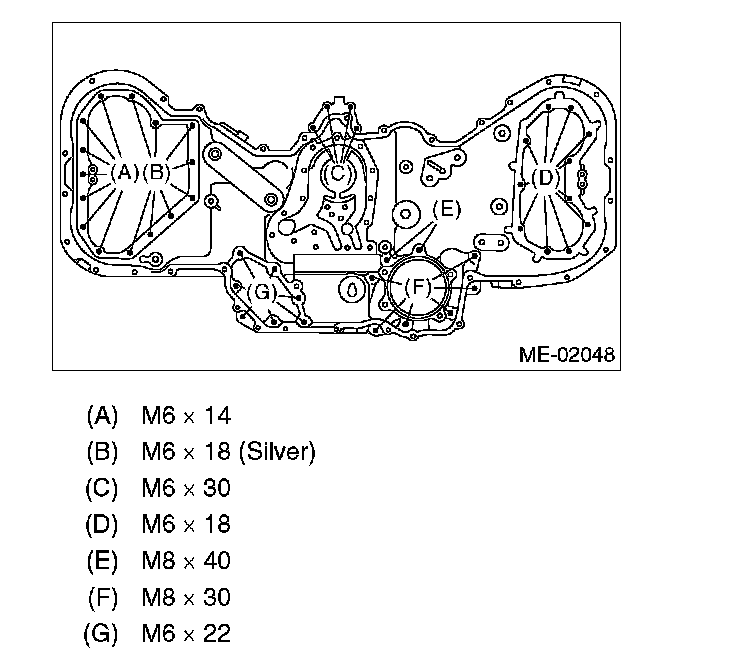

NOTE: Do not install the bolts in wrong place.
5. Tighten the bolts in the numerical order as shown in the figure.
Tightening torque
6. Install the water pump.
7. Install the oil pump.
8. Install the crank sprocket.
9. Install the cam sprocket.
10. Install the timing chain.
11. Install the front chain cover.
12. Install the crank pulley.
