Disassembly and Assembly
Intake ManifoldDISASSEMBLY
1. Remove the engine harness from intake manifold.
2. Remove the throttle body.
3. Disconnect the pressure regulator vacuum hose from intake manifold.
4. Remove the manifold absolute pressure sensor.
5. Remove the purge control solenoid valve.

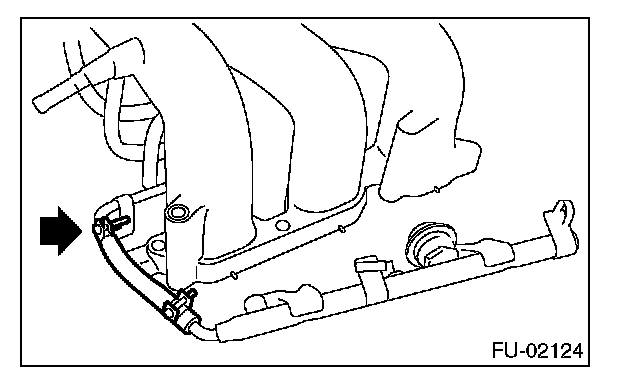

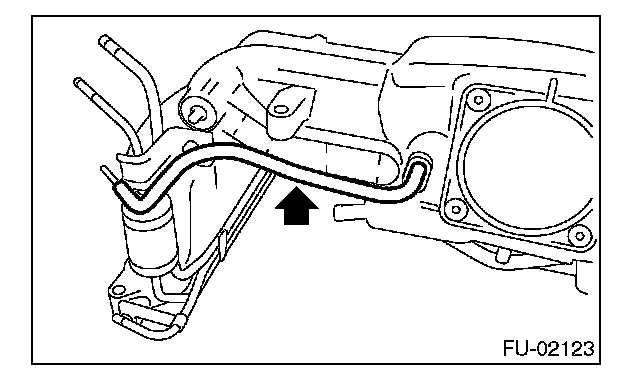

6. Loosen the clamp which holds fuel injector pipe to fuel hose, and then disconnect the pipe from fuel hose.

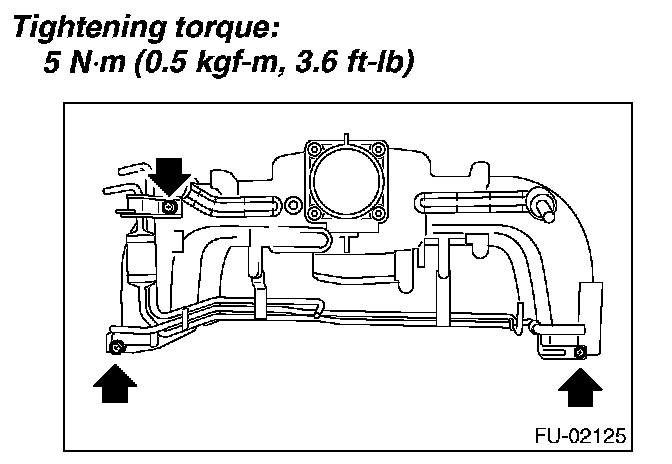

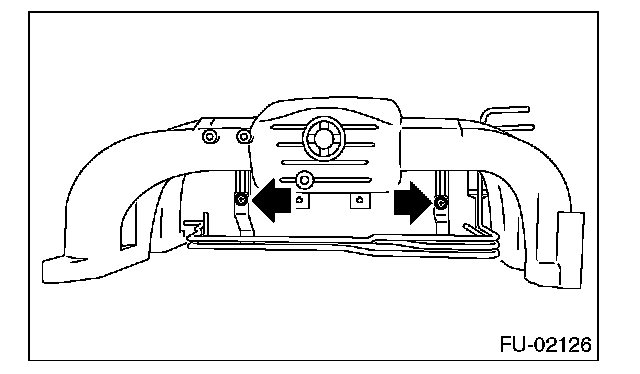

7. Remove the bolts which install fuel pipes on intake manifold.
ASSEMBLY
NOTE: When assembling the nipple, apply liquid gasket.
Liquid gasket: THREE BOND 1105 (Part No. 004403010)

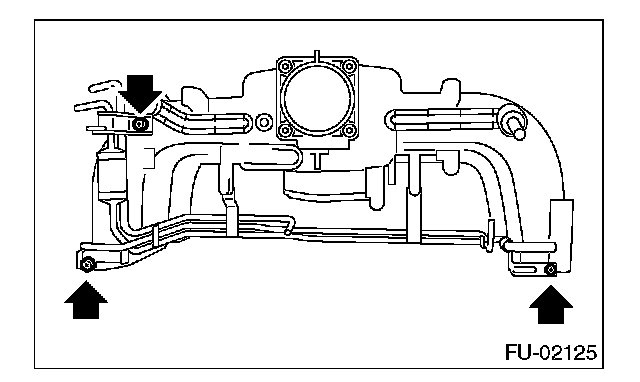

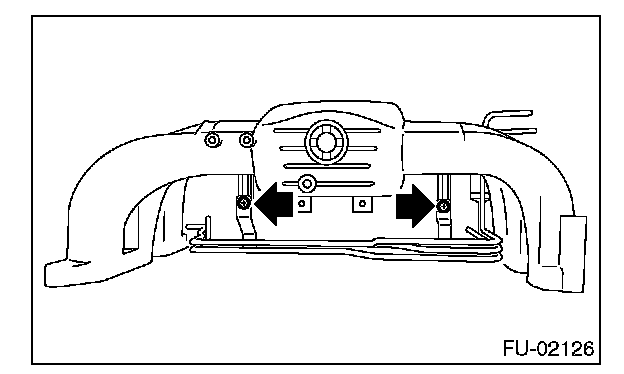

1. Tighten the bolts which install fuel pipes on intake manifold.

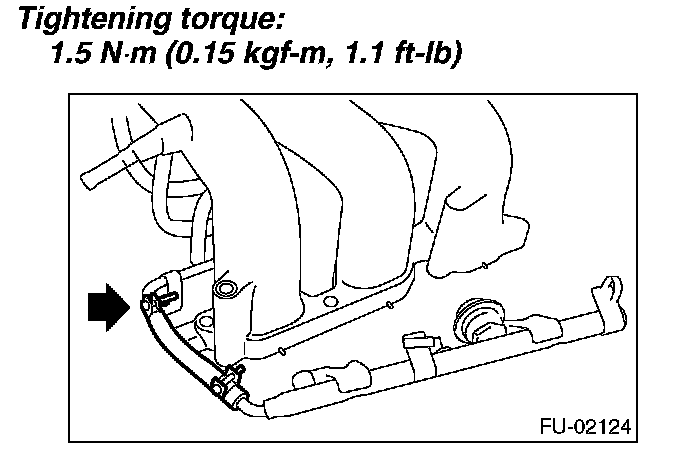

2. Connect the fuel injector pipe to fuel hose, and tighten the clamp screw.
3. Install the purge control solenoid valve.
4. Install the manifold absolute pressure sensor.
5. Connect the pressure regulator vacuum hose to intake manifold.
6. Install the throttle body to intake manifold.
7. Install the engine harness to intake manifold.
