Coolant Reservoir: Service and Repair

REMOVAL
1. Disconnect the over flow hose.

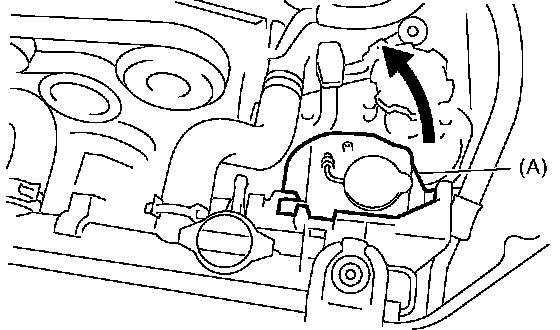

2. Pull out the reservoir tank to the direction of arrow while pushing the pawl (A).

INSTALLATION
Install in the reverse order of removal.

INSPECTION
Make sure the engine coolant level is between "FULL" and "LOW".
