Home
>>
Subaru
>>
2005
>>
Legacy F6-3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
Harness
Harness Component Location (Sedan Model):

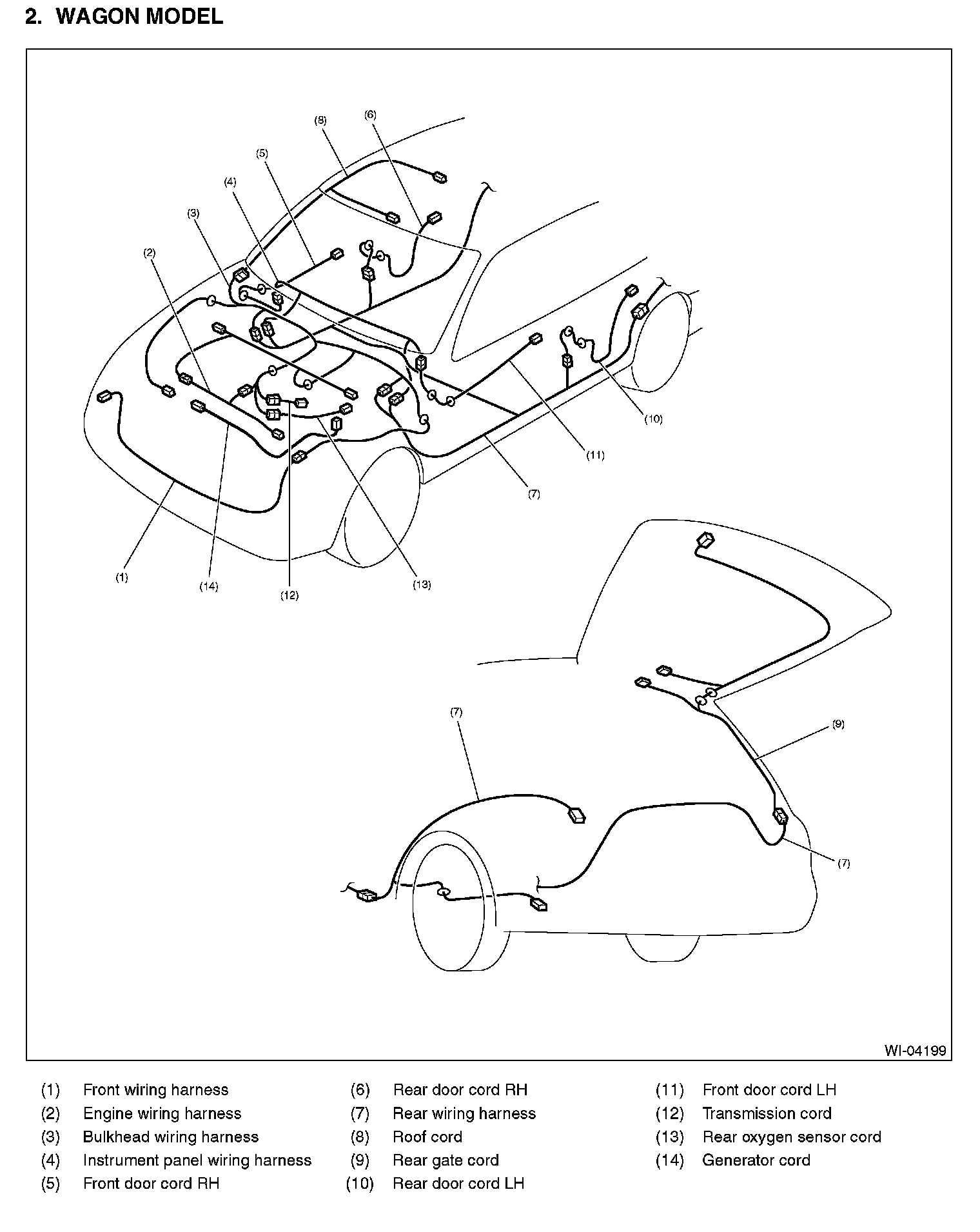

Harness Component Location (Wagon Model):
