Steering Gear
Steering Gear
POWER ASSISTED SYSTEM

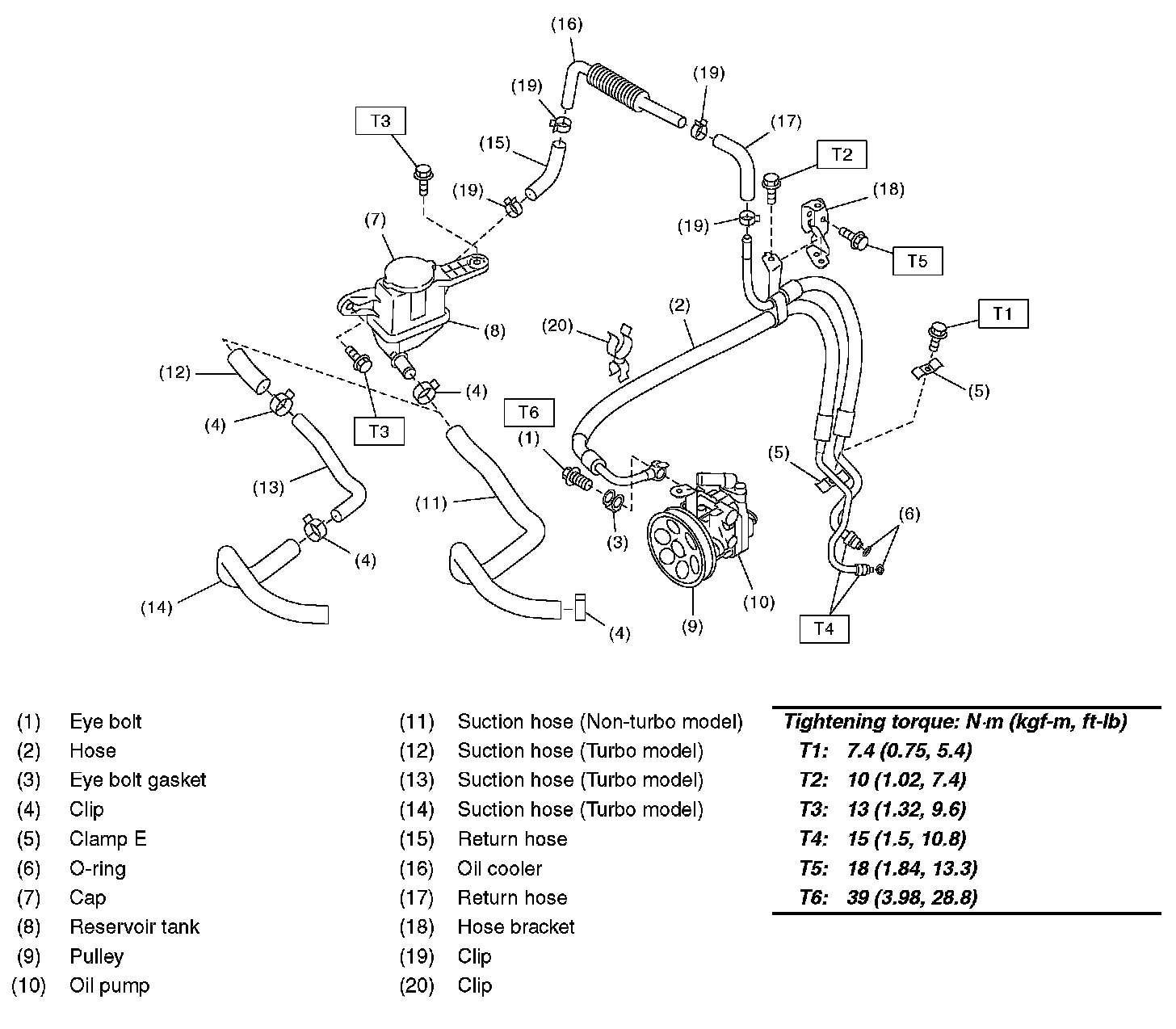

Hose and tank (H4 model)

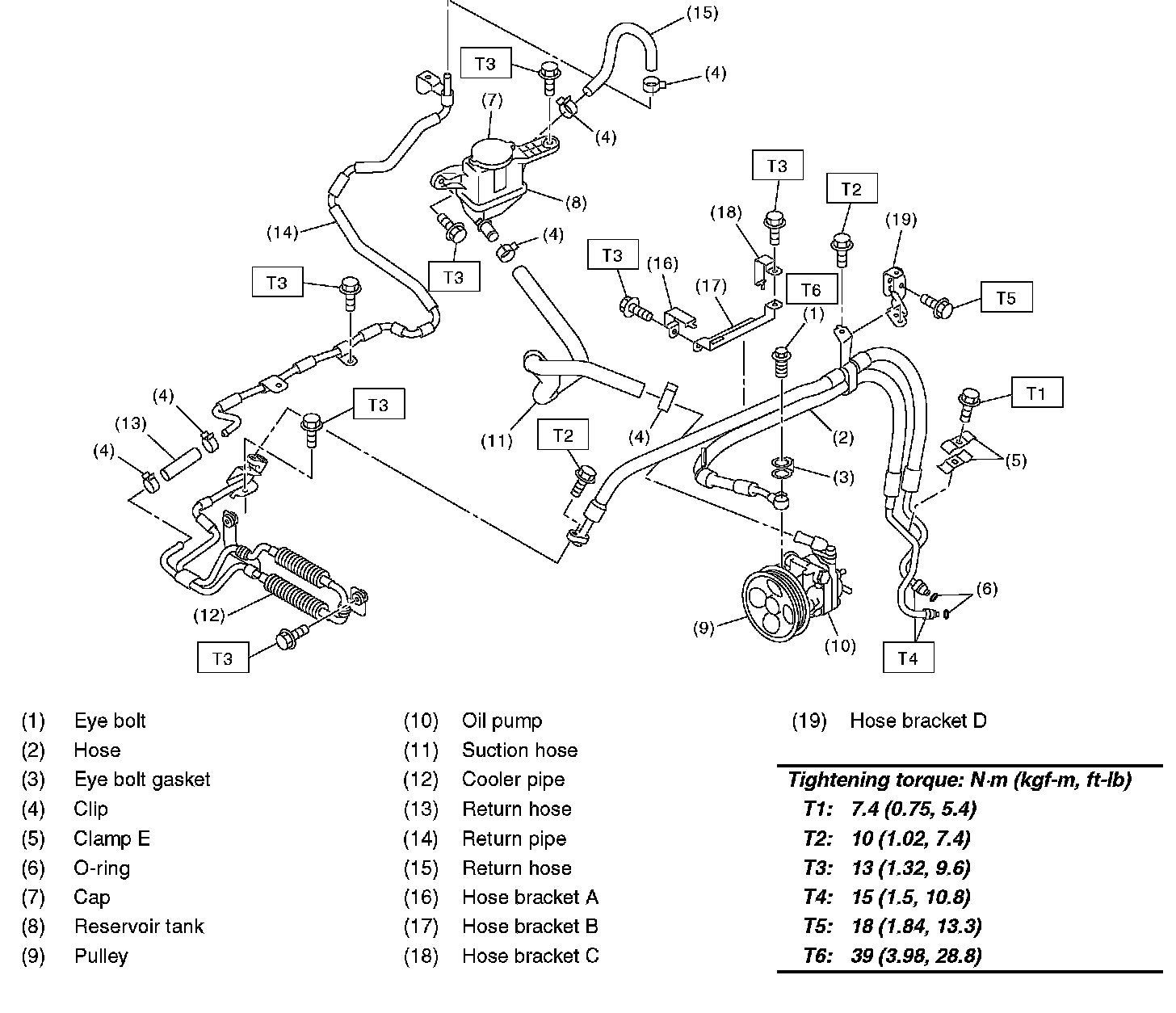

Hose and tank (H6 model)

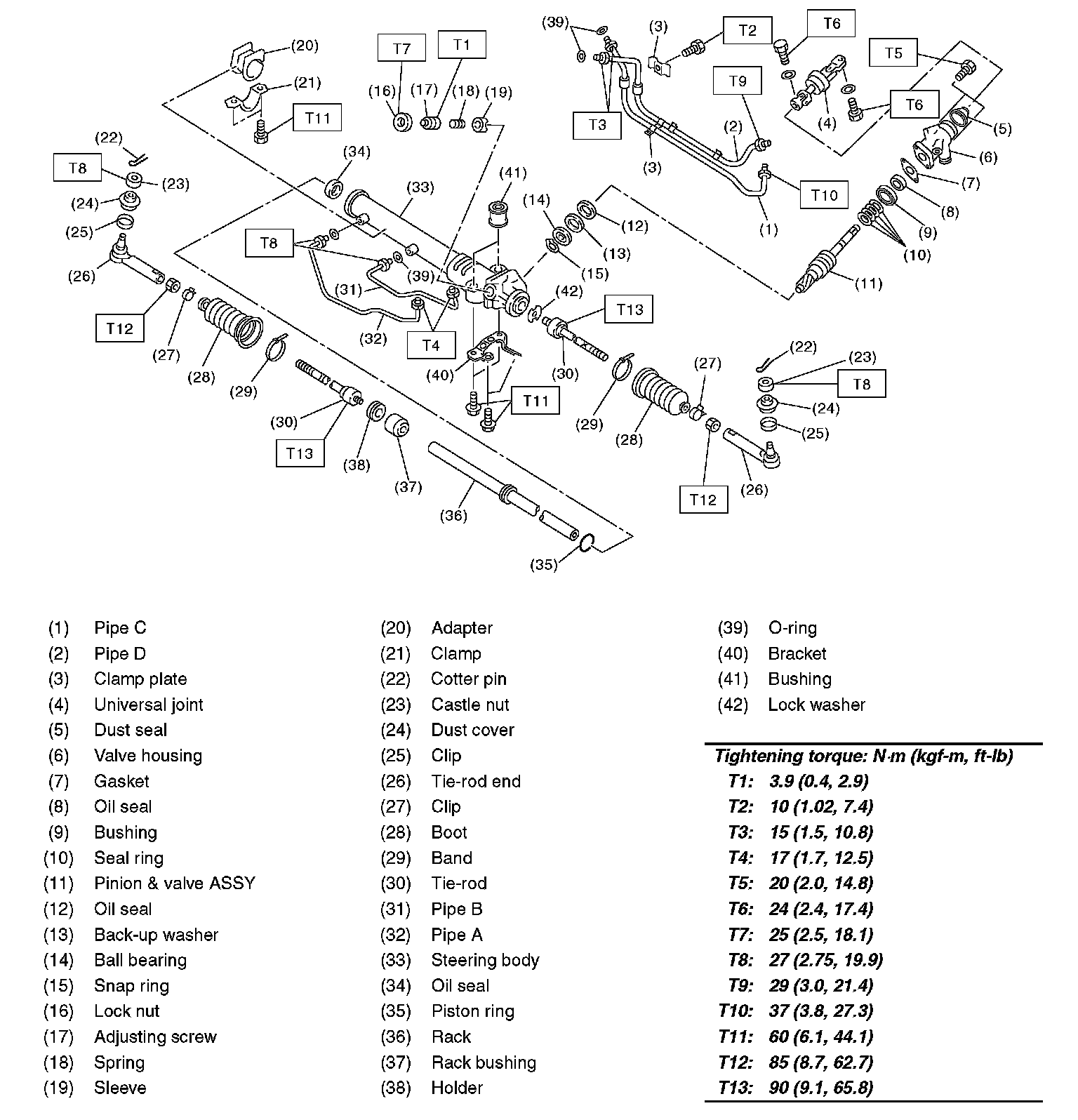

Gearbox
