R15-R213 & D33-D91 & AB31-AB33
R15-R213 & D33-D91 & AB31-AB33
Rear Wiring Harness and Rear Gate Cord

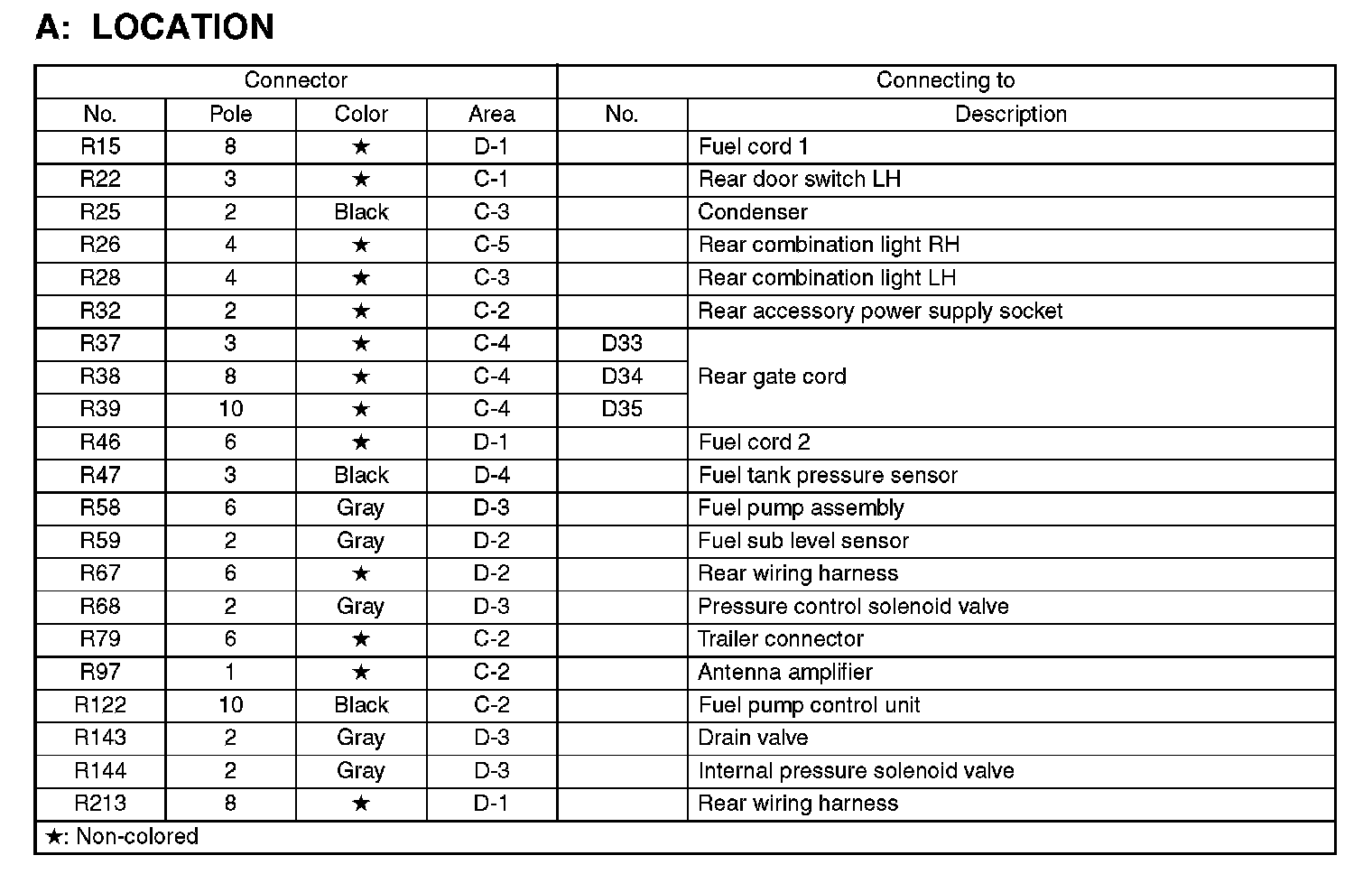

R15-R213:

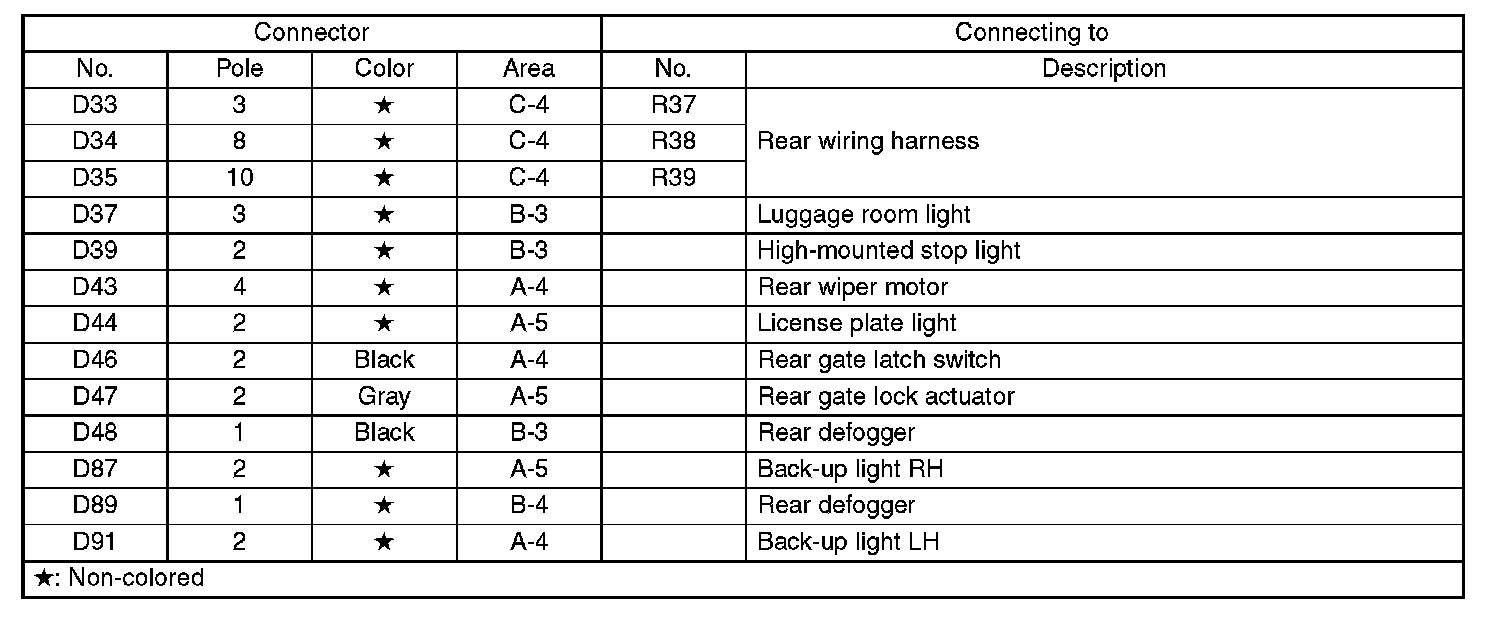

D33-D91:

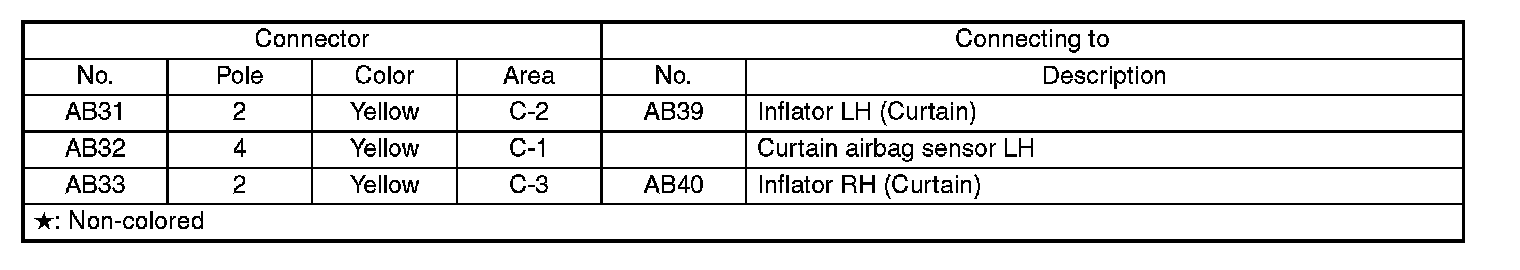

AB31-AB33:

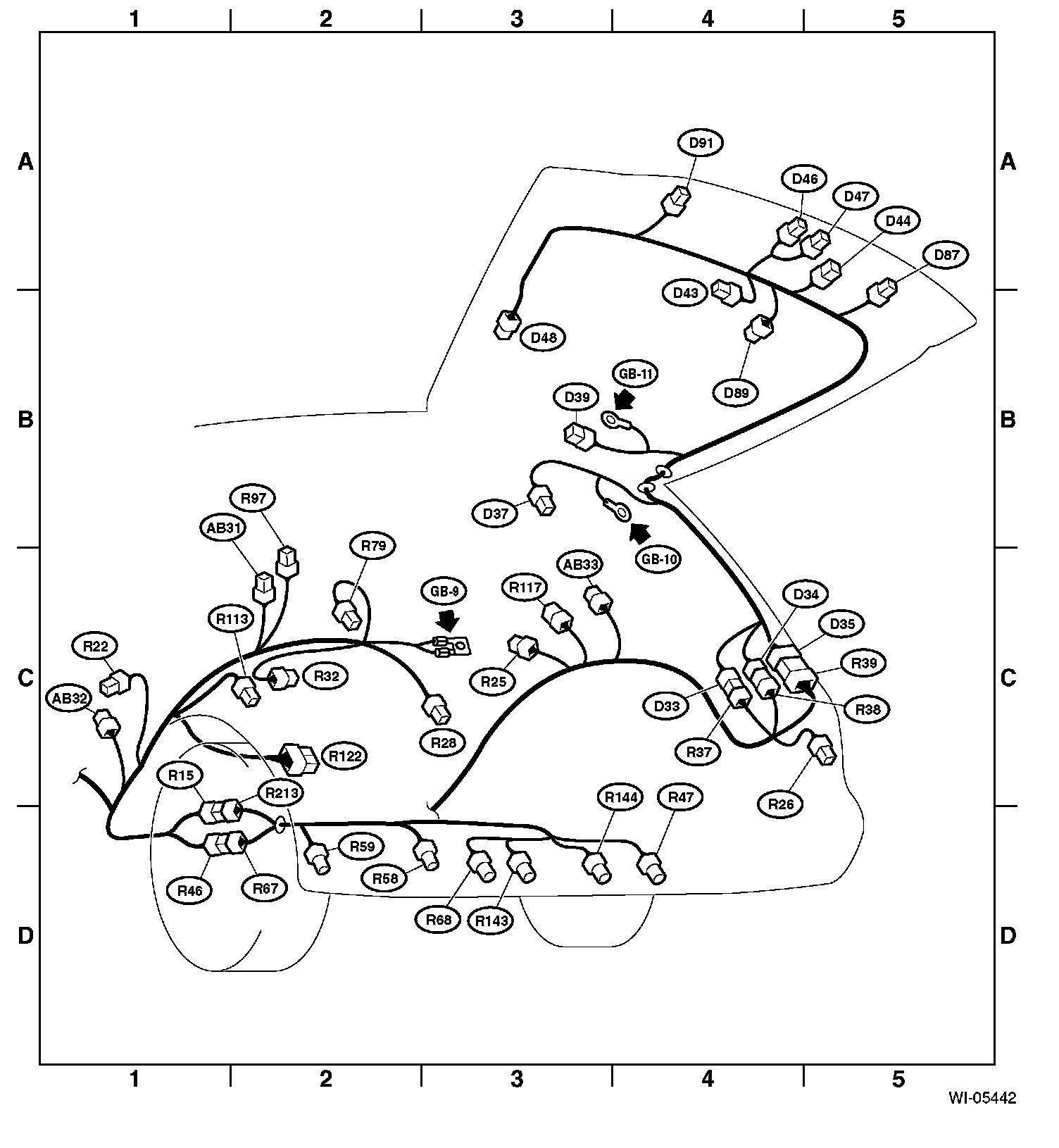

Area View:
