B31-B390 & AB1-AB35
Bulkhead Wiring Harness (In Compartment)

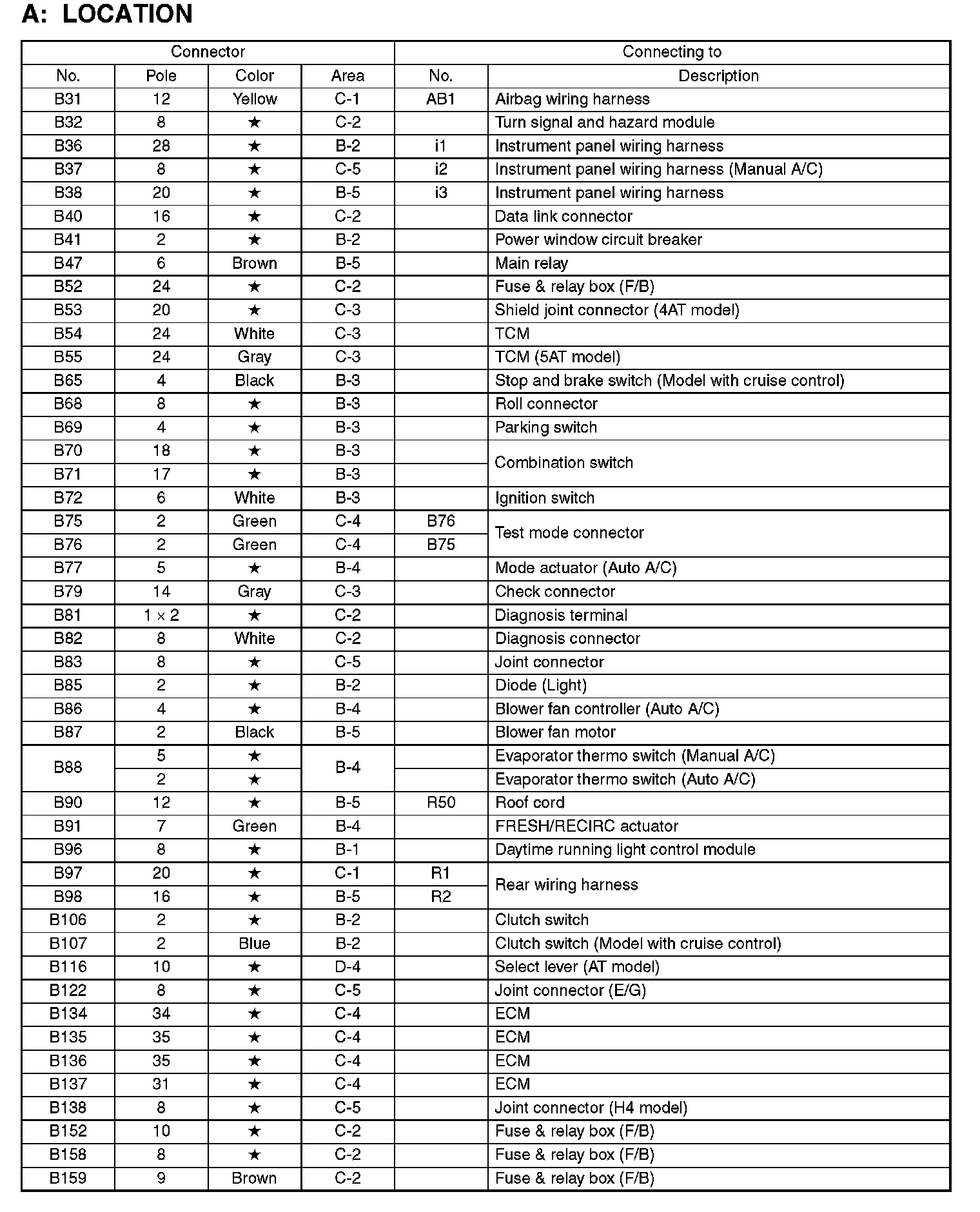

B31-B159:

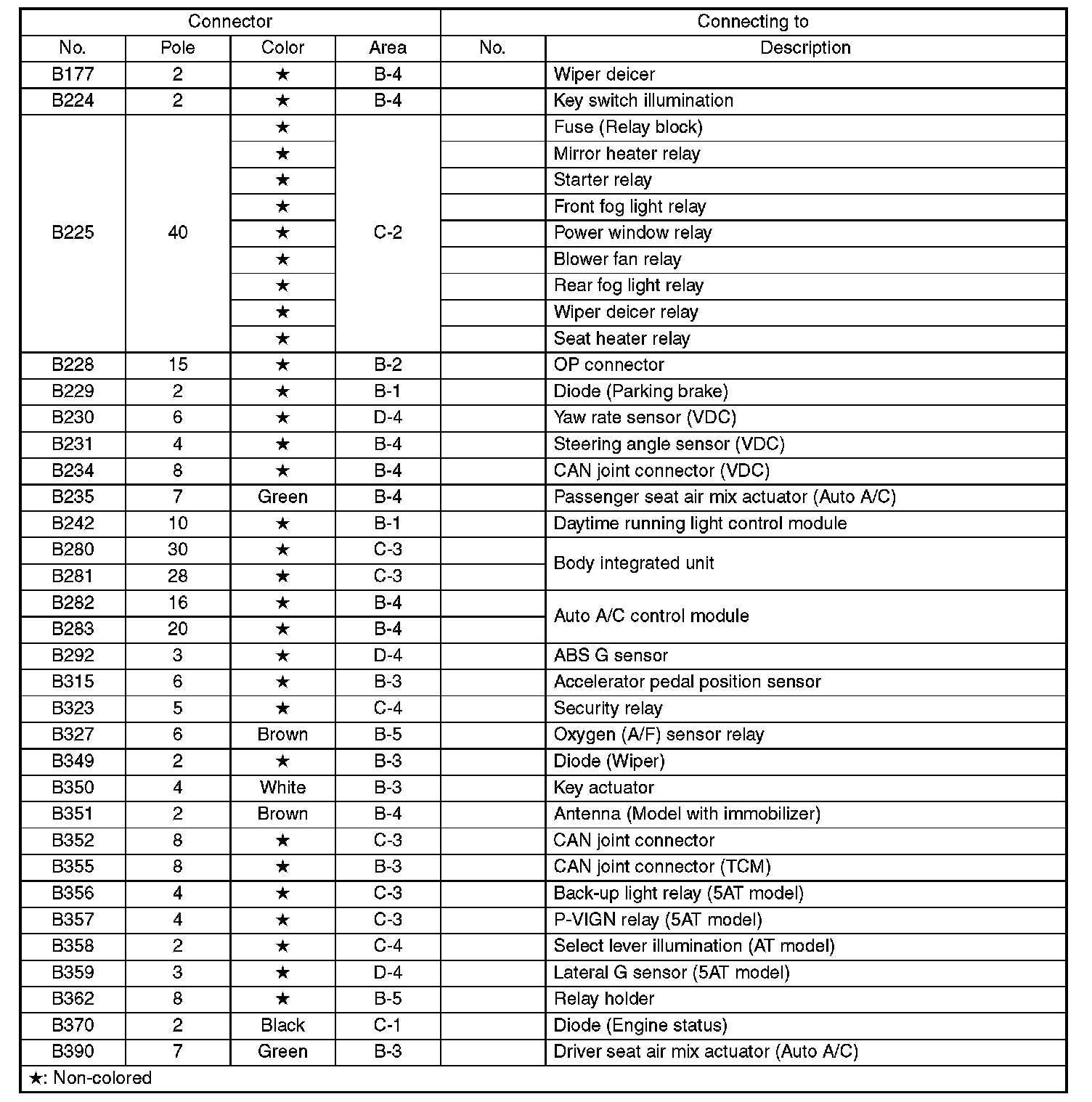

B177-B390:

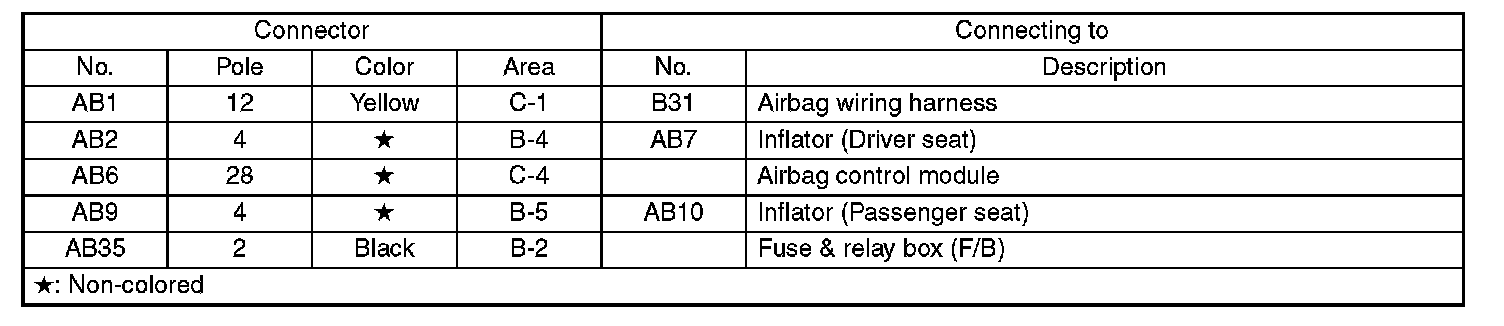

AB1-AB35:
Area View:
