B3-B395 & AB13-AB16

Bulkhead Wiring Harness (In Engine Compartment)

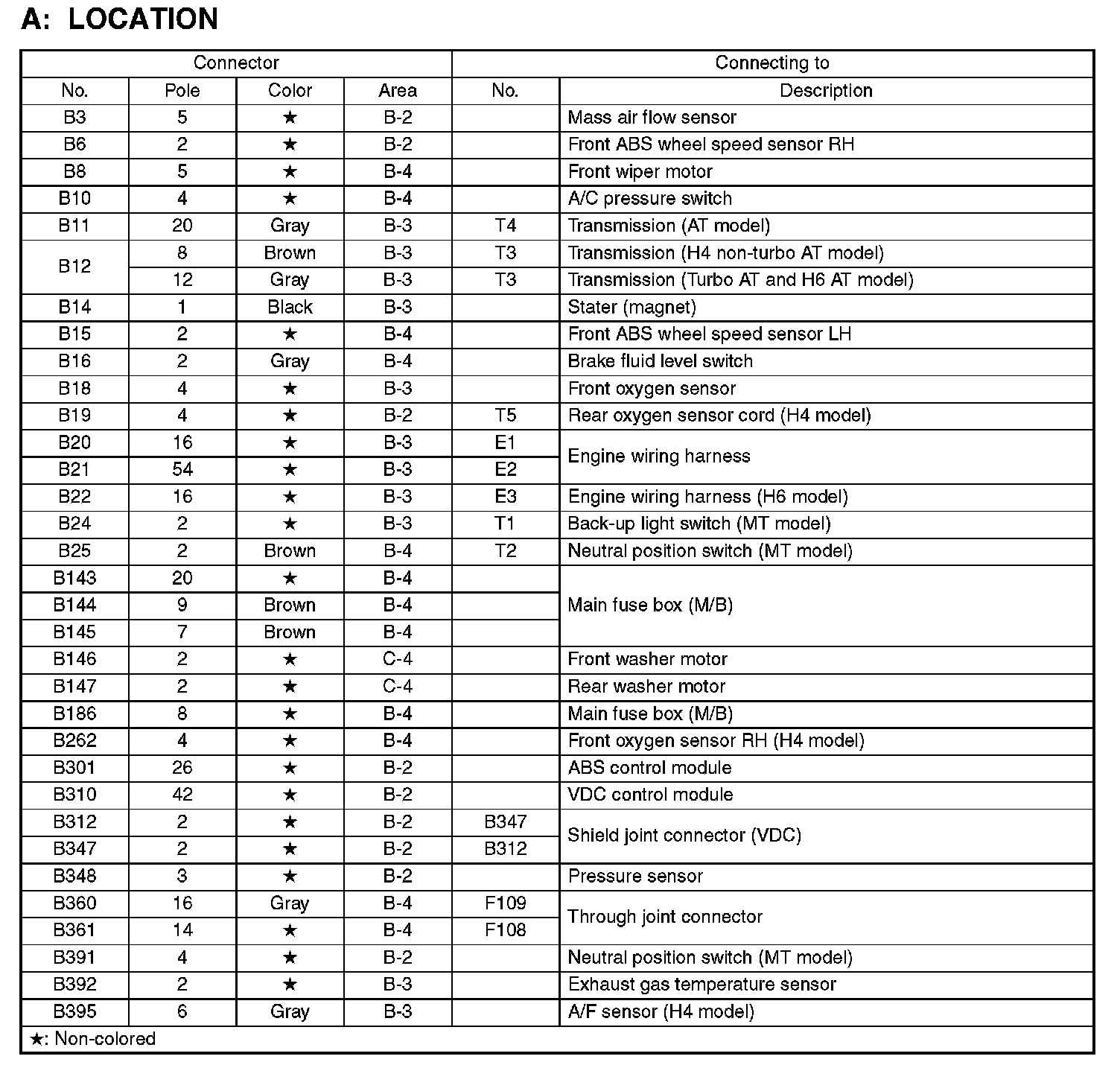

B3-B395:

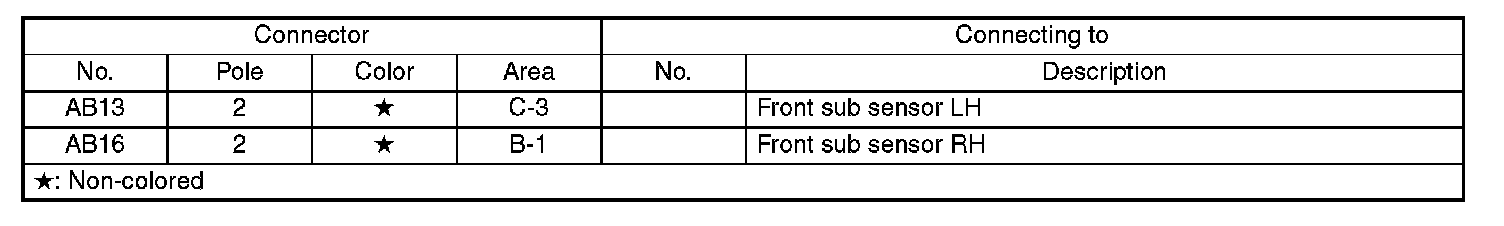

AB13-AB16:




Area View:
