Cruise Cancel Conditions Diagnosis

CRUISE CANCEL CONDITIONS DIAGNOSIS

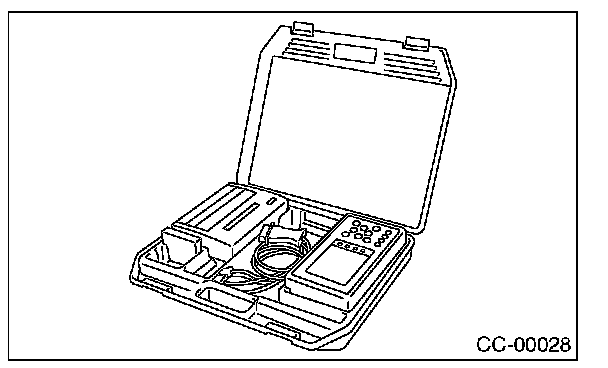

1. Prepare the Subaru Select Monitor kit.
2. Connect the diagnosis cable to Subaru Select Monitor.

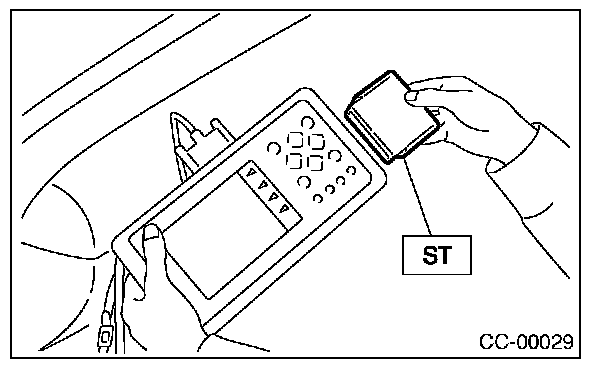

3. Insert the cartridge to Subaru Select Monitor.
4. Connect the Subaru Select Monitor to data link connector.

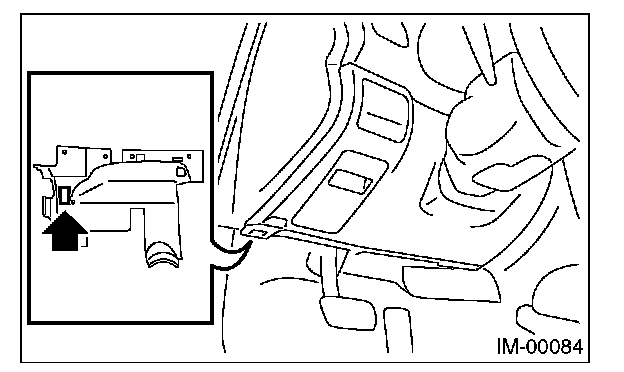

1. Data link connector is located in the lower portion of instrument panel (on the driver's side).
2. Connect the diagnosis cable to data link connector.
5. Start the engine and turn the cruise control main switch to ON.

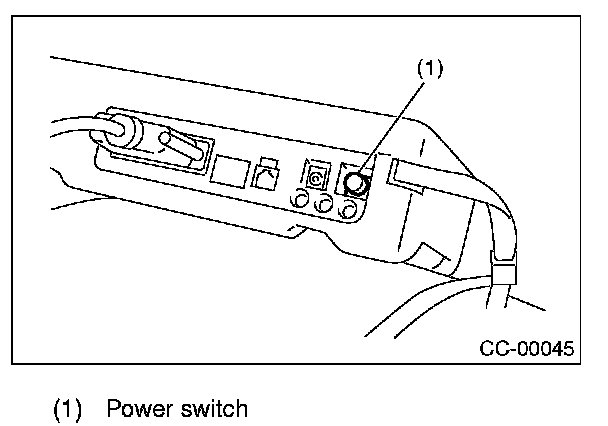

6. Turn the Subaru Select Monitor switch to ON.
7. On the "Main Menu" display screen, select the {Each System Check} and press the [YES] key. On the system selection display screen, select the {Engine} and press the [YES] key. Press the [YES] key after the information of engine type is displayed.
8. Drive vehicle at least 40 km/h (25 MPH) with cruise speed set.
9. If the cruise speed is canceled by itself (without doing any cancel operations), DTC will display on the screen when selecting the {Check Cancel Code} and pressing the [YES] key on the engine malfunction diagnosis display screen.

CAUTION:
- When performing diagnostics, observe the legal speed of the road.
- DTC will also displayed when cruise control cancel is effected by driver. Do not confuse.
- Put a co-worker in the vehicle to assist the diagnosis during driving.

NOTE: DTC will be cleared by turning ignition switch or cruise control main switch to OFF.
