Brake Pedal Assy: Testing and Inspection

INSPECTION

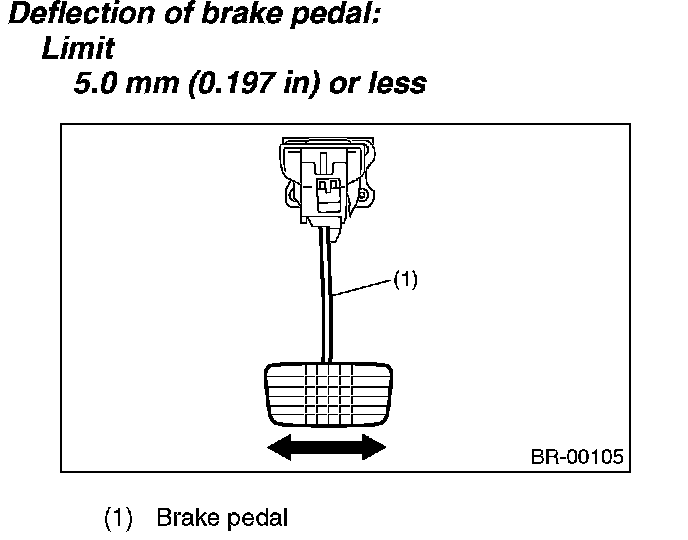

1. Move the brake pedal pads in the lateral direction with a force of approx. 10 N (1 kgf, 2 lbs.) to ensure pedal deflection is in specified range.

CAUTION: If excessive deflection is noted, replace the bushing with a new one.

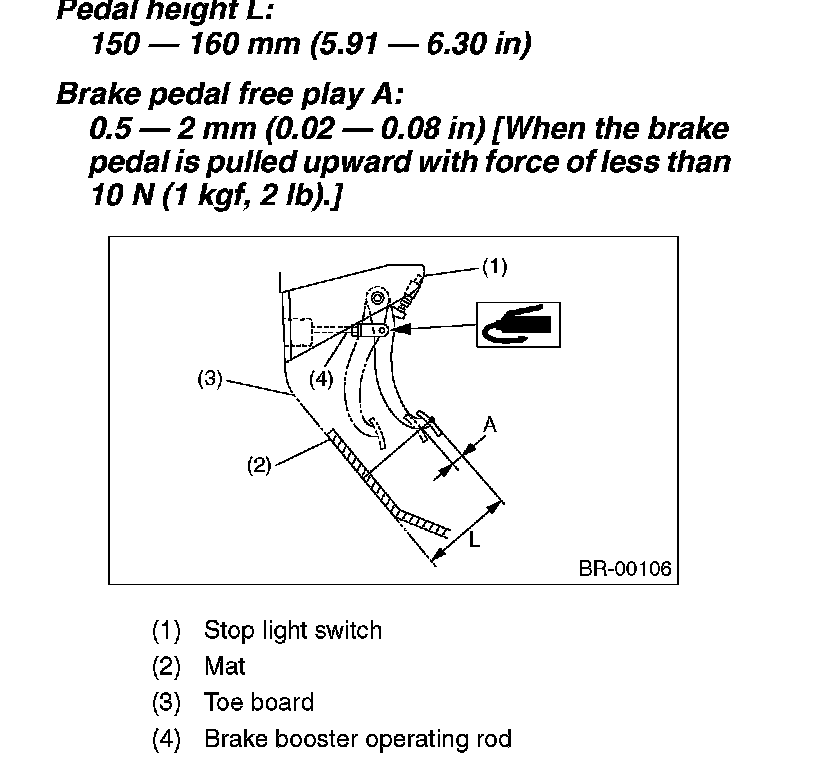

2. Check the position of pedal pad.
3. If it is not within the specified value, adjust it by adjusting the brake booster operating rod length.
