Initial Inspection - With VDC

The content of this article/image reflects the changes Identified in
TSB # 18-97-06
as of 01/04/06
and applies to 2005 Legacy and Baja models

CAUTION
SUPPLEMENTAL RESTRAINT SYSTEM "AIRBAG"
Airbag system wiring harness is routed near the ABS wheel speed sensor and VDCCM&H/U.

CAUTION:
^ All airbag system wiring harness and connectors are colored yellow. Do not use the electrical test equipment on these circuits.
^ Be careful not to damage the airbag system wiring harness when servicing the ABS wheel speed sensor and VDCCM&H/U.

INSPECTION
Before performing diagnosis, check the following items which might affect VDC problems.

BATTERY
Measure battery voltage and check electrolyte.
Standard voltage: 12 V or more
Specific gravity: More than 1.260

GROUND
Check the tightening torque of VDC ground (GB-7) bolt.
Tightening torque: 13 Nm (1.3 kgf-m, 9.6 ft. lbs.)

BRAKE FLUID
1. Check the brake fluid level.
2. Check the brake fluid for leaks.

HYDRAULIC UNIT
Check the hydraulic unit.
^ With brake tester
^ Without brake tester

BRAKE DRAG
Check for brake drag.

BRAKE PAD AND ROTOR
Check the brake pad and rotor.
^ FRONT
^ REAR

TIRE
Check the tire specifications, tire wear and air pressure.

PREPARATION TOOL

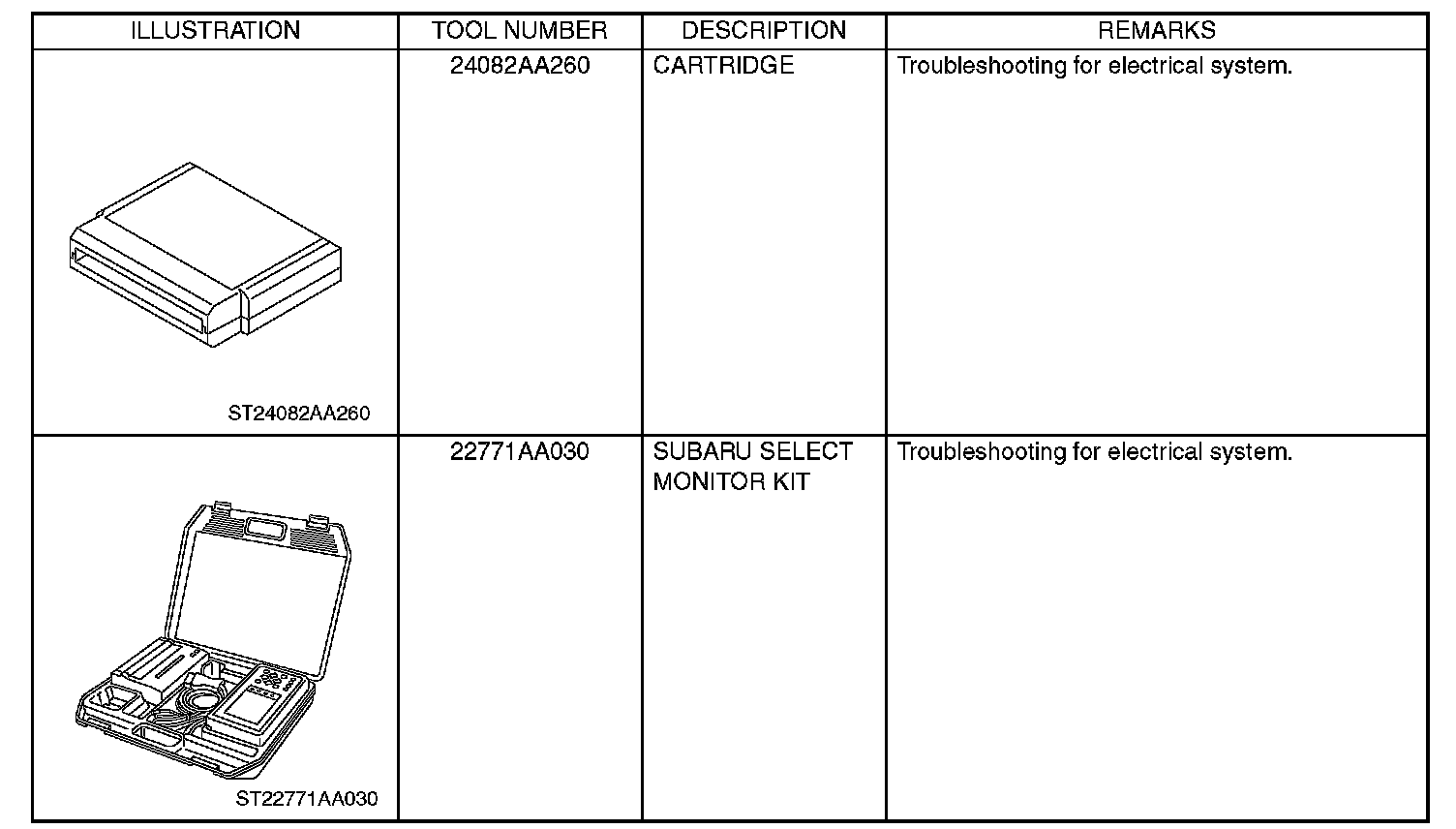

SPECIAL TOOL

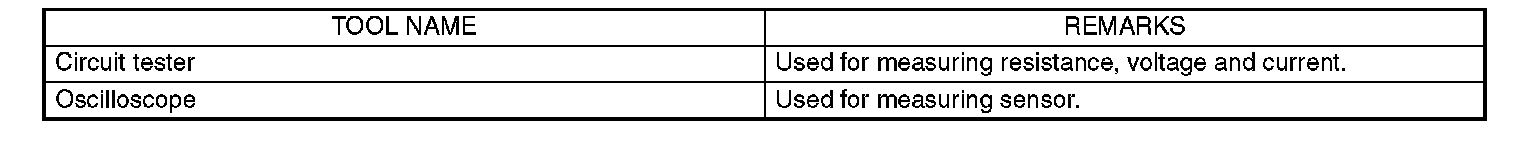

GENERAL TOOL
