Brake Warning Light Does Not GO Off

BRAKE WARNING LIGHT DOES NOT GO OFF
DETECTING CONDITION:
^ Brake warning light circuit is shorted.
^ Defective sensor/connector

TROUBLE SYMPTOM:
After starting the engine, the brake warning light is kept on though the parking lever is released.

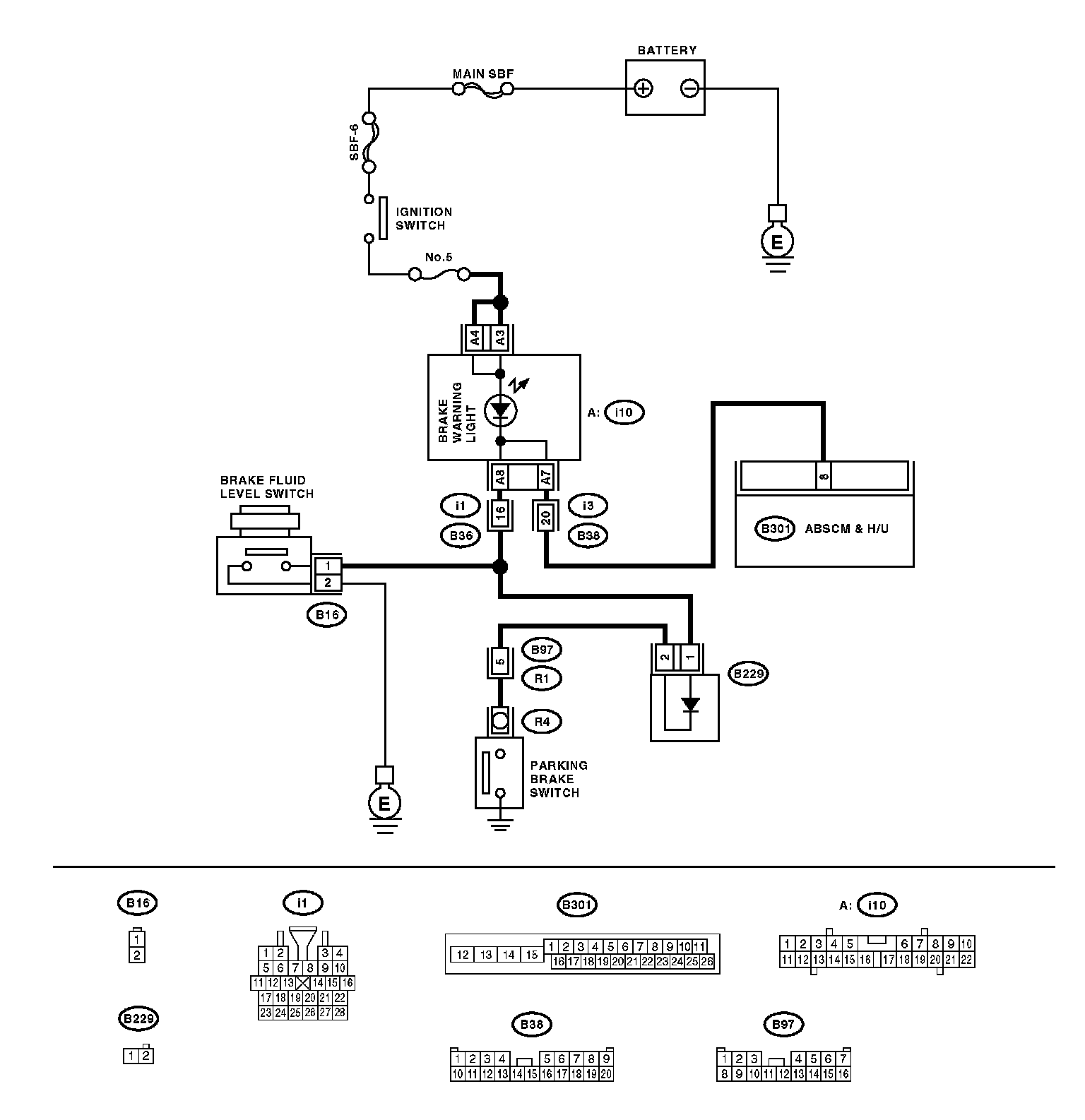

WIRING DIAGRAM
