Home >> Subaru >> 2005 >> Legacy F6-3.0L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Description and Operation >> Anti-Lock Brake System (ABS) >> Functions of Sensors and Actuators

Functions of Sensors and Actuators

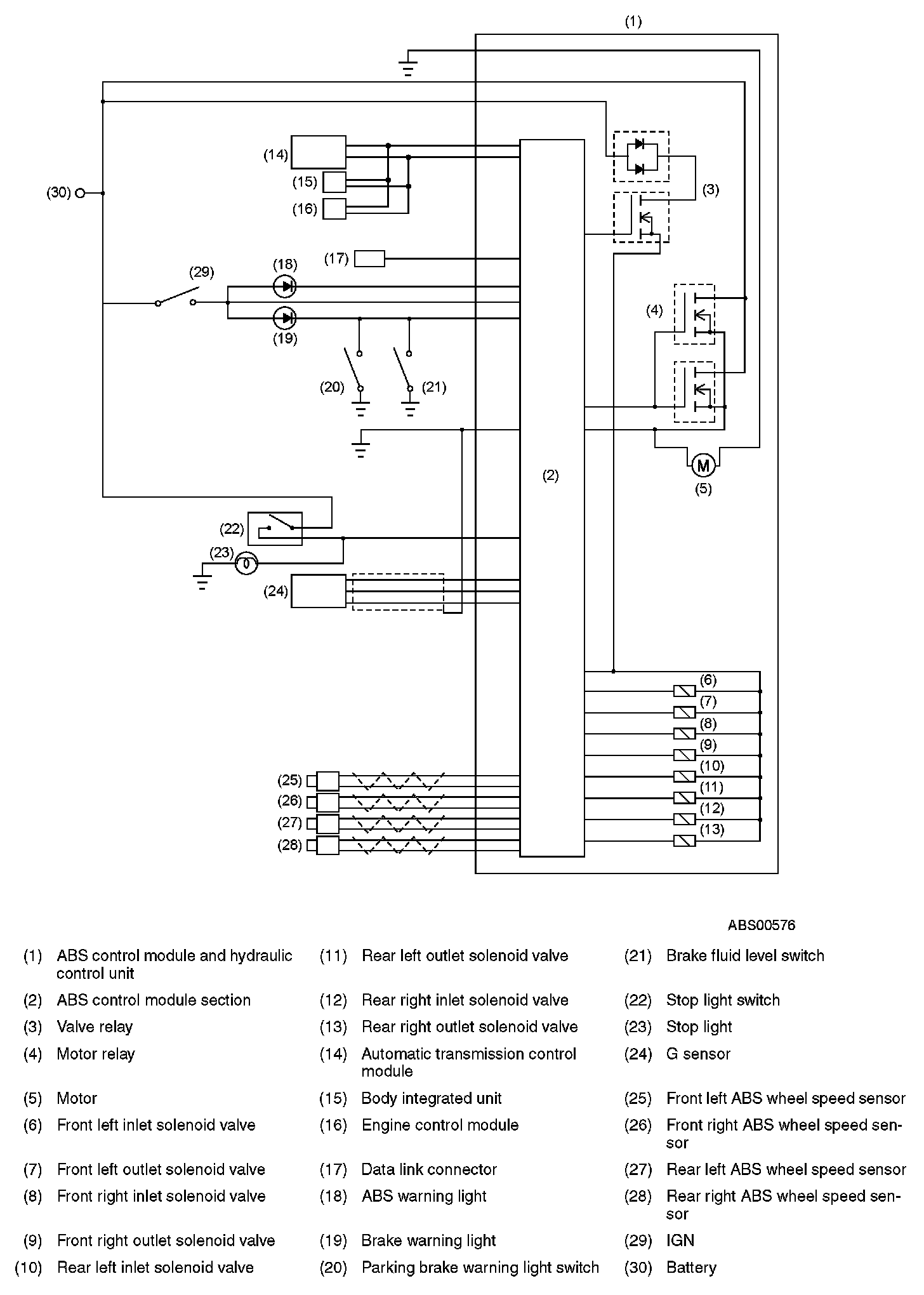

Functions Of Sensors And Actuators:

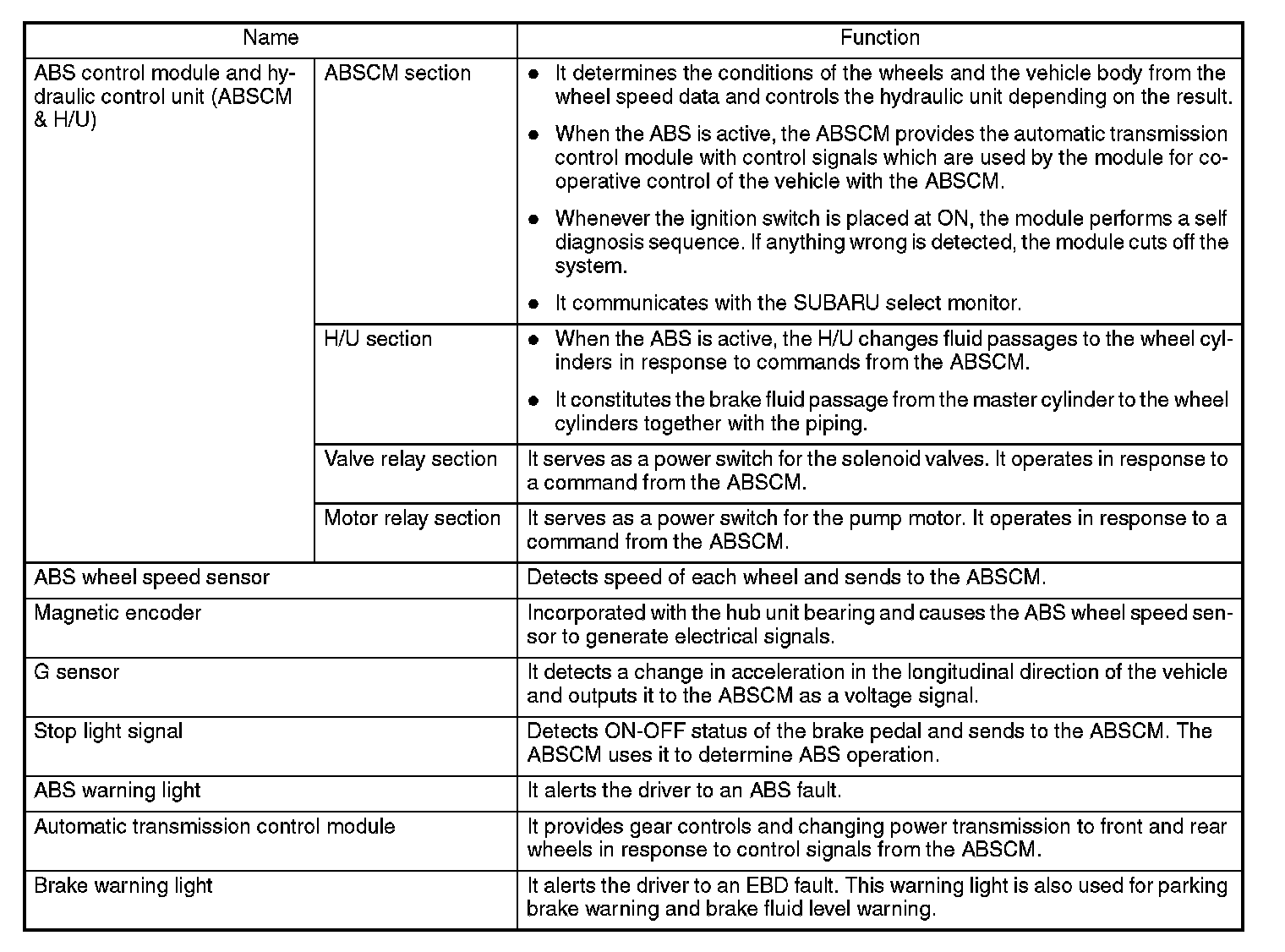

Functions Of Sensors And Actuators Part 2:
