Spoiler: Service and Repair

ROOF SPOILER

Roof Spoiler:

REMOVAL

1. Disconnect the ground cable from battery.
2. Remove the rear gate trim.
3. Disconnect the connector of the high mounted stop light and the washer hose of rear washer.
4. Remove the nut and plastic caps.

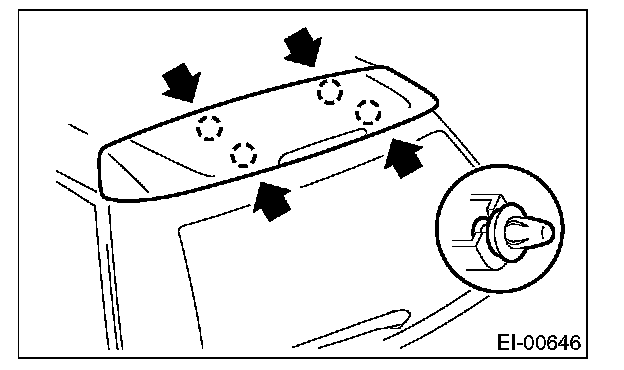

5. Remove the clips, and remove the roof spoiler.






INSTALLATION

Install in the reverse order of removal.

Tightening torque: 4.5 N.m (0.46 kgf-m, 3.32 ft-lb)
