Mud Flap: Service and Repair

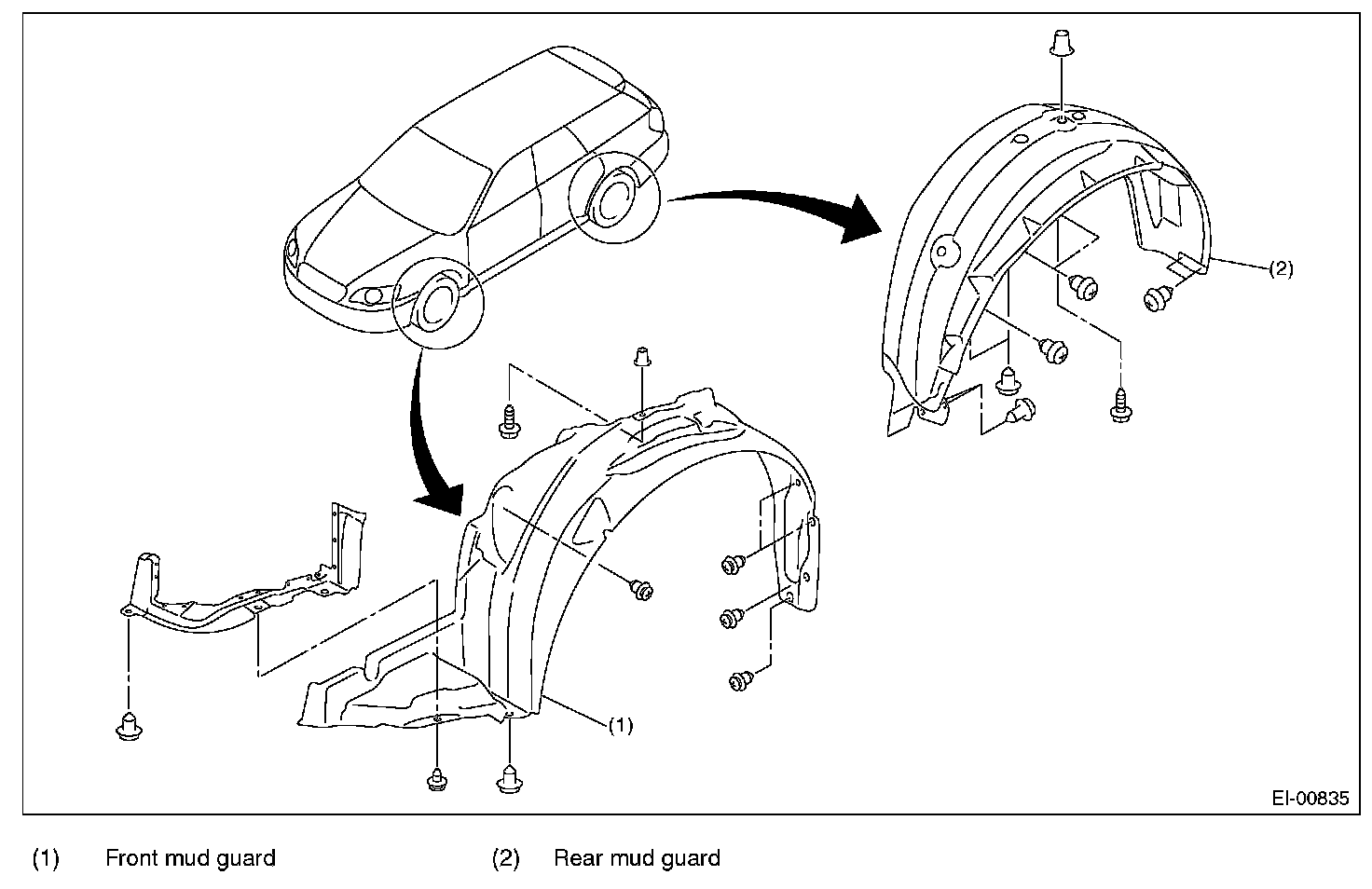

MUD GUARDMud Guard:
REMOVAL

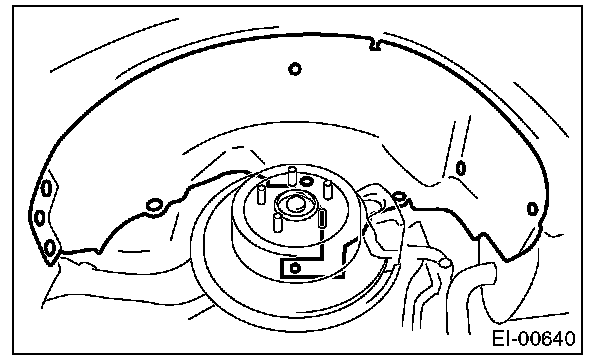

1. FRONT MUD GUARD
1. Jack-up the vehicle.
2. Remove the front wheels.
3. Loosen the screws and clips to remove mud guard.

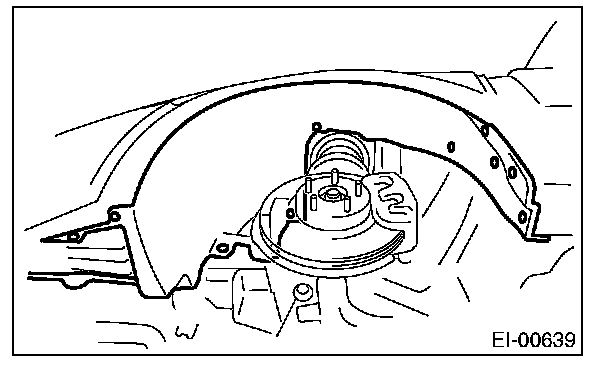

2. REAR MUD GUARD
1. Jack-up the vehicle.
2. Remove the rear wheels.
3. Loosen the screws and clips to remove mud guard.
INSTALLATION
1. FRONT MUD GUARD
Install in the reverse order of removal.
2. REAR MUD GUARD
Install in the reverse order of removal.
