Rear Seat

Rear Seat

DISASSEMBLY

1. SEDAN MODEL
1. Remove the rear seat.
2. Remove the headrest.




3. Remove the nuts, and then detach the trunk through assembly.




4. Remove the hog rings (A) on the rear side of backrest.

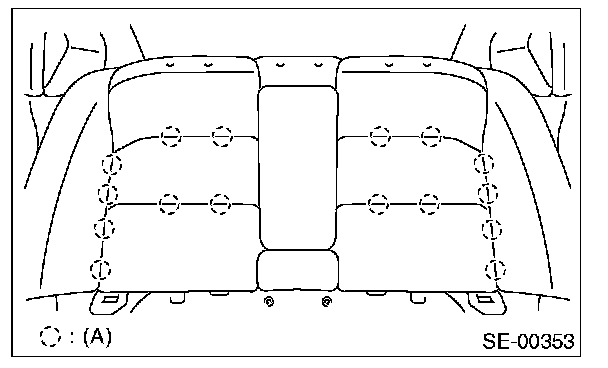

5. Remove the hog rings (A) on the front side of backrest.

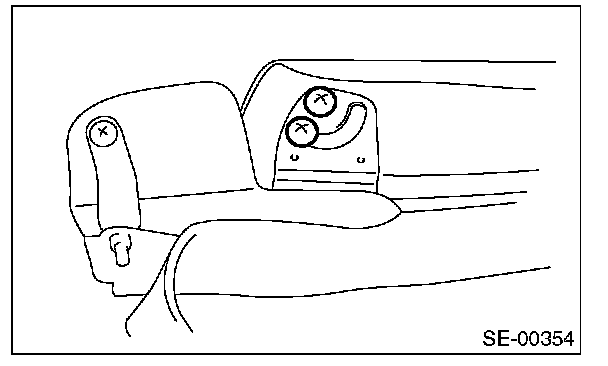

6. Remove both sides of armrest hinge covers, and loosen the screws to remove armrest.




7. Remove the hook, and then detach the center through cover.

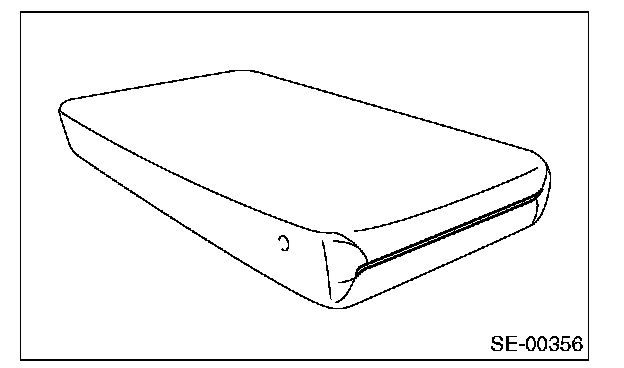

8. Remove the hook, and then remove the armrest cover.

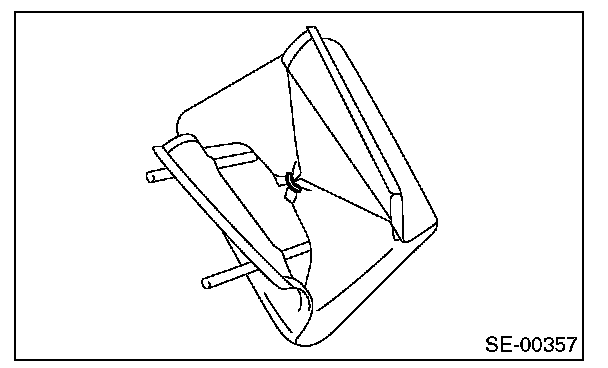

9. Remove the hook and hog ring, and then remove the headrest cover.

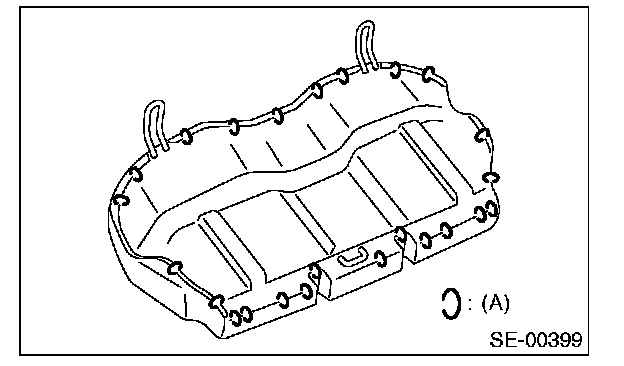

10. Remove the hog rings (A) on the rear side of seat cushion.




11. Remove the hog rings (A), and then remove the seat cushion cover.

2. WAGON MODEL
1. Remove the rear seat.

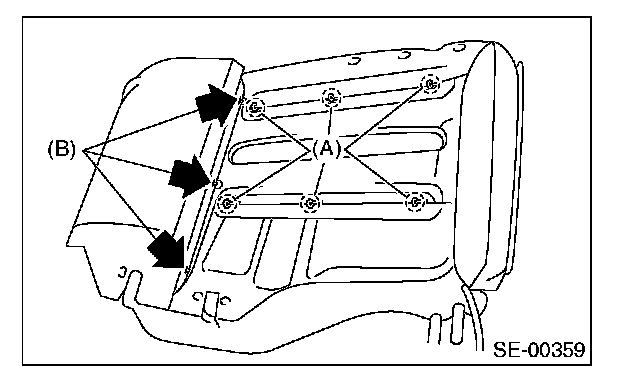

2. Remove the hooks at the bottom of backrest assembly LH, and then turn over the backrest cover to remove the hog rings (A) and hooks (B).

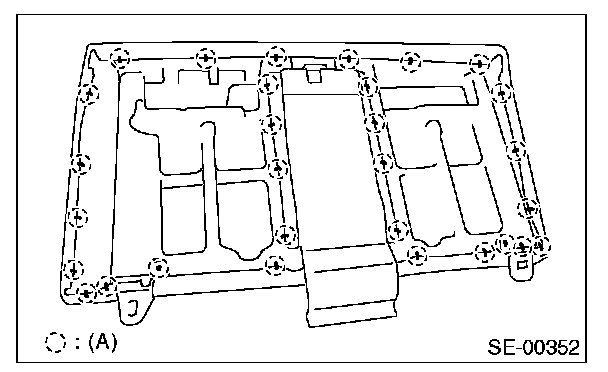

3. Remove the hog rings (A) on the front side of backrest, and then remove the backrest cover.

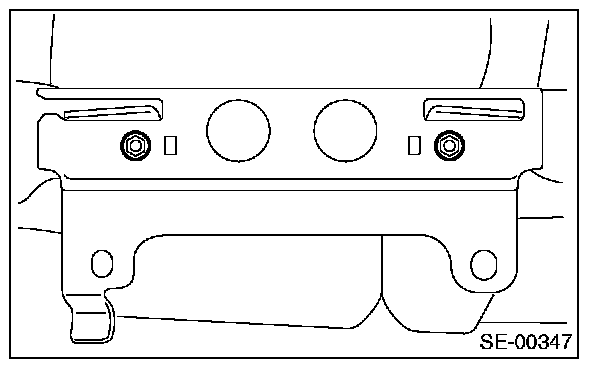

4. Remove the bolts, and then remove the backrest latch.

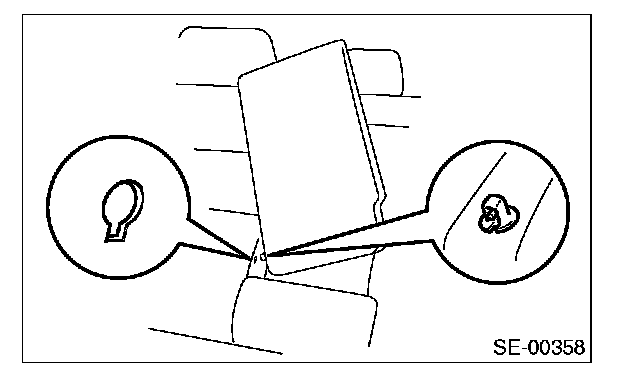

5. Loosen the screws to remove the armrest from backrest assembly RH.

NOTE: Armrest cannot be removed when backrest assembly RH side does not mate with armrest side pin position.

6. After this operation, refer to the step 2. to disassemble backrest assembly RH.

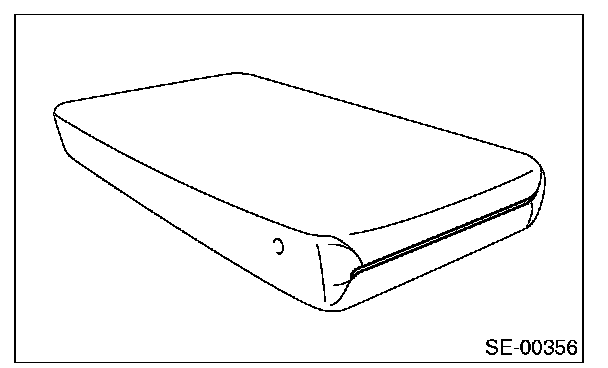

7. Remove the hook, and then remove the armrest cover.

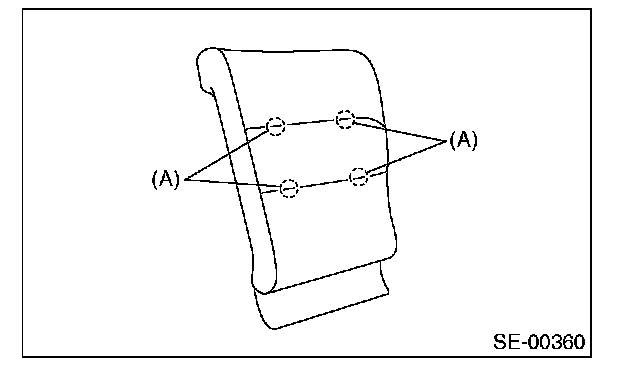

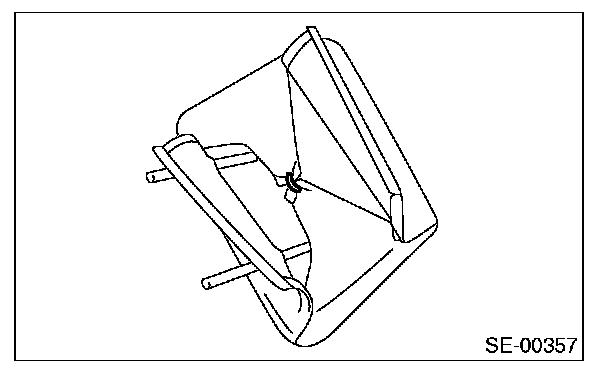

8. Remove the hook and hog ring, and then remove the headrest cover.

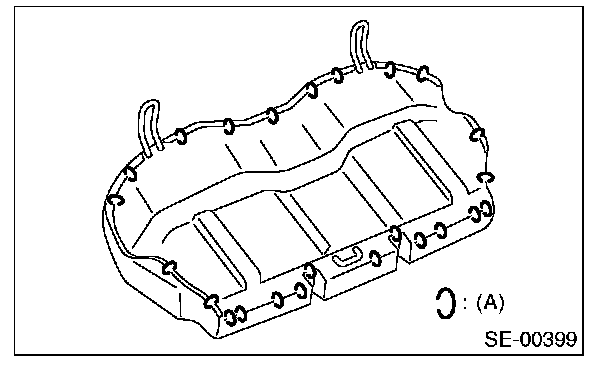

9. Remove the hog rings (A) on the rear side of seat cushion.

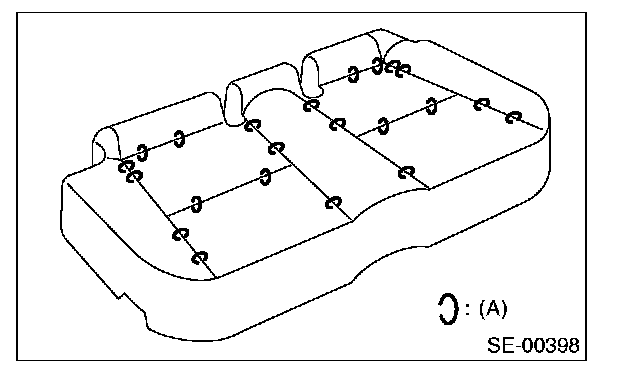

10. Remove the hog rings (A), and then remove the seat cushion cover.

ASSEMBLY
Assemble in the reverse order of disassembly.

NOTE:
- Do not contaminate or damage the cover.
- While installing the hog rings, prevent the seat from getting wrinkled.

CAUTION:
- Always use new hog rings.
- Secure the hog ring using hog ring pliers.
- Install the hog rings to the specified points securely and be sure to prevent backrest cover from wrinkle or twisting.
