Sun Shade: Service and Repair

Sunshade

REMOVAL

1. SEDAN MODEL
1. Remove the glass lid.

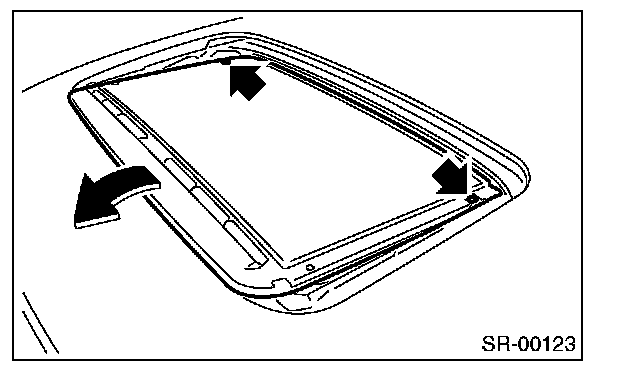

2. Loosen the TORX(R) bolts, and remove sunshade bracket (front).




3. Pull out the sunshade until sunshade bracket (rear) is shown, loosen the TORX(R) bolts, and remove sunshade.

2. WAGON MODEL
1. Remove the frame assembly.

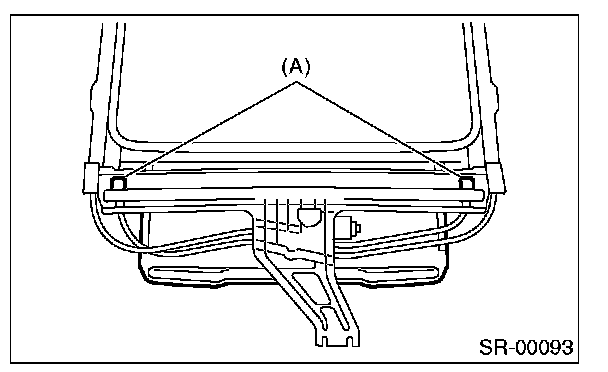

2. Remove the shade stopper (A) of sunshade.

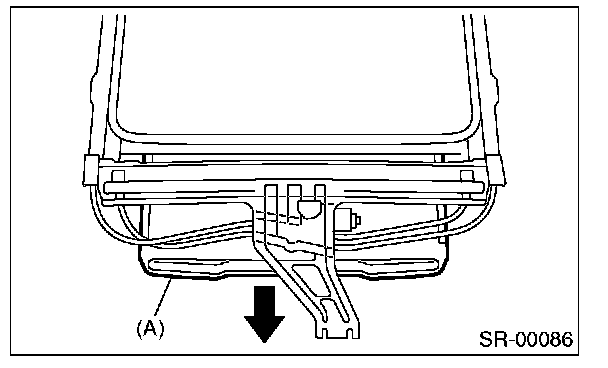

3. Pull out the sunshade (A) from sunroof frame.

INSTALLATION
Install in the reverse order of removal.
