Luggage / Roof Rack: Service and Repair

ROOF RAIL

Roof Rail:

REMOVAL

1. Remove the roof trim.
2. Remove the six nuts.

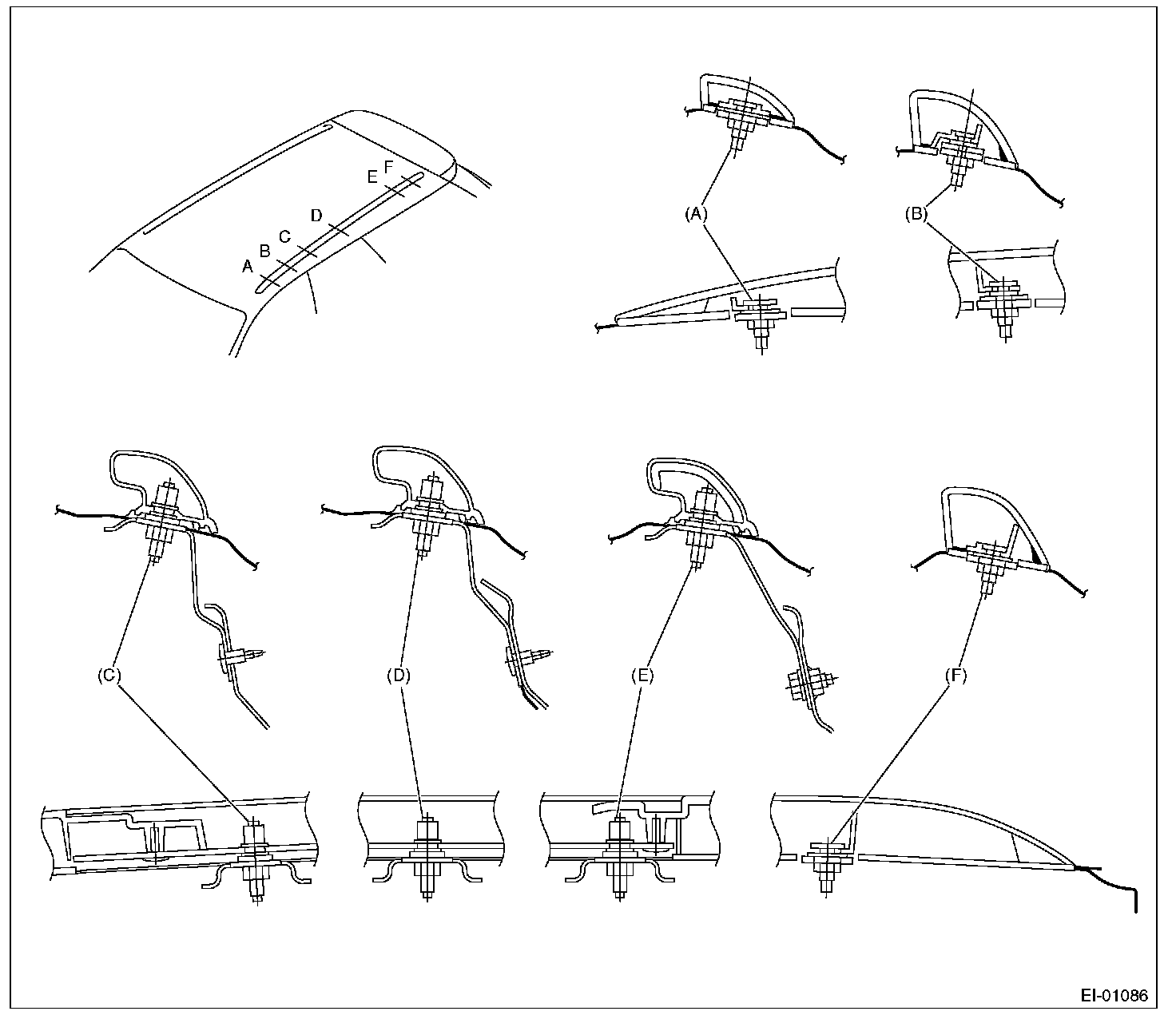

NOTE: Perform the removing procedures by referring to above illustration. (OUTBACK model)

INSTALLATION

Install in the reverse order of removal.

CAUTION: When removing or installing the roof rail, be careful not to scratch the body panel with the stud bolt of roof rail.

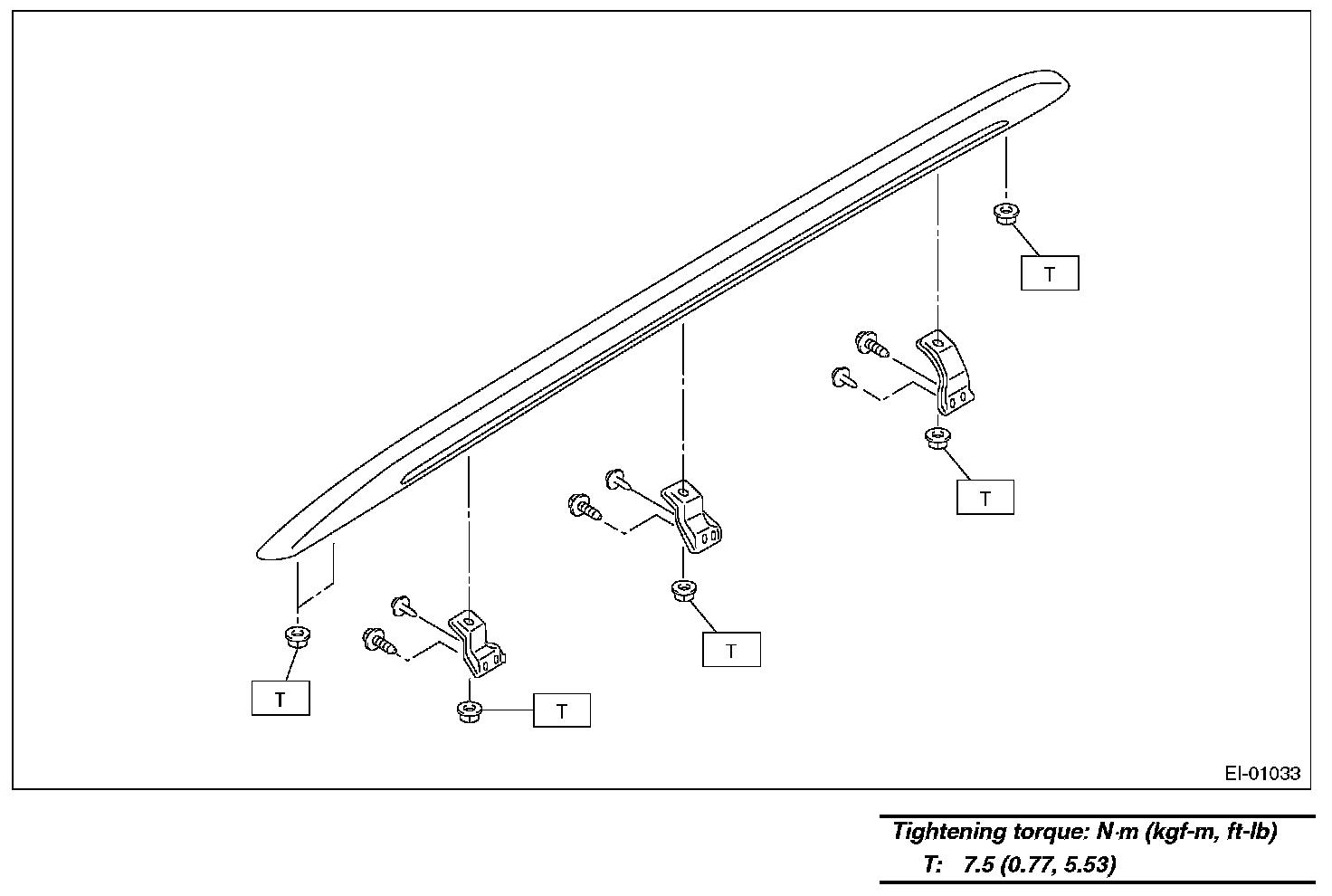

Tightening torque: 7.5 N.m (0.76 kgf-m, 5.53 ft-lb)
