Rear Door Lock Actuator

Rear Door Lock Actuator

REMOVAL
1. Remove the rear door latch & door lock actuator assembly.
2. Remove the pawl of rear door latch security cover, and then remove the cover.

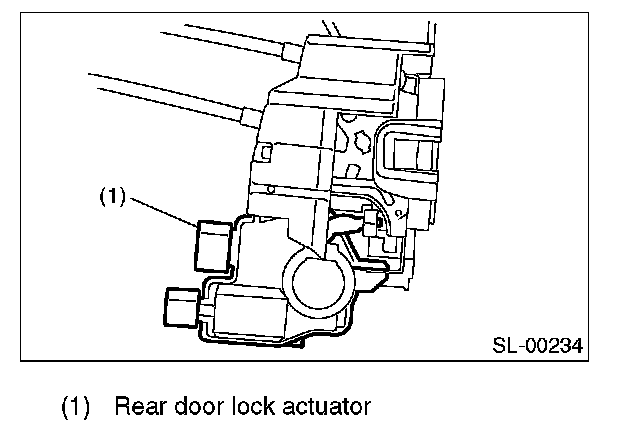

3. Remove the screw from the rear door latch and door lock actuator, and then remove the door lock actuator.

INSTALLATION
Install in the reverse order of removal.

NOTE: Make sure the lock works correctly after installation.
