Front Door Lock Actuator
Front Door Lock ActuatorREMOVAL
1. Remove the front door latch & door lock actuator assembly.
2. Remove the pawl of front door latch security cover, and then remove the cover.

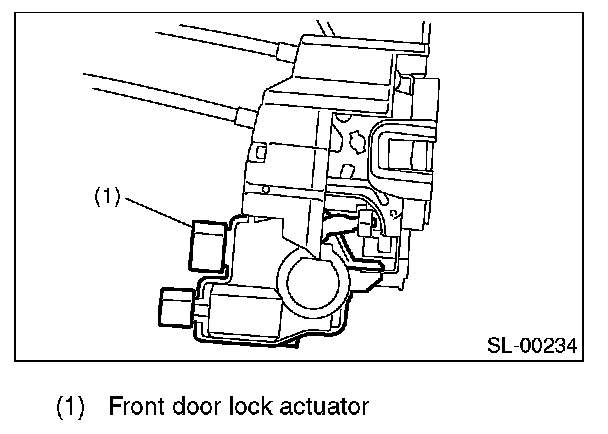

3. Remove the screw from the front door latch and door lock actuator, and then remove the door lock actuator.
INSTALLATION
Install in the reverse order of removal.
NOTE: Make sure the lock works correctly after installation.
